Area Alarm Rough-In Assembly
The Area Alarm Rough-In Assembly consists of the rough-in assembly (R),
Breakout P.C. Board (N), mounting brackets (BN), and power supply. The power
supply includes the following (see figure 1-7 on page 1–17):
• Ground terminal (O)
• Terminal block (P)
• Power supply covers (S, T)
• On/Off switch (U)
• Fuse holder (V)
• Transformer (Q)

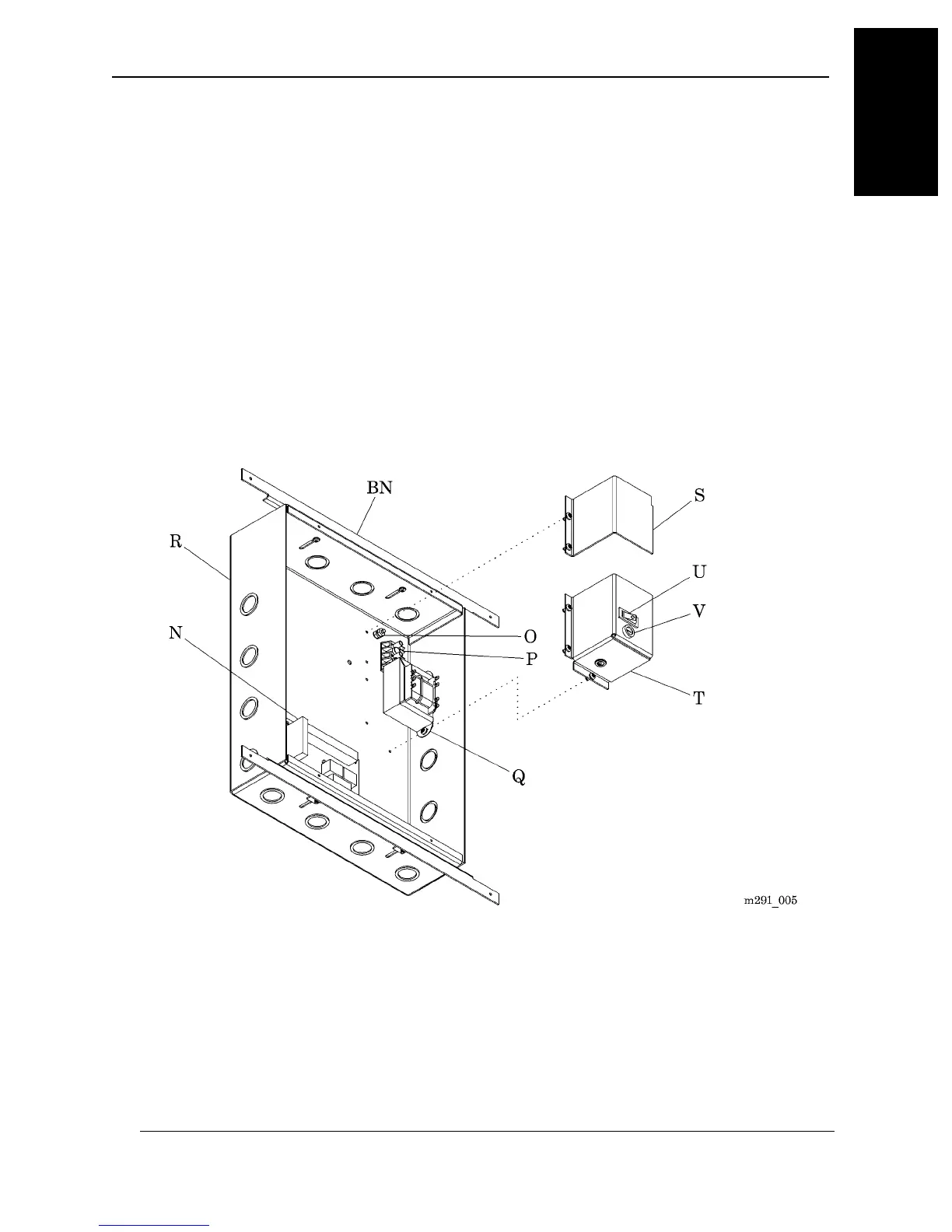

Figure 1-7. Area Alarm Rough-In
NOTE:
The mounting brackets are not attached when they are shipped. Attach them prior
to installation. For more information about installing an original alarm network,
refer to the MedPlus TotalAlert® Alarm Network Installation Instructions.
