Features
Chapter 1: Introduction
The Local Alarm contains the following components (see figure 1-10 on page
1–20):
• Front panel (AI)
• Back box (AH)
• Power supply covers (AK, AP)
• On/Off switch (AL)
• P.C. board (AJ)
• Buzzer (AS)
• Buzzer wiring assembly (AR)
• Transformer (AT)
• Terminal block (AQ)
• Ground terminal (AN)
• Power supply wiring assembly (AO)
• Fuse holder (AM)

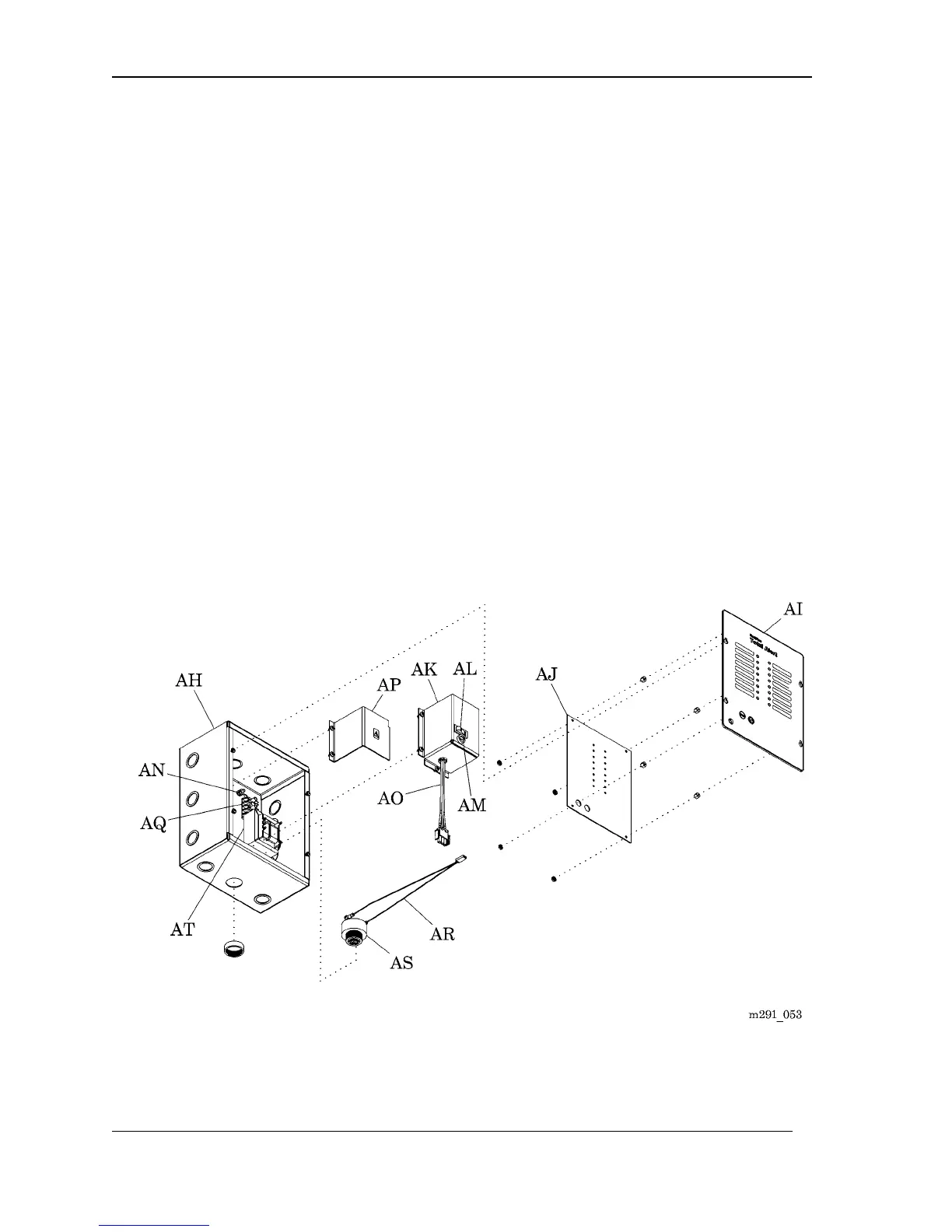

Figure 1-10. Local Alarm Components
NOTE:
The Local Alarm is not available as a MedPlus TotalAlert® Alarm Network
Conversion Kit.
