Product overview
CP39xx18 Version: 3.6

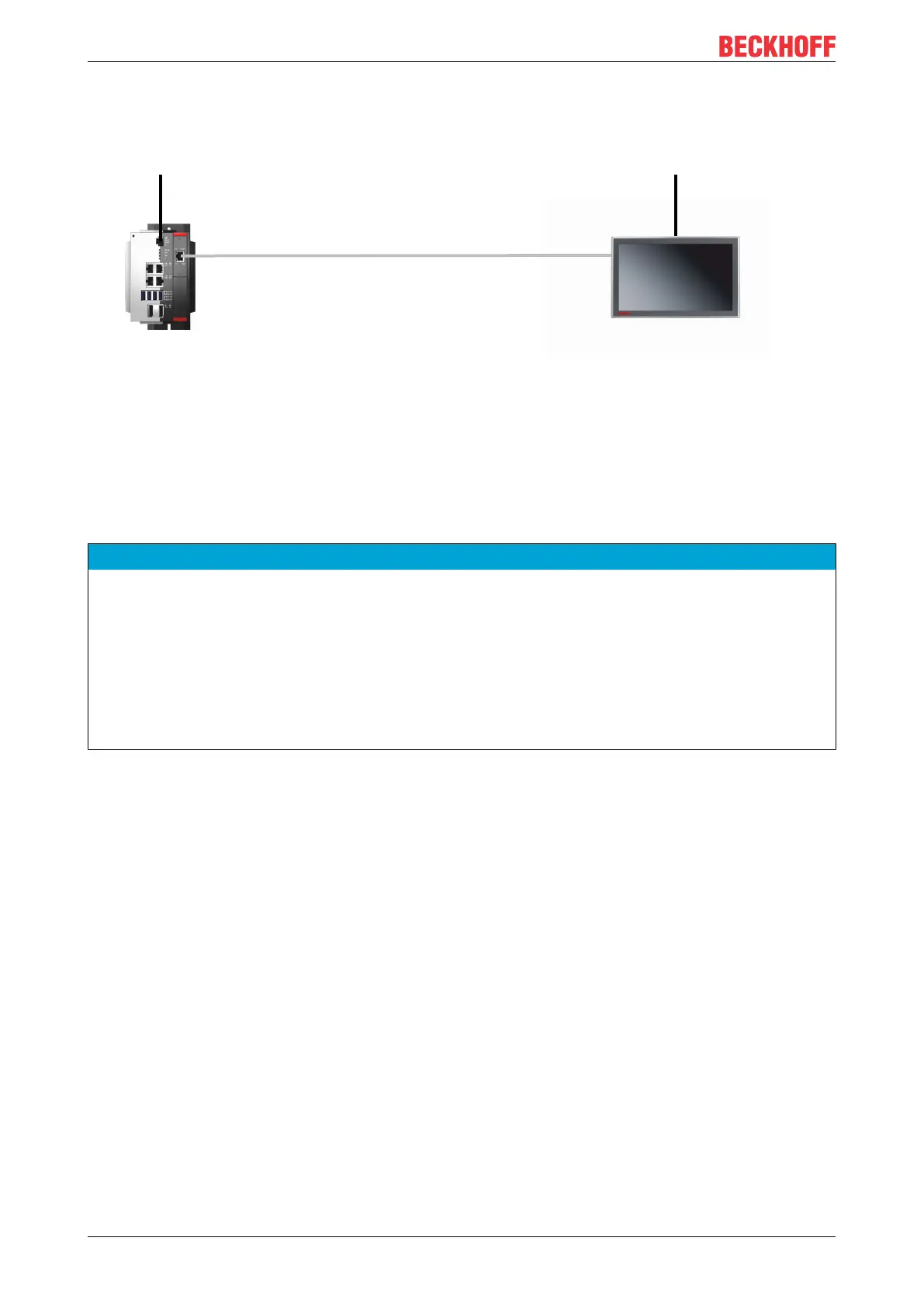

CP-Link4 is available as a Two Cable Display Link on an industrial PC with PCIe module. The control panel
can be connected directly to the industrial PC via the module. USB 2.0 (100Mbit/s) and DVI are transmitted
together via a CP-Link 4 cable. An additional power supply is required for CP39xx-0010 (see Fig. 13).
24 V
24 V
CAT.6
A
(100 m)
C6032 mit CP-Link 4 Modul
CP29xx-0010
CP39xx-0010
CP-Link 4 (100 m)
Fig.13: CP39xx-0010_CP-Link 4
CP-Link 4 with transmitter box
If the industrial PC is not equipped with a PCIe module, a transmitter box is required for connecting a
CP39xx-0010.
The CU8802 transmitter boxes (Two Cable Display Link) and CU8803 (One Cable Display Link) are
available for this purpose.
NOTE
Material damage due to double voltage connection with CU8803
Connecting an additional power supply to the voltage socket of the control panel can cause damage to the
panel.
• Power the control panel exclusively via One Cable Display Link through the CU8803 transmitter box.
• When using the CU8803 transmitter box, never connect an additional power supply to the voltage socket
of the control panel.
• Only connect an additional power supply to the voltage socket of the control panel when using the
CU8802 transmitter box.
When installing the CP39xx-0010 with the CU8802 transmitter box, the industrial PC is connected to the
transmitter box via USB and DP/DVI. The transmitter box is then connected to the control panel via the CP-
Link 4 connection of the transmitter box using a CP-Link 4 cable. USB and DVI are transmitted together via
this cable. An additional power supply is required for the control panel (Two Cable Display Link). Figure 14
shows the wire connection to the CU8802-00x0.
