Commissioning
CP39xx 29Version: 3.6
1
1
1
1

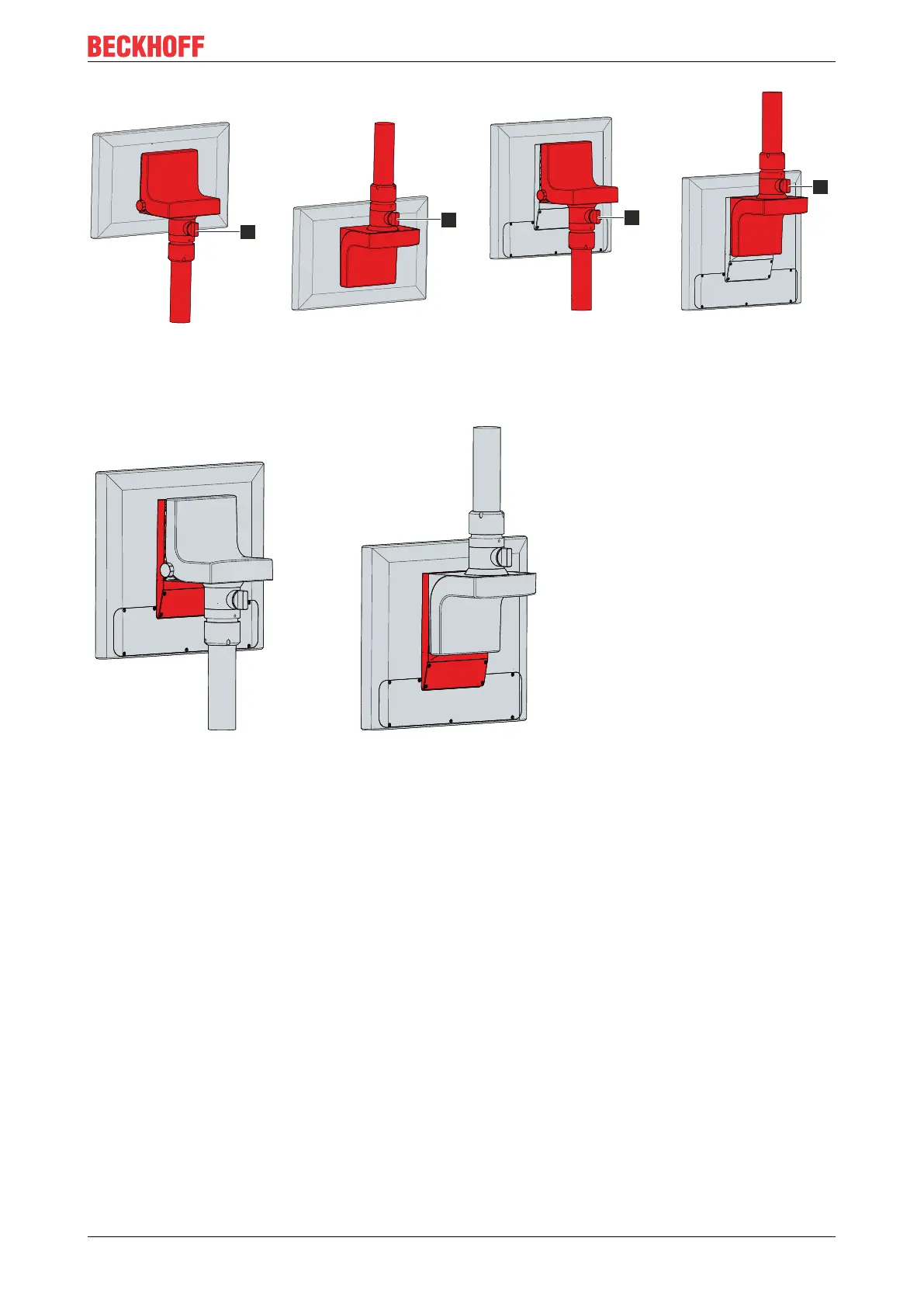

Fig.19: CP39xx_Mounting arm adapter options
For a control panel with push button extension, a cable channel between the panel and the mounting arm
adapter is included in the ordering option (see Fig. 20).
Fig.20: CP39xx_cable channel
The cables for the C9900-G02x push button extension run through the mounting arm tube into the mounting
arm adapter and further through the cable channel into the push button extension. You have to open both
the cable channel and the push button extension in order to route the cables.
To open the cable channel, follow the steps below as shown in Figure 21:
1. Remove the four Torx TX10 screws from the cable channel (section A).
2. Remove the cover of the cable channel (section B).
