Commissioning
CP39xx 37Version: 3.6
5. Rotate the strain relief rail back over the cable (section C).
6. Tighten the Torx TX20 screw again (section D).
7. Fasten the cable to the strain relief rail with cable ties.
The figure shows the steps, taking the CP39xx-0000 as an example. The procedure is the same regardless
of the product version.
A B
C
D

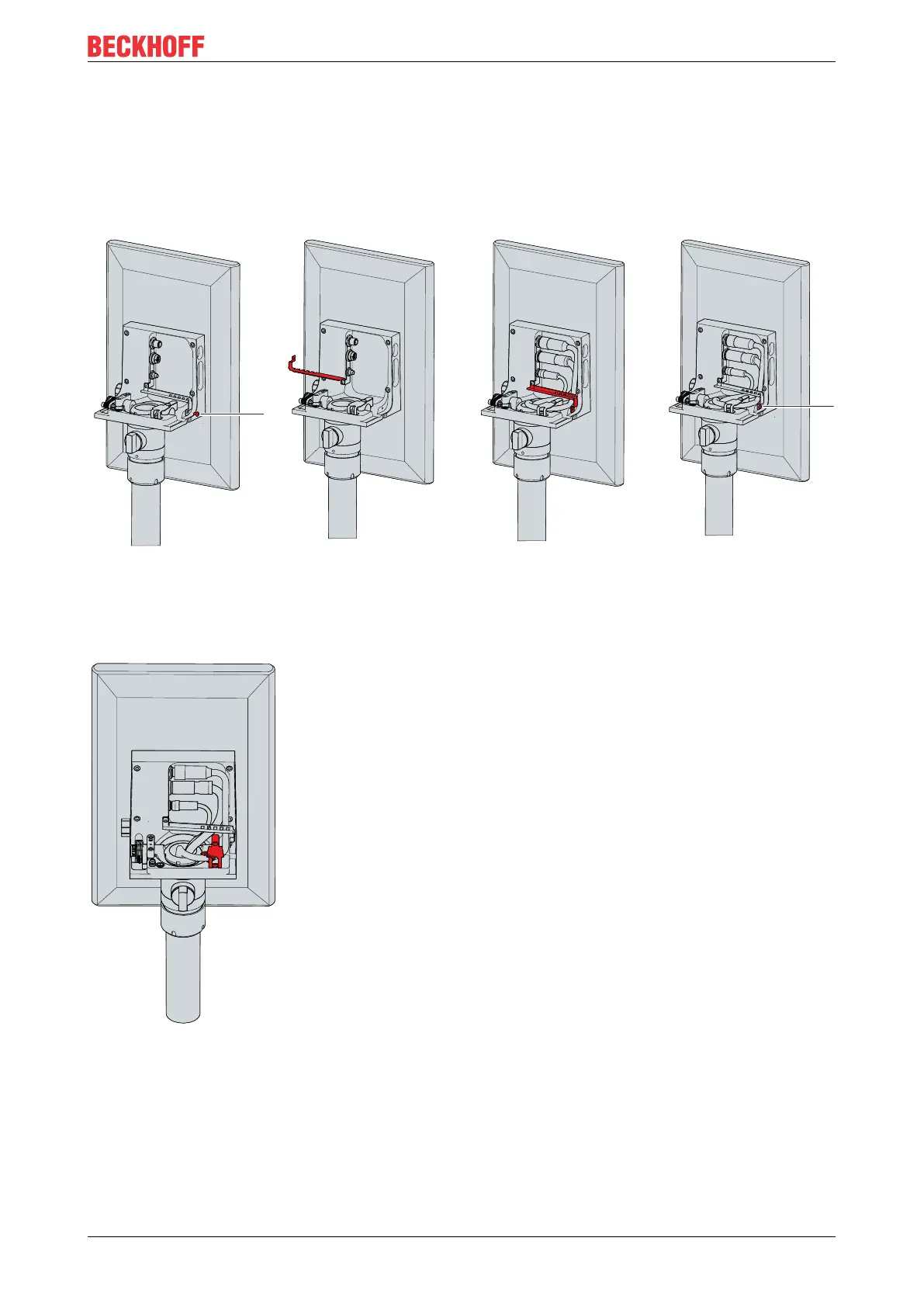

Fig.29: CP39xx_cable routing procedure
In the case of the CP39xx-0000 you also have to fasten the power cable that lies further to the outside to a
strain relief plate in addition to the strain relief rail (see Fig. 30). To do this, pull the cable through under the
plate and then fasten the cable to the plate with cable ties.
Fig.30: CP39xx-0000_power supply cable strain relief plate
The cables pass through the mounting arm tube into the connection compartment of the mounting arm
adapter.
