Product overview

CP39xx 19Version: 3.6

0000

CU8802-0000

CP-Link 4 (100 m)

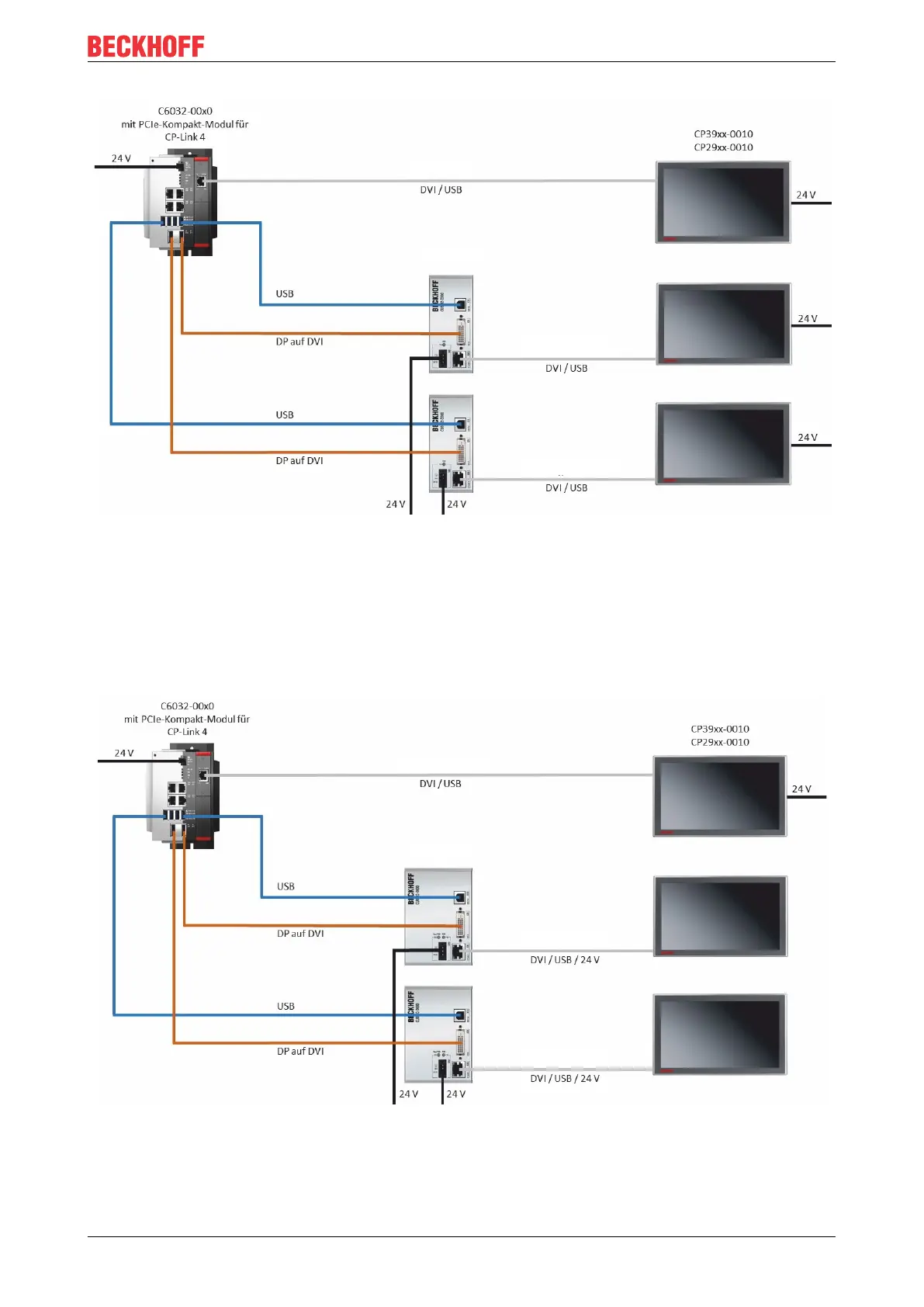

Fig.14: CP39xx-0010_CP-Link 4, CU8802-00x0

When installing the CP39xx-0010 with the CU8803 transmitter box, the industrial PC is likewise connected to

the transmitter box via USB and DP/DVI. The transmitter box is then connected to the control panel via the

CP-Link 4 connection of the transmitter box using a CP-Link 4 cable. With this box, USB, DP/DVI and power

supply can be transmitted together via the cable (One Cable Display Link). Be careful not to connect an

additional power supply to the CP39xx-0010 to avoid property damage. Figure 15 shows the wiring with the

CU8803.

CU8803-0000

CP-Link 4 (100 m)

Fig.15: CP39xx-0010_CP-Link 4, CU8803

The following ordering options are available for the transmitter boxes:

• CU8802-0000: DVI-to-DVI cable included in the box
