GB Sound speed controller SFR-1
06.02.2019 BEIER-Electronic 79
For #1 and #2, e.g. a crane arm will turn slowly to the right and left and at positions
#3 and #4 quickly.

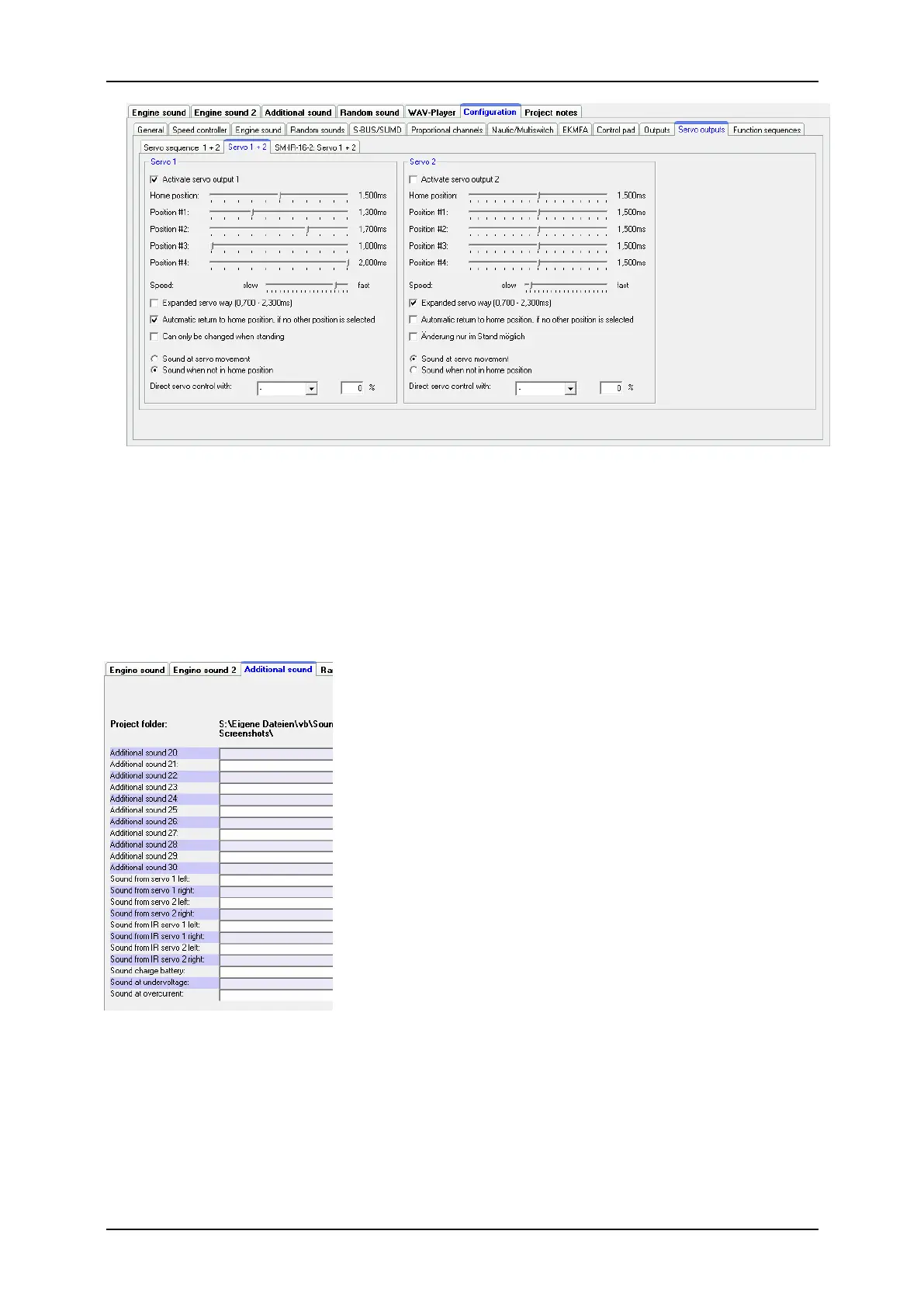

With "Speed" the acceleration (slow or fast) can be set from neutral (motor off) to the
positions #1 - #4 (maximum rotation speed).
The motor can be operated proportionally with the direct servo control by a
proportional channel.
If the field "Sound when not in home position" is
activated, the sound will be played as soon as the motor
runs. The motor sound must be set in the sound slots
under “Additional sounds“ and „Sound from Servo 1
left“, „Sound from servo 1 right“, etc.
Finally the motor movement (forward/backward) must
be started. This can be done via a proportional channel
or a nautic/multiswitch. If the servo outputs are
activated, they can be used in the function selection.
If the movement is activated/deactivated with a proportional channel, we
recommended to use the function under "In position (static)".
