GB Sound speed controller SFR-1
80 BEIER-Electronic 06.02.2019

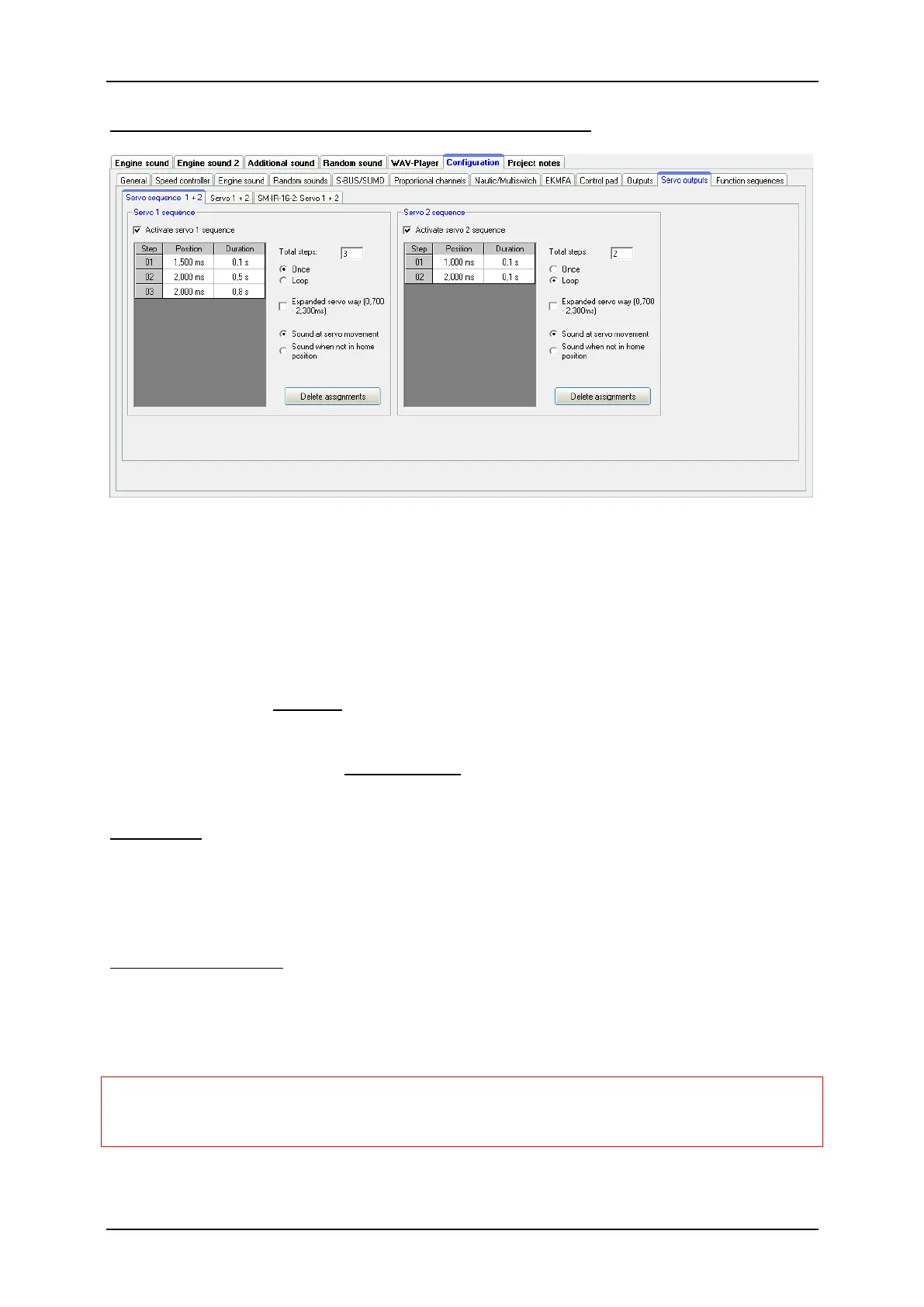

Configuration - Servo outputs - Servos sequence 1 + 2
For both servo outputs you can program a time controlled flow sequences. A
sequence may consist of up to 10 steps.
For every step a servo position (1,000 - 2,000ms) must be assigned, that indicates
the starting position of the servo. Additional the time must be defined for the servo
movement from the current postion to the next step/position. Both values gives the
speed of the servo movement.
The duration of the last step determines the time, the servo needs to move to the
position of the first step.
The position of step 1 is the home position of the servo. Every sequence starts and
ends from this position.
Once/Loop
Here it can be configured whether the servo sequence is only run once after it has
been started (like a recoil of a tank during a cannon shot) or if the sequence
continues in a loop (like a windshield wiper), as long as the start of the sequence is
still present.
Expanded servo way
The normal pulse width for a standard servo is from 1.000 to 2.000 ms. Sometimes it
is desirable to increase this area, and thus the travel distance too. When enabled,
the servo positions can now be set between 0.700 - 2.300 ms.
Attention!
Not all servos are suitable for this enhanced servo range and may get
damaged! Therefore, use this function only with special care.
