Diagnosis
A diagnosis function is integrated in the SFR-1 to control different functions, values
and features.
There are two different types of diagnosis:
1. Diagnosis with datacable (live)
2. Diagnosis with SD card (recorded)

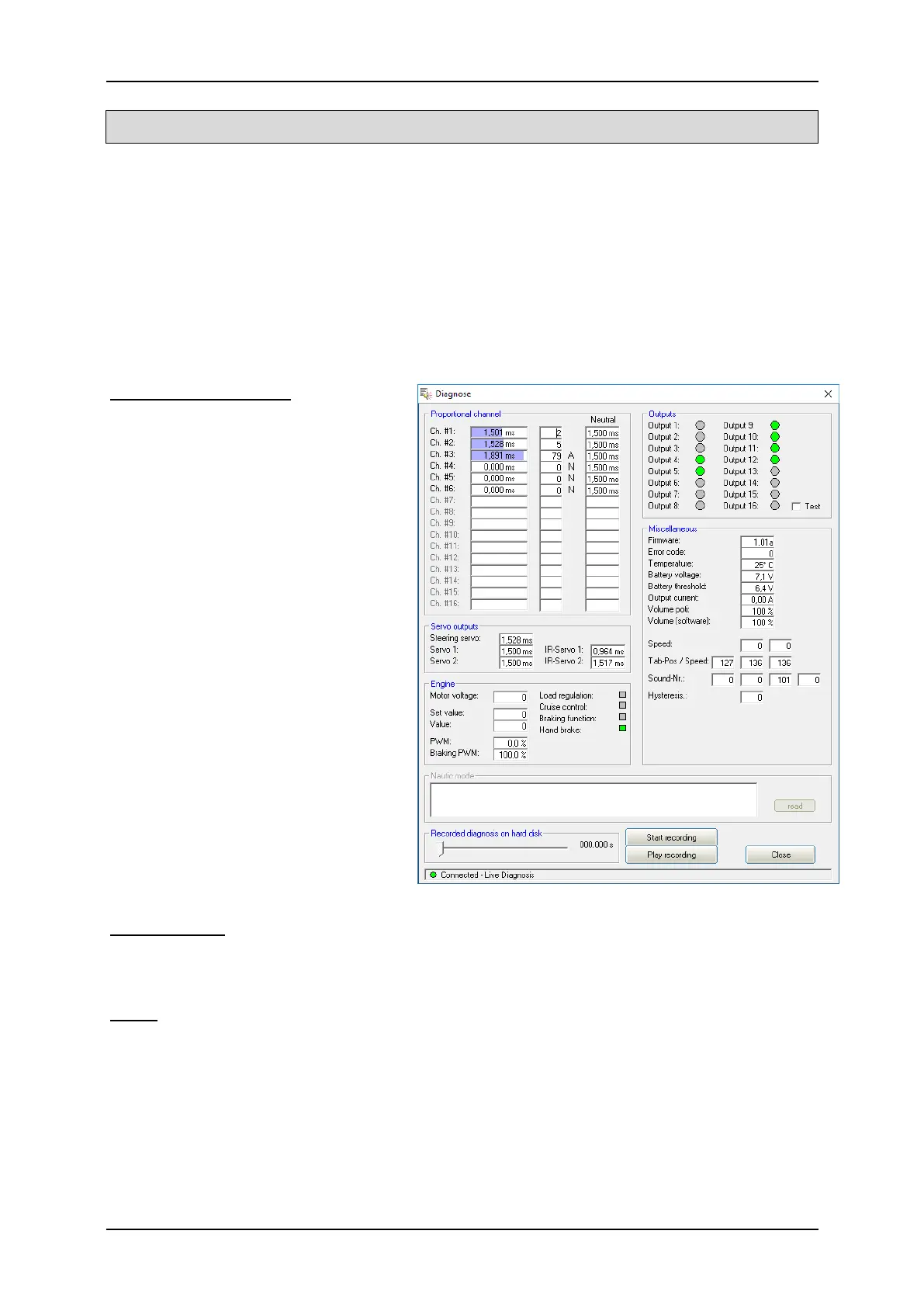

The diagnosis window is divided into different areas: proportional channels, outputs,
servo outputs, motor, nautic mode and others.
Proportional channels
The first slot shows the received
values of the 6 / 16 (with sum
signals) proportional
inputs/channels from the
transmitter. The values range
between 1,000 and 2,000 ms.
In neutral position the values of the
next (middle) slot should be
arround 0.
In addition, a letter is displayed.
This letter indicates in which of the
5 areas (A, B, N, C and D) the
channel is located. This is very
helpful for troubleshooting if some
sounds or functions can not be
switched correctly via the
proportional channel.
A slight fluctuation of the values is
quite normal and does not indicate
a problem!
Servo outputs
These values show the position of the servo. They range between 1,000 and 2,000
ms. The neutral position is 1,500.
Motor
Some values of the motor output stage are shown here. They are intended primarily
for internal audit purposes
With activated speed controller function the box is green.
