Task of type Freewheeling is not recommended, use a Cyclic task instead with a fixed
interval.

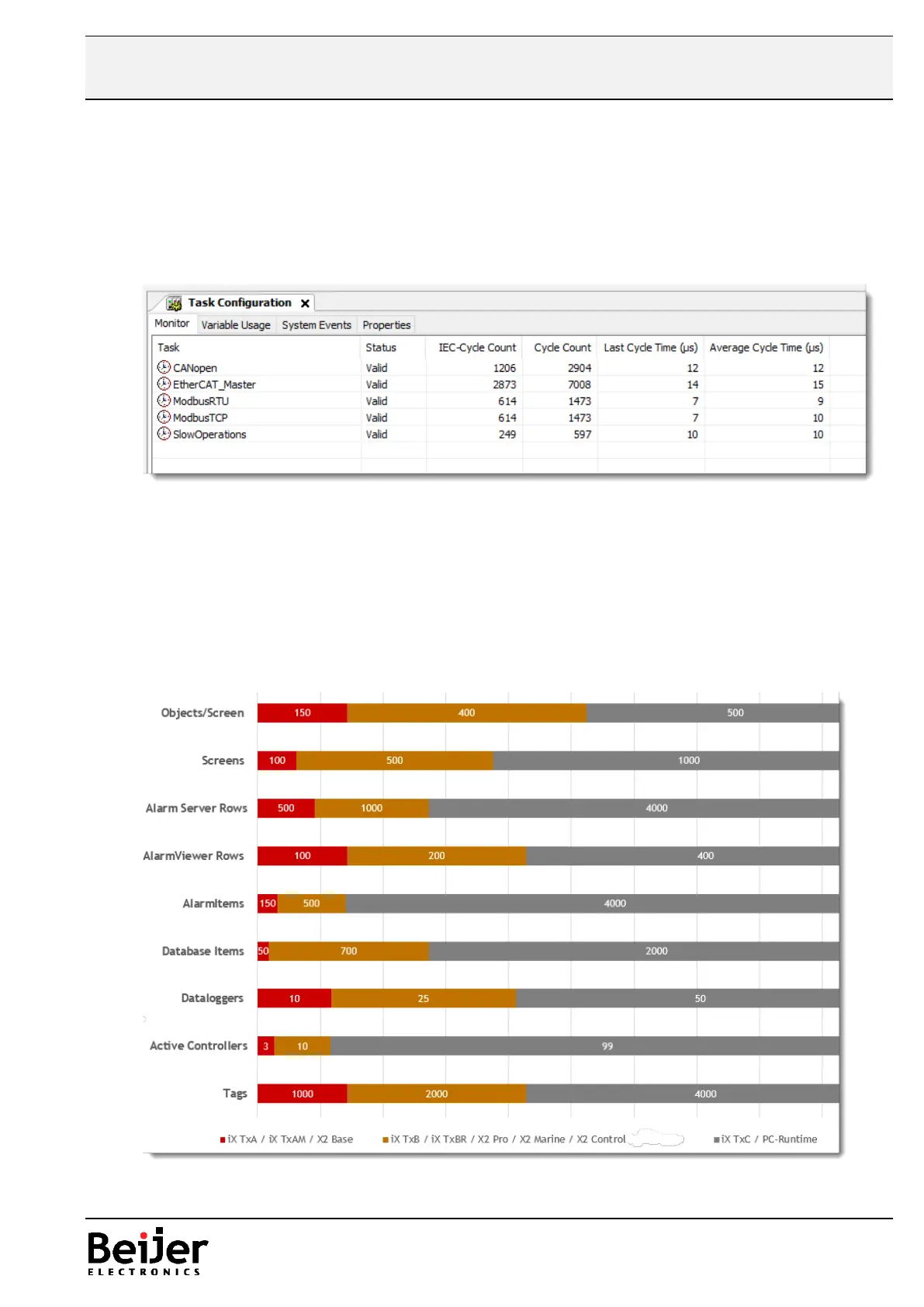

To tune the system and create a time window for the core to perform other things, monitor the
Task Configuration to see the Average Cycle Time for each task configured. Compare the
Average Cycle Time with the configured interval for the task and check that Average Cycle Time
is not higher than 30% of the configured cycle time.
Another aspect is to consider the amount of slaves for I/O communication, it is up to the user to
gather enough knowledge of how the configuration will load the system this includes amount of
slaves, configured update rates etc. More details about recommendations can be found in the
section of each protocol supported.
The amount of communicating tags has a direct impact on the performance in terms of changing
screens, updating of screens and also the load on the controller itself. This chart represents the
recommended amount of tags depending on the model in use.
