X2 series with embedded CODESYS control – Recommendations and limitations
SUEN00392E 2022-03
44 (61)
Normal.dotm
, 2020-09-09
CAB154 X2 series to BFI

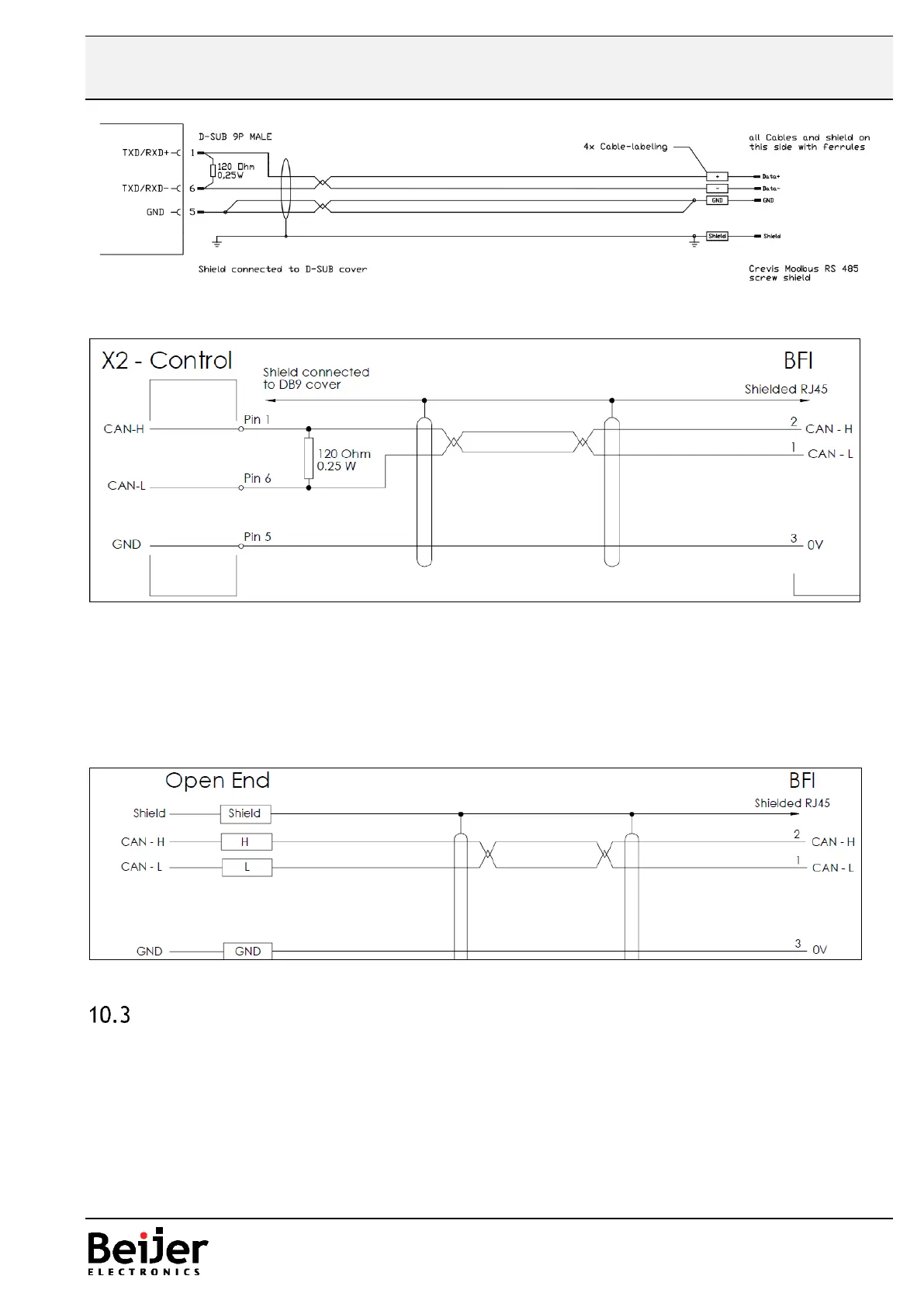

Drawing of cable CAB154. Resistor 120 ohm is inside the D-sub.
CAB155 BFI to Open-end
CAN port mapping
The CAN bus driver in CODESYS has to know the reference to the CAN port to be used.
Network 0 = CAN1 interface
Network 1 = CAN2 interface
