24 | MS 75 | First start upen
4. First start up
4.1 Unpacking
1. Remove the packaging paying attention to nails
detaching.
i After unpacking check the integrity of MS 75 and
check that no components are visibly damaged. In
case of doubt do not proceed to start-up and con-
tact a qualified technician and/or your vendor.
2. Take out of the transport crate the standard accesso-
ries and the packaging materials.
i Dispose correctly of packaging material, hand it over
to the designated collection points.
4.2 Installation
4.2.1 Machine positioning

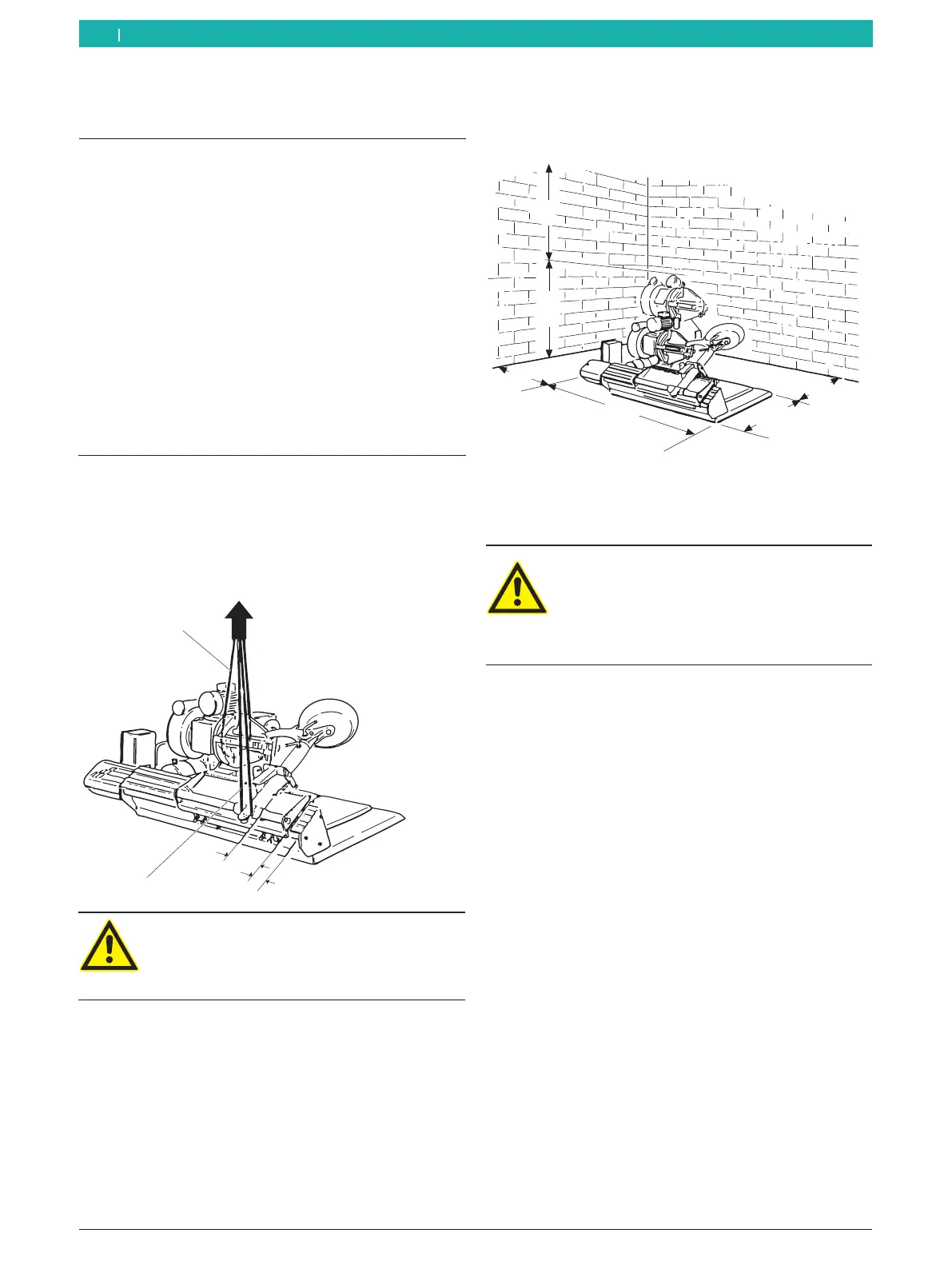

1. Insert the appropriate lifting belts (length belt 1: 1.5
Mt, belt 2: 2 Mt), with sufficient capacity, as shown.
652023-02_Mi
1
2
125
125
Warning - tilting danger!
The barycentre of the MS 75 is not in its
centre.
¶ It is necessary to lift the machine slowly.
2. Lift the MS 75 with a lift crane and install it in the
chosen area respecting the minimum distances
shown in the picture.
652024-02_Mi
1750
900
2200
750
1750
750
i For safe and ergonomic use of the MS 75 it is recom-
mended to leave a minimum of 750 mm space from
the nearest wall and of 900 mm from the ceiling.
Warning - tilting danger!
During tire inflation considerable forces are
exerted.
¶ The MS 75 has to be fixed in at least 3 MS 75 has to be fixed in at least 3 has to be fixed in at least 3
points on the floor.
