Bender ISOMETER IRDH275 - Display in the Standard Mode

Operation and setting
42
IRDH275_D00122_02_M_XXEN/10.2016

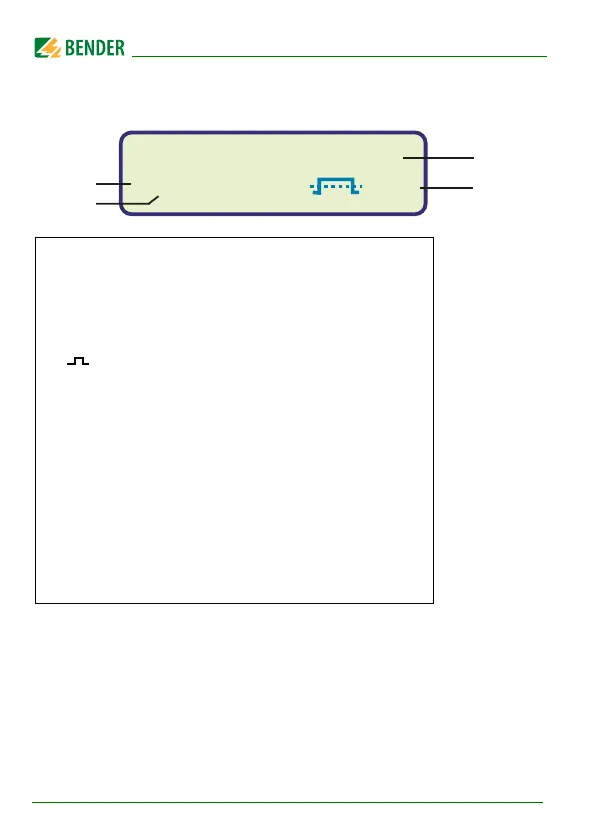

6.1.1 Display in the standard mode
1
Indication of the insulation resistance in kΩ
2
Additional information about the insulation resistance:
"+" = insulation fault at L+
"–" = insulation fault at L–
"s" = new measurement has started
3
= polarity of the measuring pulse
. = valid bus communication signals
H = new entry in the memory data base
C = flashing, clock is to be set
4
Messages:
- Insulation fault
- Connection system?
- Connection PE?
- Device error x
- *****STAND BY*****
1
2
3
4
Insulation Fault
Rs=011k
W . H
