Bender ISOMETER IRDH275 User Manual

Connection
32
IRDH275_D00122_02_M_XXEN/10.2016

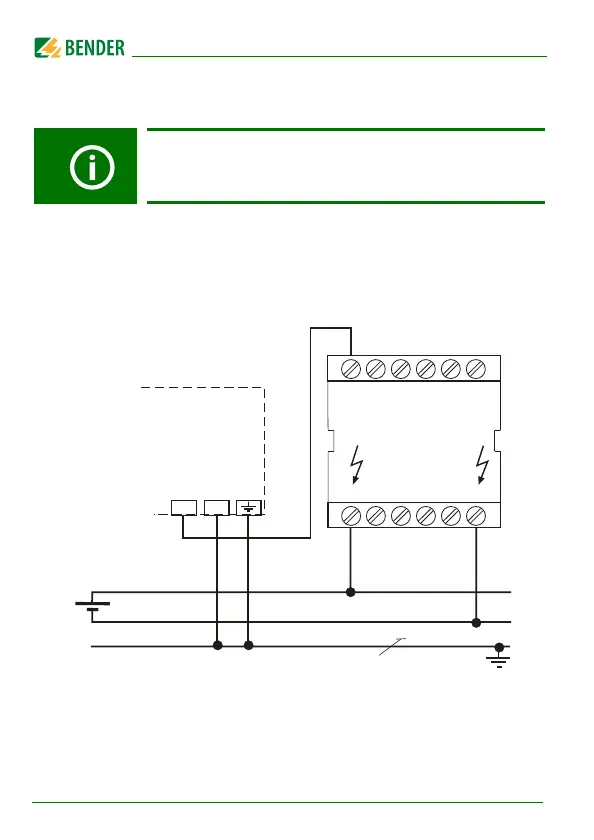

4.2 Wiring diagrams with coupling devices
4.2.1 Connection with AGH150W-4
Connected to the ISOMETER
®
this coupling device extends the nominal volt-
age range to DC 1760 V in DC systems.
Please observe the settings in the "ISO ADVANCED AGH“
menu ! Adapt the settings to the coupling device to be used.
L+
L-
PE
U
n
DC 0 ... 1760 V
IRDH275
KE
AK
Achtung Hochspannung
Danger High Voltage
AGH150W-4
AK160
+ -
