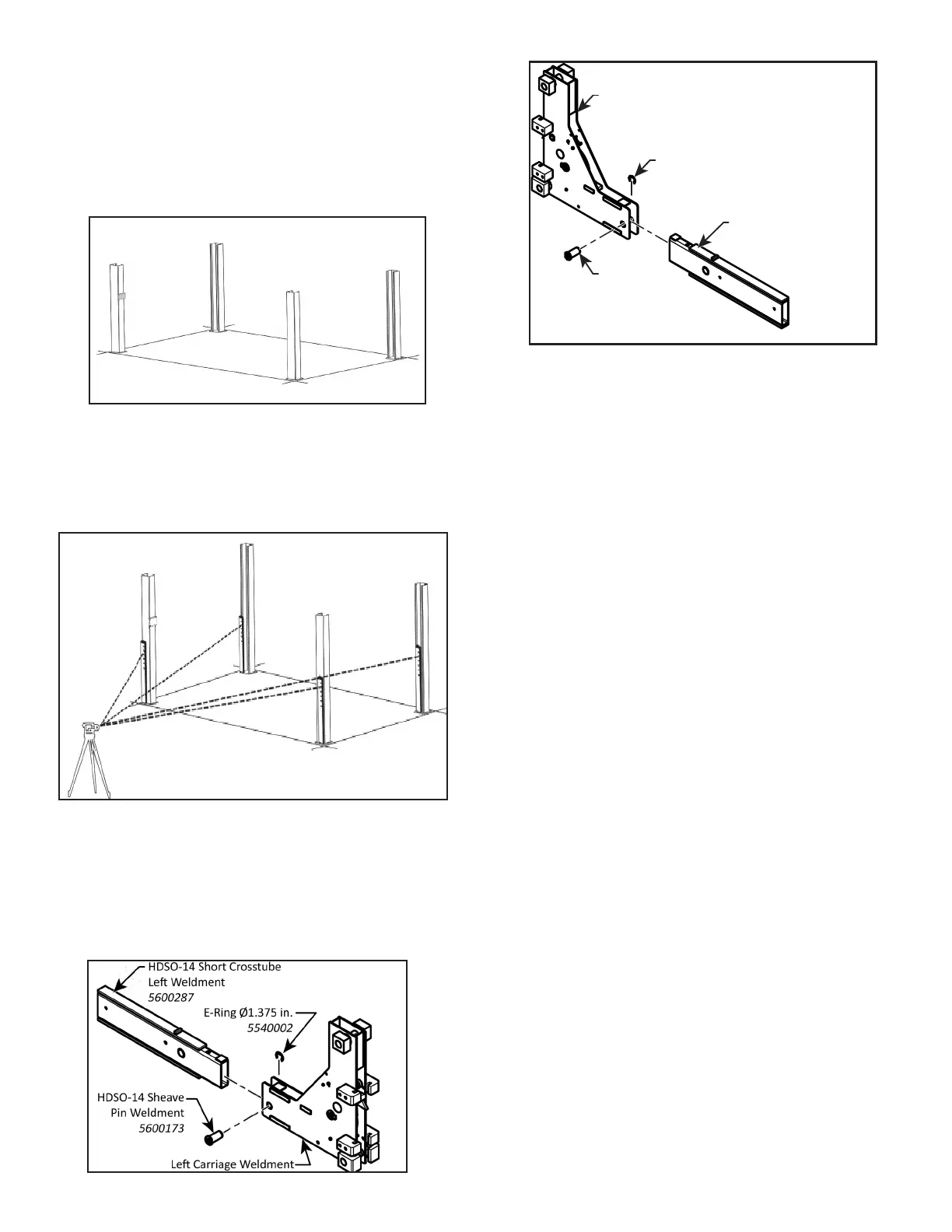

STEP 3
(Column & Cross Tube Installation)
1. Place a chalk line on the floor according to the floor plan
layout. Pay attention to the Power Unit location. Locate and
stand the Columns at their respective locations. DO NOT
BOLT columns down at this time. Use caution to prevent the
Columns from falling over. (See Fig. 3.1)
2. To estimate the shim requirements, place a target on floor at
each Column position and record the readings. Find the high-
est of the four locations then find the difference between each
of the remaining Columns. This difference is the
estimated amount of shim thickness that will be required at
each Column. (See Fig. 3.2 )
Note: The maximum shim thickness recommended by the fac-
tory is no more than 1/2” per Column using shims and anchors
provided with the Lift. A maximum shim thickness of 2” is pos-
sible by ordering optional shim plates. Contact your authorized
BendPak Distributor for ordering information.
3. Assemble the Left and Right Short Crosstube and Carriage
Weldment as shown in the following figures.
12
Fig. 3.1
Fig. 3.2
Right Carriage Weldment
5601111
E-Ring Ø1.375 in.
5540002
HDSO-14 Short Crosstube
Right Weldment
5600288
HDSO-14 Sheave
Pin Weldment
5600173
To Next Page
