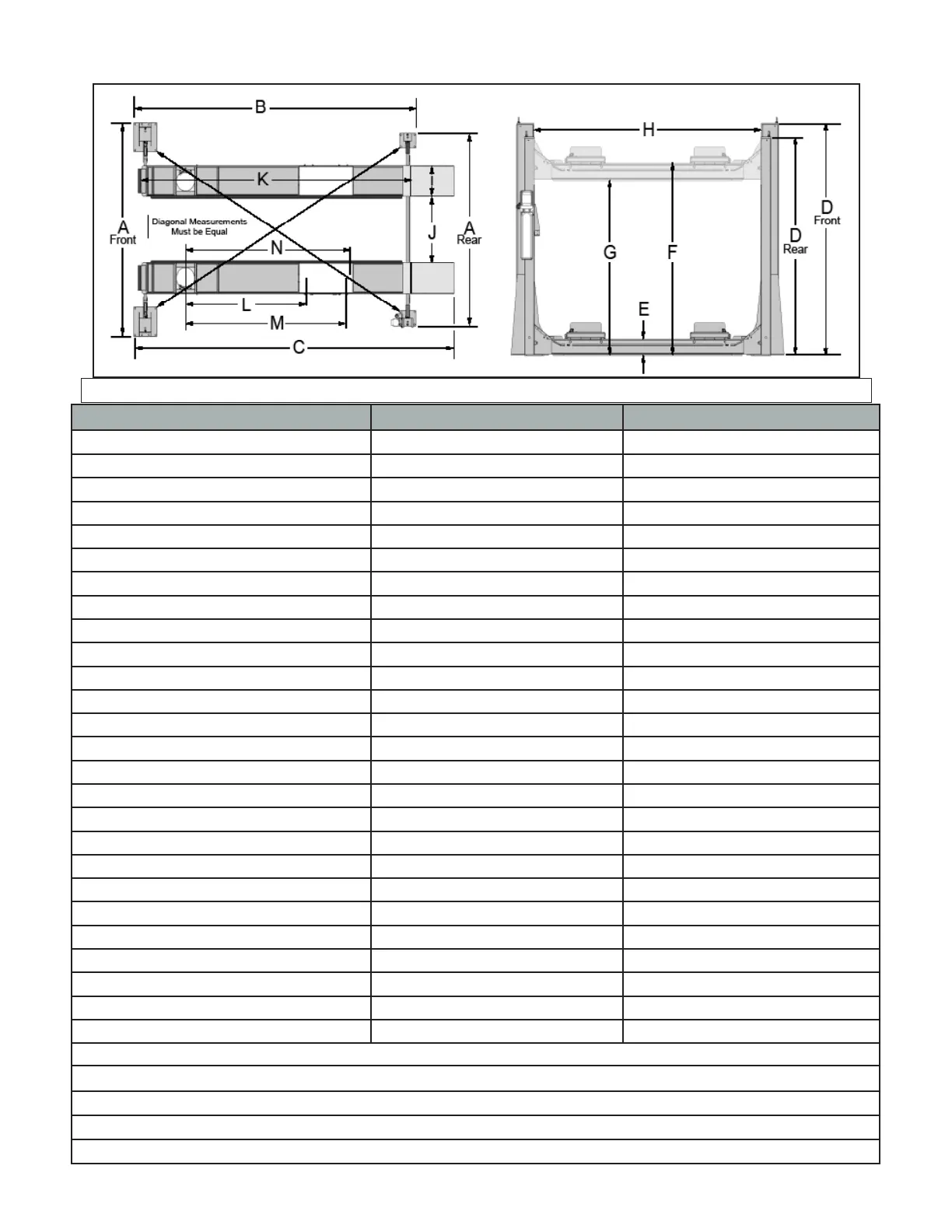

FLOOR PLAN
IMPORTANT NOTE: Confirm square layout; diagonal measurements must be equal.
Model HDSO-14P HDSO-14AX
Lifting Capacity 14,000 lbs / 6350 kg 14,000 lbs / 6350 kg
A - Overall Width / Front 143.25 in. / 3638 mm 143.25 in. / 3638 mm
A - Overall Width / Rear 130 in. / 3304 mm 130 in. / 3304 mm
B - Outside Length 215.5 in. / 5472 mm 215.5 in. / 5472 mm
C - Overall Length 244.5 in. / 6209 mm 244.5 in. / 6209 mm
D - Height of Columns / Front (*) 103.25 in. / 2623 mm max. 103.25 in. / 2623 mm max.
D - Height of Columns / Rear(*) 92 in. / 2338 mm max. 92 in. / 2338 mm max.
E - Min. Runway Height 7.75 in. / 196 mm 7.75 in. / 196 mm
F - Max. Rise 77.5 in. / 1970 mm 77.5 in. / 1970 mm
G - Max Lifting Height 70.75 in. / 1797 mm 70.75 in. / 1797 mm
H - Width Between Columns / Front 123 in. / 3127 mm 123 in. / 3127 mm
H - Width Between Columns / Rear 120 in. / 3050 mm 120 in. / 3050 mm
I - Runway Width 20.5 in. / 520 mm 20.5 in. / 520 mm
J - Width Between Runways(**) 45 in. / 1146 mm 45 in. / 1146 mm
K - Length of Runways 199 in. / 5054 mm 199 in. / 5054 mm
L - Min. 4- Wheel Alignment (***) 72 in. / 1828 mm 89 in. / 2261 mm
M - Max 4 Wheel Alignment (***) 135 in. / 3428 mm 156 in. / 3962 mm
N - Max 2 Wheel Alignment (***) 174 in. / 4420 mm 175 in. / 4445 mm
Min. Wheelbase @ Rated Capacity 140 in. / 3556 mm 140 in. / 3556 mm
Min. Wheelbase 75% Rated Capacity 120 in. / 3048 mm 120 in. / 3048 mm
Min. Wheelbase 50% Rated Capacity 100 in. / 2540 mm 100 in. / 2540 mm
Min. Wheelbase 75% Rated Capacity 80 in. / 2032 mm 80 in. / 2032 mm
Locking Positions 13 13
Lock Spacing Every 4” / 102 mm Every 4” / 102 mm
Lifting Time 60 Seconds 60 Seconds
Standard Motor 220 VAC / 60Hz 1 Ph. 220 VAC / 60Hz 1 Ph.
Emission sound pressure at Operator Position < 70 dB(A)
* Safety Ladder Adjustment bolt may add up to 3.75 in. / 95 mm to overall column height.
** This dimension may be limited with the addition of rolling jacks.
*** For CE compliant countries see errata sheet included with control panel.
The design, material and specifications are subject to change without notice.
