STEP 6
(Powerside Runway Installation)

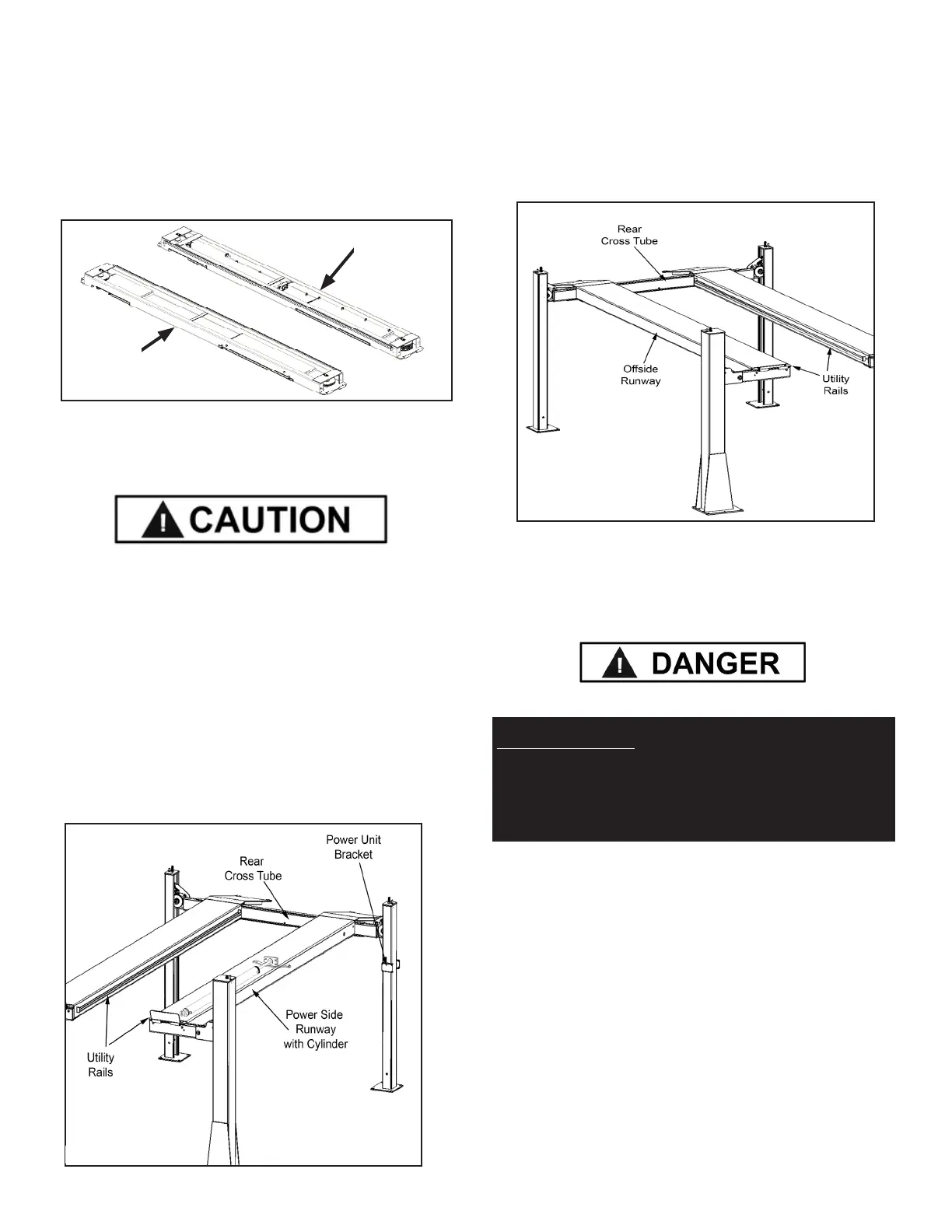

1. Locate the Powerside Runway easily identified by the
Cylinder and Sheave Roller mounting structures welded on the
underside. The Powerside Runway will be positioned on the
side of the Lift where the Power Unit is installed.
(See Fig. 6.1)
2. . Remove any pre-installed Cable Sheaves from the
Powerside runway making sure to pay attention to the order in
which they are removed.
ENSURE THAT THE FRONT POST UPPER
AND LOWER SLIDE BLOCKS ARE ORIENTED
AS SHOWN IN FIGURE 3.3 ON PAGE 12.
BEFORE PROCEEDING.
3. Position the Powerside Runway on top of the Cross Tubes
with the utility rail towards the center. The fitting holes located
at the side of the Powerside Runway should be adjacent to the
Power Unit Column.
4. Align the holes in the Runway with the holes on the Cross
Tubes and bolt it into place using four M12 x 7.75 x 90
Hex Head Bolts and Washers. (See Fig. 6.2)
STEP 7
(Offside Runway Installation)
1. Position the Offside Runway on top of the Cross Tubes
with the utility rail located inside. (See Fig. 7.1)
DO NOT PROCEED with cable installation or go near the Lift
work area unless visual confirmation is made of ALL
safety locks. ALL locks MUST be engaged before
proceeding. Failure to comply with these instructions may
result in severe personal injury or death. (See page 15.)
16
Fig. 6.2
Fig. 7.1
Fig. 6.1
Powerside
Runway
Offside
Runway
