18
Model Part # Description
A HDSO-14P/14AX 5595065 HDSO-14P/14AX/14LSXE, HDS-14X CABLE ASSEMBLY Ø12 x 4,100 mm ST
B HDSO-14P/14AX 5595066 HDSO-14P/14AX/14LSXE, HDS-14X CABLE ASSEMBLY Ø12 x 5,732 mm ST
C HDSO-14P/14AX 5595089 HDSO-14P/14AX CABLE ASSEMBLY Ø12 x 11,302 mm ST
D HDSO-14P/14AX 5595931 HDSO-14P/14AX CABLE ASSEMBLY Ø12 x 9,639 mm ST

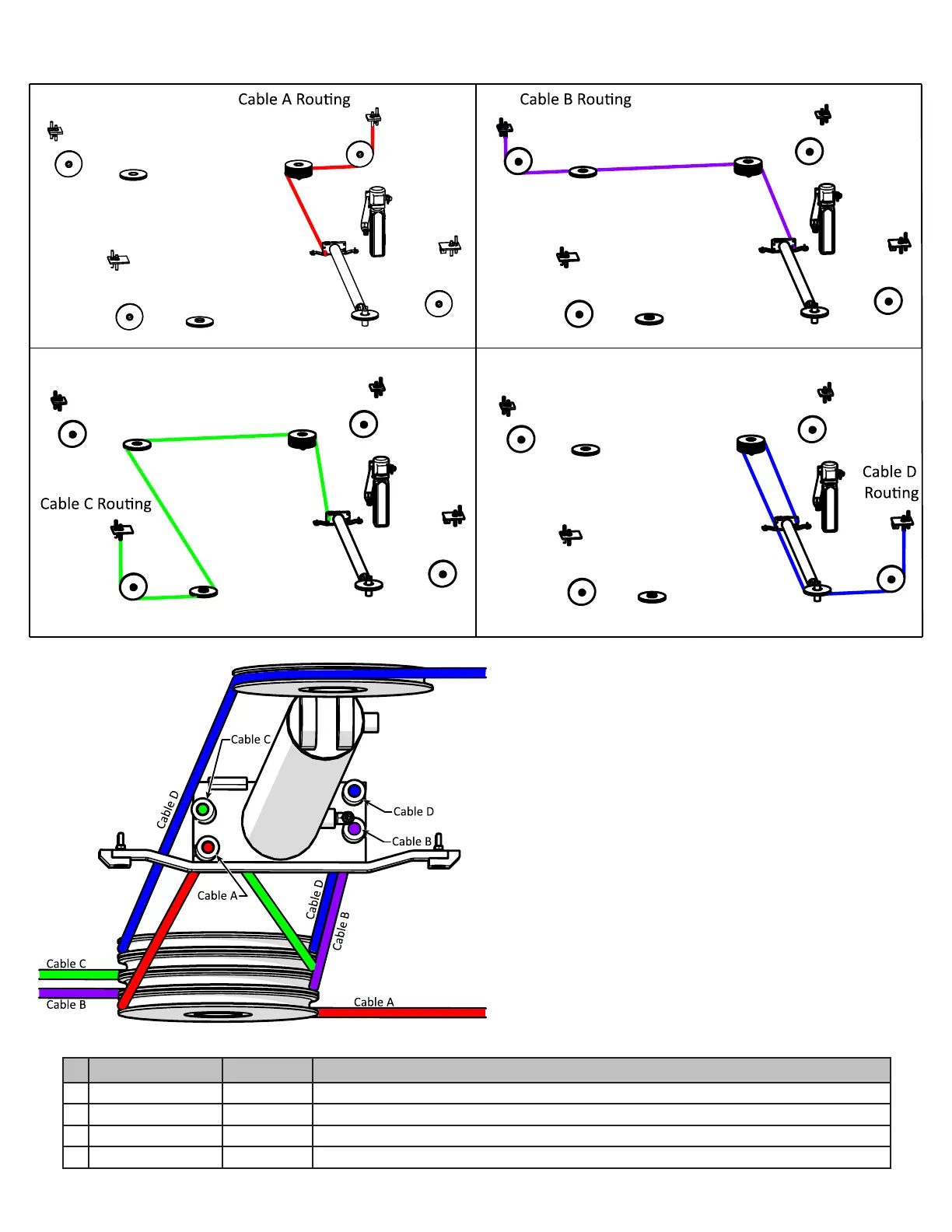

HDSO-14P/14AX CABLE ROUTING
Lubricate Pins and Sheave Bores with Red Lithium Grease
prior to installing.
Spacers on the single sheaves are sized specifically for their
location; they are different heights from the spacers at the
other locations.
If you remove a sheave pin, sheave, and spacers at any loca-
tion, replace them at the same location in the exact same
orientation.
IMPORTANT
Fig. 7.2
To Next Page
