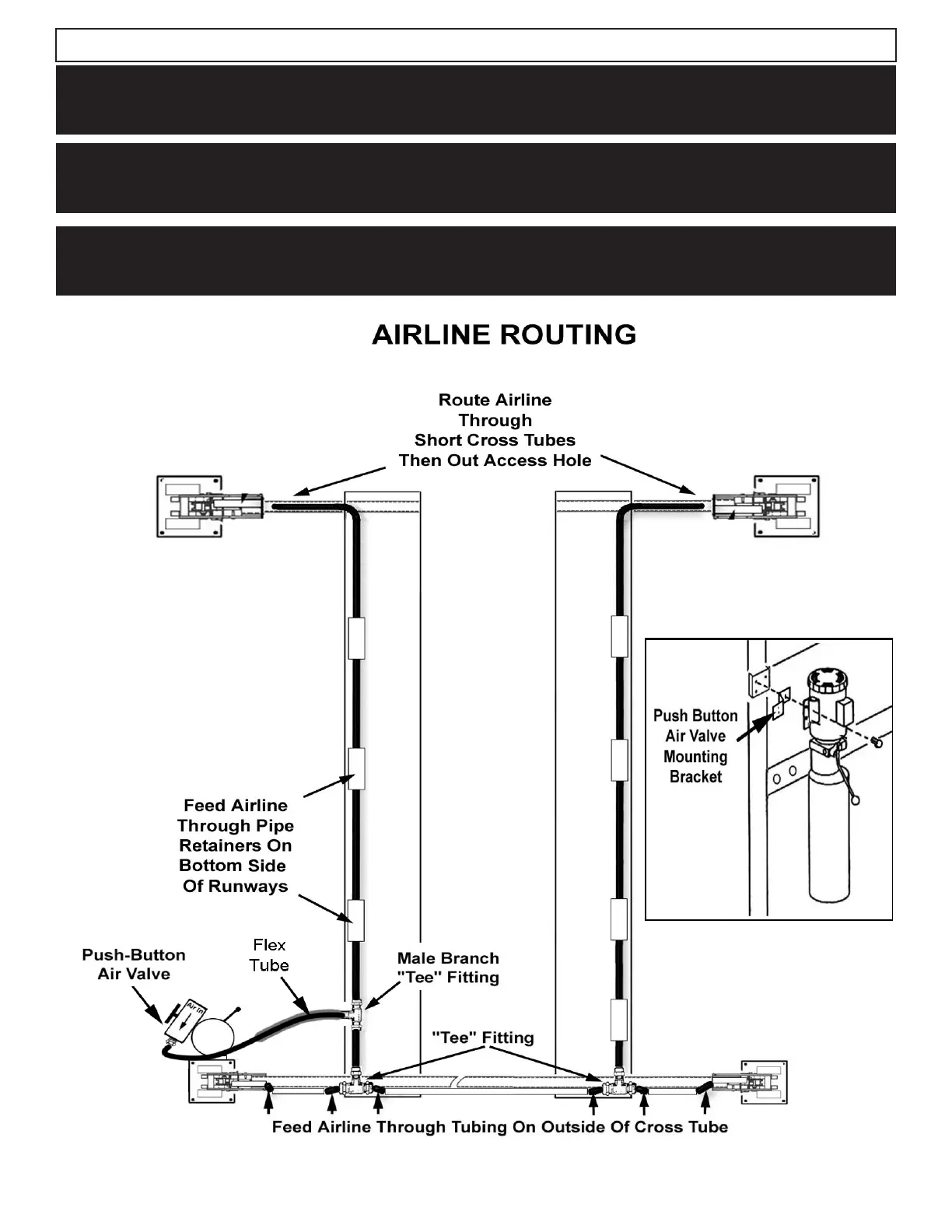

SAFETY AIR LINE ROUTING
NOTE:
CUT THE PROVIDED 1/4” AIR LINE TUBING WITH A SHARP BLADE TO LENGTHS AS REQUIRED.
TUBING MUST BE CUT SQUARE WITH ALL PLASTIC BURRS REMOVED.
AIR TUBING ASSEMBLY:
SEE PAGE 19 FOR ASSEMBLY OF AIR LINE TUBING INTO FITTING.
CAUTION:
REMOVING THE AIR TUBING FROM THE COMPRESSION FITTINGS WILL CAUSE DAMAGE
TO THE TUBING ITSELF. USE OF A DAMAGED AIR LINE MAY RESULT IN SAFETY LOCK FAILURE.
