BendPak HD-7PBX - FLOOR PLAN

11
*IMPORTANT NOTE*
Check Diagonal Measurements
To Ensure Square Layout Diagonal Measurements Must Be Equal.

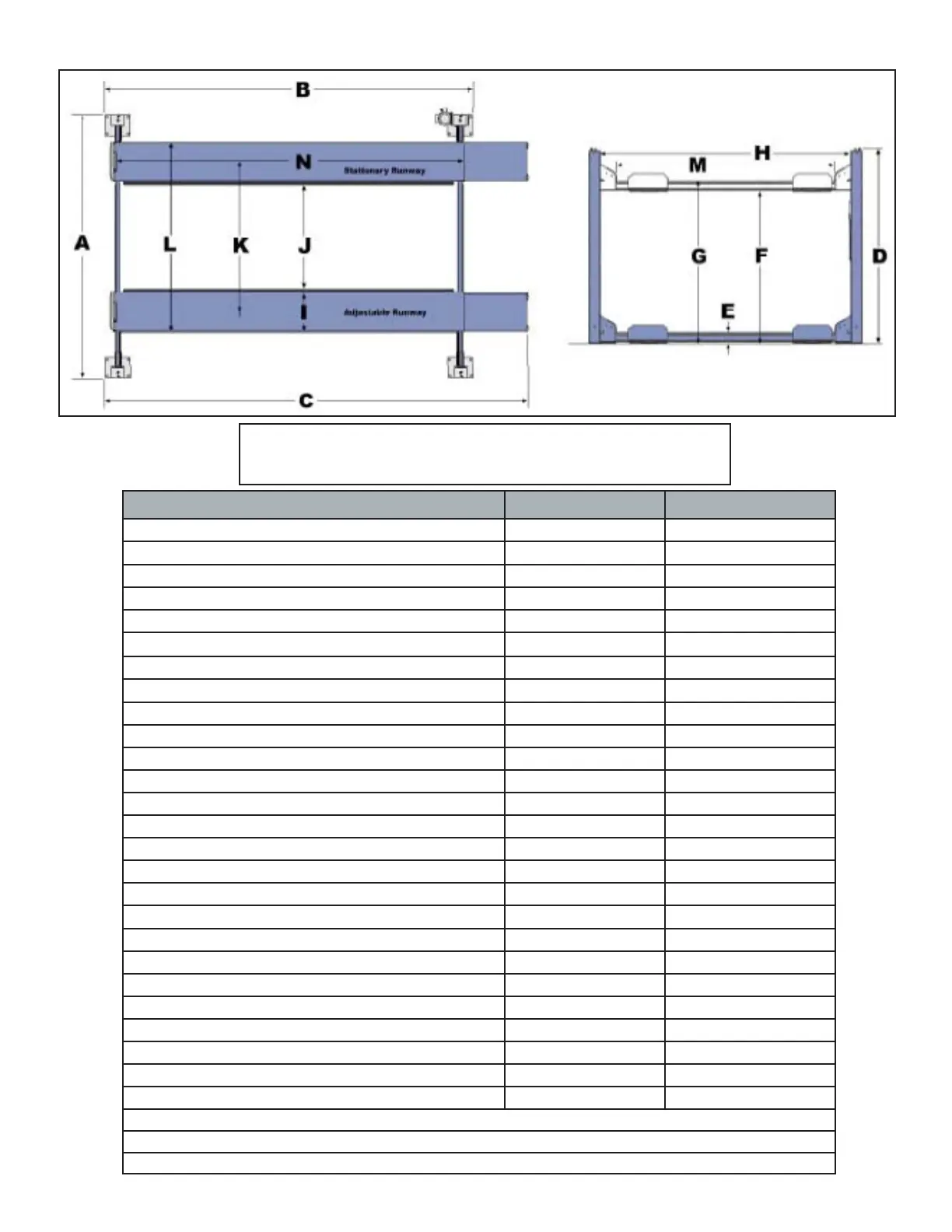

FLOOR PLAN
MODEL HD-7500BL HD-7500BLX
Lifting Capacity 7,500 Lbs / 3,401 Kg 7,500 Lbs. / 3,401 Kg
A Overall Width 132" / 3357 mm. 132" / 3357 mm.
B Outside Length 174” / 4418 mm. 198” / 5028 mm.
C Overall Length 200” / 5087 mm. 224” / 5704 mm.
D Height of Columns 88” / 2232 mm. 100” / 2537 mm.
E – Min. Runway Height 5” / 125 mm. 5” / 125 mm.
F – Max. Rise 70” / 1778 mm. 82” / 2083 mm.
G Max. Lifting Height 75" / 1903 mm. 87" / 2208 mm.
H Width Between Columns 122" / 3103 mm. 122" / 3103 mm.
I Runway Width 19” / 482 mm. 19” / 482 mm.
J Width Between Runways (*) NARROW SETTING 49 1/2" / 1257 mm. 49 1/2" / 1257 mm.
J Width Between Runways (*) WIDE SETTING 69 1/2" / 1765 mm. 69 1/2" / 1765 mm.
K Runway Centerline (*) NARROW SETTING 68 1/2" / 1740 mm. 68 1/2" / 1740 mm.
K Runway Centerline (*) WIDE SETTING 88 1/2" / 2248 mm. 88 1/2" / 2248 mm.
L Outside Edge of Runways (*) NARROW SETTING 87 1/2" / 2222 mm. 87 1/2" / 2222 mm.
L Outside Edge of Runways (*) WIDE SETTING 107 1/2" / 2730 mm. 107 1/2" / 2730 mm.
M Drive Thru Clearance 108 1/2" / 2758 mm. 108 1/2" / 2758 mm.
N Length of Runways 164” / 4166 mm. 188 1/2" / 4788 mm.
Min. Wheelbase @ Rated Capacity 115" / 2921 mm. 135" / 3429 mm.
Min. Wheelbase @ 75% Capacity 100" / 2540 mm. 115" / 2921 mm.
Min. Wheelbase @ 50% Capacity 85" / 2159 mm. 95" / 2413 mm.
Min. Wheelbase @ 25% Capacity 70" / 1778 mm. 80" / 2032 mm.
Locking Positions 13 16
Lock Spacing Every 4” / 101 mm Every 4” / 101 mm
Lifting Time 50 Seconds 50 Seconds
Standard Motor(**) 220 VAC / 60Hz 1 Ph. 220 VAC / 60Hz 1 Ph.
* This dimension may be limited with the addition of rolling jacks. See Rolling Jack Specications on Separate page.
** Special Voltages Available upon Request.
The design, material and specications are subject to change without notice.
