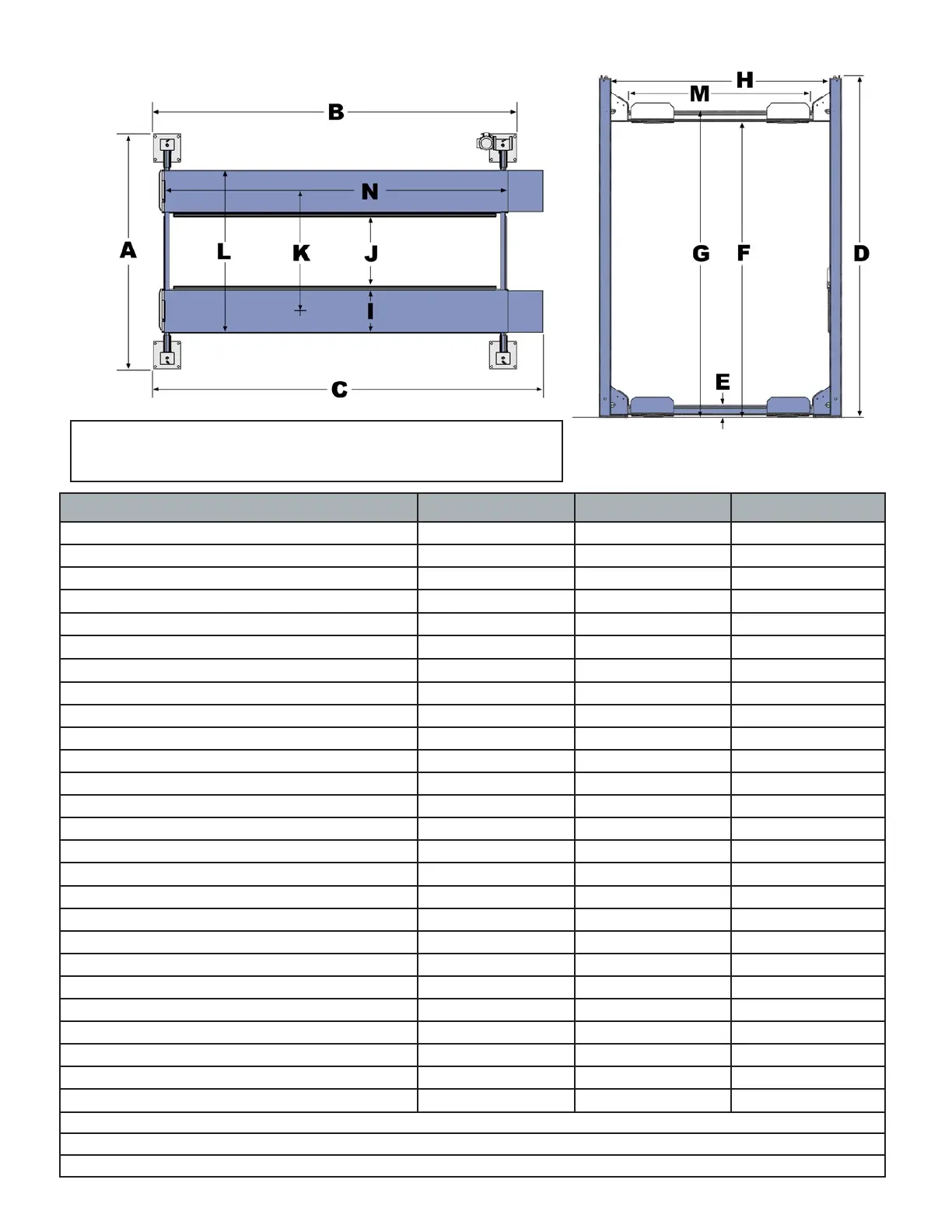

BendPak HD-7PBX - FLOOR PLAN

12
MODEL HD-7PXN HD-7PXW HD-7500PBX
Lifting Capacity 7,000 Lbs. / 3,175 Kg 7,000 Lbs. / 3,175 Kg 7,500 Lbs. / 3,401 Kg
A Overall Width 100” / 2,540 mm 110” / 2,800 mm 132" / 3357 mm.
B Outside Length 198” / 5,028 mm 198” / 5,028 mm 198” / 5028 mm.
C Overall Length 213” / 5,412 mm 213” / 5,412 mm 213” / 5,412 mm
D Height of Columns 158” / 4,010 mm 158” / 4,010 mm 158” / 4,010 mm
E – Min. Runway Height 5” / 125 mm 5” / 125 mm 5” / 125 mm
F – Max. Rise 140” / 3556 mm 140” / 3556 mm 140” / 3556 mm
G Max. Lifting Height 145” / 3,681 mm 145” / 3,681 mm 145” / 3681 mm
H Width Between Columns 90” / 2,286 mm 100” / 2,546 mm 122" / 3103 mm.
I Runway Width 19” / 482 mm 19” / 482 mm 19” / 482 mm
J Width Between Runways (*) NARROW SETTING 37-1/2” / 955 mm 38” / 963 mm
49 1/2" / 1257 mm.
J Width Between Runways (*) WIDE SETTING n/a 44” / 1121 mm 69 1/2" / 1765 mm.
K Runway Centerline (*) NARROW SETTING 56-1/2” / 1437 mm 56.8" / 1445 mm. 68 1/2" / 1740 mm.
K Runway Centerline (*) WIDE SETTING n/a 63” / 1603 mm. 88 1/2" / 2248 mm.
L Outside Edge of Runways (*) NARROW SETTING 75-1/2” / 1919 mm 75-1/2” / 1927 mm. 87 1/2" / 2222 mm.
L Outside Edge of Runways (*) WIDE SETTING n/a 82” / 2085 mm. 107 1/2" / 2730 mm.
M Drive Thru Clearance 76-1/2” / 1947 mm. 86-1/2" / 2201 mm. 108 1/2" / 2758 mm.
N Length of Runways 188” / 4,788 mm 188” / 4,788 mm 188 1/2" / 4788 mm.
Min. Wheelbase @ Rated Capacity 135" / 3429 mm. 135" / 3429 mm. 135" / 3429 mm.
Min. Wheelbase @ 75% Capacity 115" / 2921 mm. 115" / 2921 mm. 115" / 2921 mm.
Min. Wheelbase @ 50% Capacity 95" / 2413 mm. 95" / 2413 mm. 95" / 2413 mm.
Min. Wheelbase @ 25% Capacity 80" / 2032 mm. 80" / 2032 mm. 80" / 2032 mm.
Locking Positions 30 30 30
Lock Spacing Every 4” / 101 mm Every 4” / 101 mm Every 4” / 101 mm
Lifting Time 80 Seconds 80 Seconds 80 Seconds
Standard Motor(**) 220 VAC / 60Hz 1 Ph. 220 VAC / 60Hz 1 Ph. 220 VAC / 60Hz 1 Ph.
* This dimension may be limited with the addition of rolling jacks. See Rolling Jack Specications on Separate page.
** Special Voltages Available upon Request.
The design, material and specications are subject to change without notice.
*IMPORTANT NOTE*
Check Diagonal Measurements
To Ensure Square Layout Diagonal Measurements Must Be Equal.
FLOOR PLAN
