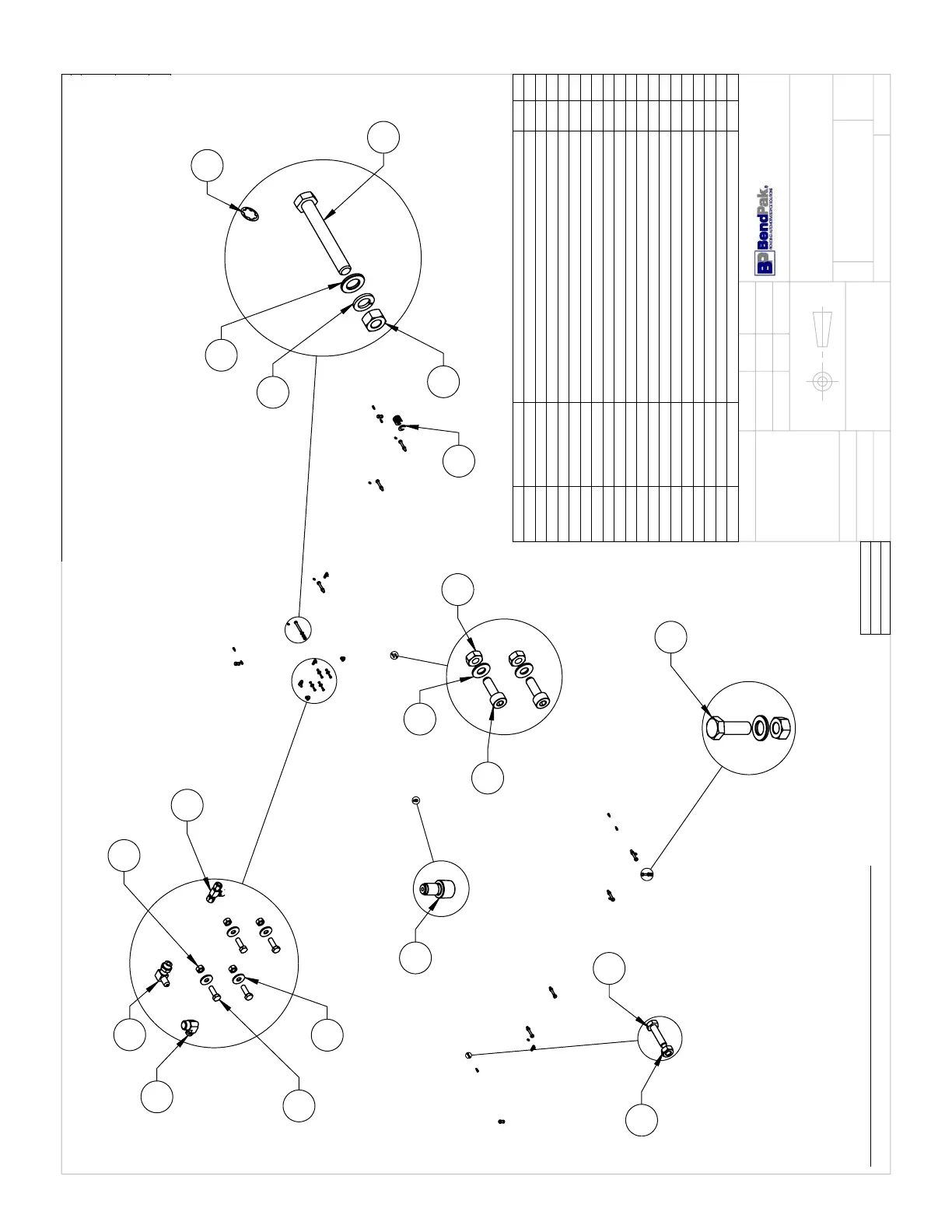

BendPak HD-7PBX - Page 64

64
DIMENSIONS ARE IN MM
☺
19
DETAIL A
SCALE 1 : 4
3
2
DETAIL B
SCALE 1 : 8
12
14
6
5
4
11
DETAIL C
SCALE 1 : 4
10
8
9
1
7
DETAIL D
SCALE 1 : 4
13
DETAIL E
SCALE 1 : 4
18
DETAIL F
SCALE 1 : 2
16
15
17
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
C
C-001
DELETED M6 GREASE FITTINGS, ADDED (20)
5545535
UPDATED NEXT ASSEMBLY
12/22/2009 02/22/2010
AC AC
00326 00333
D
D-001 D-002
REPLACED 5550600 WITH 5550493
UPDATED NEXT ASSEMBLY
UPDATED NEXT ASSEMBLIES
12/20/2010 08/17/2012 11/21/2012
TM TM TM
00431 00541 00562
E
REPLACED 5550004 WITH 5550089, 5550489 WITH
5550395, UPDATED NEXT ASSEMBLIES
10/29/2013
TM
00593
NEXT ASSEMBLY
5250161 5250166
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
REV
1
5505031
ROTOR CLIP 12mm SS
8
-
2
5530756
HHB M6 x 1 x 25
8
-
3
5535357
NUT M6 x 1.0 NL
8
-
4
5535001
NUT M8 x 1.25 NL
4
-
5
5545340
WASHER M8 x24 FLAT
4
-
6
5530010
HHB M8 x 1.25 x 25
4
-
7
5530009
HHB M12 x 1.75 x 90 CL8.8
8
-
8
5545201
WASHER, M12 SPRING LOCK
8
-
9
5545347
WASHER, M12 FLAT WASHER
12
-
10 5535354
NUT M12 x1.75
12
-
11 5550395
FTG TEE -04 COMP x -04 COMP x -04 COMP
3
-
12 5550089
FTG -04 COMP x -06 NPT
2
-
13 5550493
FTG RST -04 JIC x -06 NPT x .062 ID
1
-
14 5550008
FTG ELB -04 JIC -06L ORB
1
-
15 5545009
WASHER, Ø4.3 x Ø9mm x 0.8mm
2
-
16 5530008
SHCS M4 x 0.7mm x 12mm
2
-
17 5535010
Nut, M4 X 0.7
2
-
18 5530076
HHB M12 x 1.75 x 35mm
4
-
19 5545535
C WASHER SHIM FOR LIFTS
19
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
E
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5174097
HD-7PX SERIES PARTS BAG
---
---
08/08/2009
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
