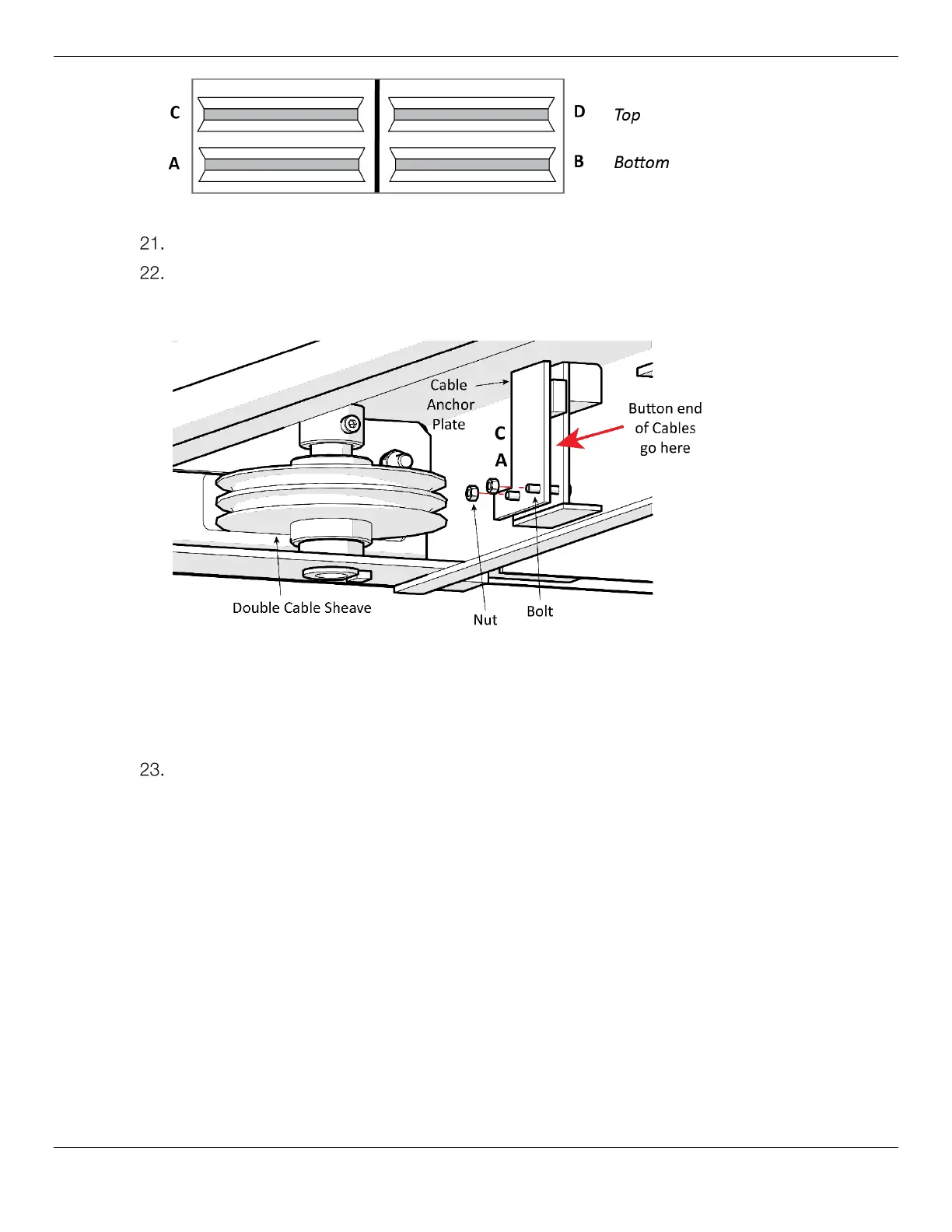

Front view of the Pull Box, looking back towards the Hydraulic Cylinder. Not to scale.
Pull the Button ends of both Cables towards the Cable Anchor Plate on the side of the Runway.
Unscrew the Bolts from the Cable Anchor Plate so that the Button ends of the Cables may slip
through the slot from underneath, then reinstall the Bolts.
The following drawing shows the Cable Anchor Plate closest to Post A.
Not to scale. Not all components are shown.
Note If Lifting Cables A and C are stretched tight and you cannot get the Button ends
secure in the Cable Anchor Plate, you can temporarily remove the Double Cable Sheave in
the Pull Box to get a little slack. This issue does not happen often; there is usually slack in
the Lifting Cables, depending on how far the Piston was extended.
If you see slack in the Lifting Cables, this is normal. It will go away once you start using the Lift.
Note Routing Lifting Cables B and D is the same process as routing Lifting Cables A and C, just to
the other two Posts and using a different set of Sheaves. Refer to the drawings in the
previous section.
