HD-973P Series Multi-Level Parking Lift 38 P/N 5900076 — Rev. B3 — January 2024
Routing the Lifting Cables on the Lower Platform
Unlike the Upper Platform, the Lower Platform uses a Retaining Plate and Tie Plate to hold the Button
ends of each Lifting Cable.
The Retaining Plate holds the Button ends of the Cables in place after all four Cables are installed. Do
not take the Tie Plate off to install the Cables; instead, loosen it so that you can slip the
Button end of the Cable into the correct slot.

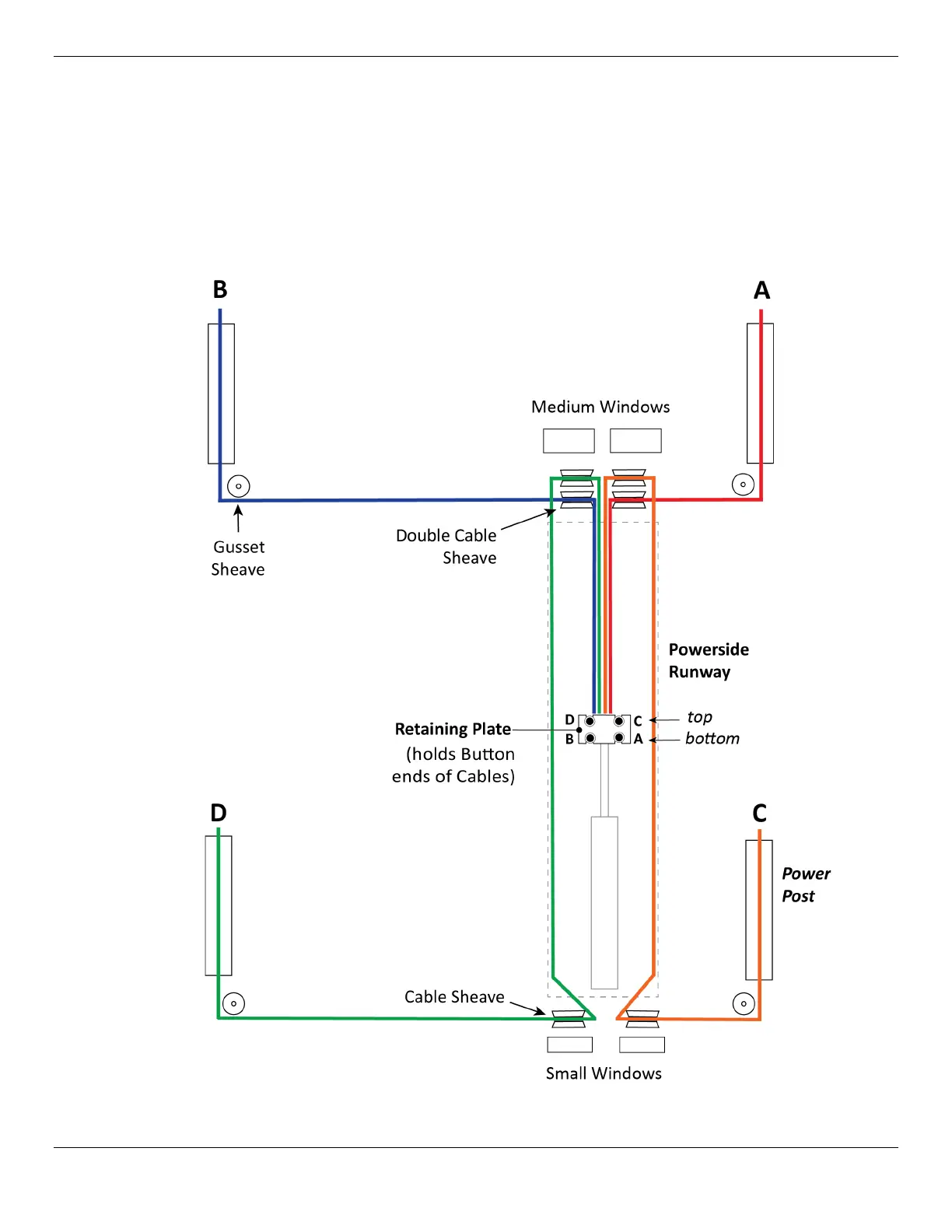

The following drawing shows the routing for all four Cables on the Lower Platform.
Cable Sheaves separated from Windows for clarity. Crosstubes not shown. Not to scale.
