DIMENSIONS ARE IN MM
☺
9
13
14
12
15
6
11
7
8
10
17
19
20
18
16
1
4
5
2
3
21
WHERE USED
HD-27X
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY.
REV
1 5174600
HDS-18E/27/40 PARTS BAG
1
H
2 5595835
HDS-18E/18EA/27 CABLE ASSEMBLY Ø16 x 4127mm ST
1
E
3 5595836
HDS-18E/18EA/27 CABLE ASSEMBLY Ø16 x 5855mm ST
1
E
4 5595808
HDS-27X CABLE ASSEMBLY Ø16 x 12007mm ST
1
J
5 5595809
HDS-27X CABLE ASSEMBLY Ø16mm x 13739mm ST
1
J
6 5215096
PUSH BUTTON AIR ASSEMBLY
1
G
7 5700029
HD-SERIES FLEX TUBE BRACKET PLATE
1
F
8 5700033
HD-SERIES FLEX TUBE ANGLE
1
E
9 5600409
HDS-18/27 TOP PLATE WELDMENT
4
D
10 5216139
FLEX TUBE KIT, UP TO 2000mm
1
A
11 5715003
POWER UNIT VIBRATION DAMPENER
1
B
12 5620194
HDS-18E/27/40 TIRE STOP WELDMENT
2
C
13 5570900
HYD. HOSE ASSY Ø10 x 6782mm
1
A
14 5570795
1/4" POLY-FLO TUBING
24000mm*
-
15 5505123
HDS-27 SERIES HINGE PIN
2
B
16 5530456
AB 3/4" x 4 - 3/4"
16
-
17 5900160
HDS TRUCK SERIES INSTALLATION MANUAL
1
-
18 5716633
HDS-18/27/40 SERIES CROSSTUBE COVER, PLASTIC
4
C
19 5700246
WHEEL CHOCK
2
B
20 5210242
4 POST HEAVY DUTY CE PARTS BAG
1
A
21 5930195
ANTI-SLIP TAPE, 6” x 24ft
1
--
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
K
ADDED 5210242, REMOVED 5535104 AND
5545415, UPDATED BOM REVISIONS
07/21/2020
TM
01174
L
UPDATED BOM REVISION
08/25/2021
CA
01322
M
ADDED 5930195, REPLACED 5570050 WITH
5216139
05/04/2022
TM
01414
PRE A
NEXT ASSEMBLY
5260602
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
M
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM

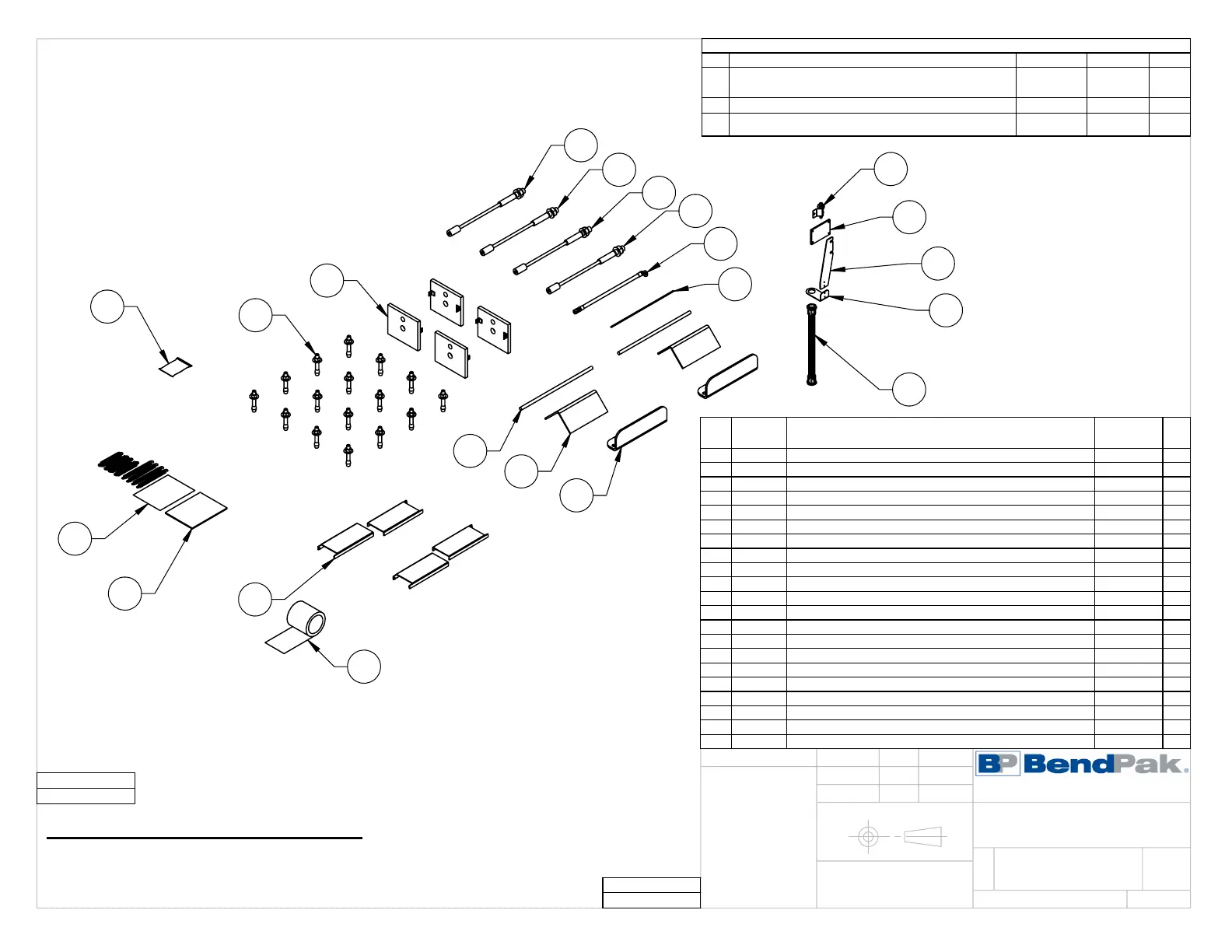

5250175
HDS-27X PARTS BOX
05/08/2013
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
HOSES AND CABLES IN REPRESENTATIONAL FORM
3.
(*) LENGTH FOR REFERENCE ONLY
4.
