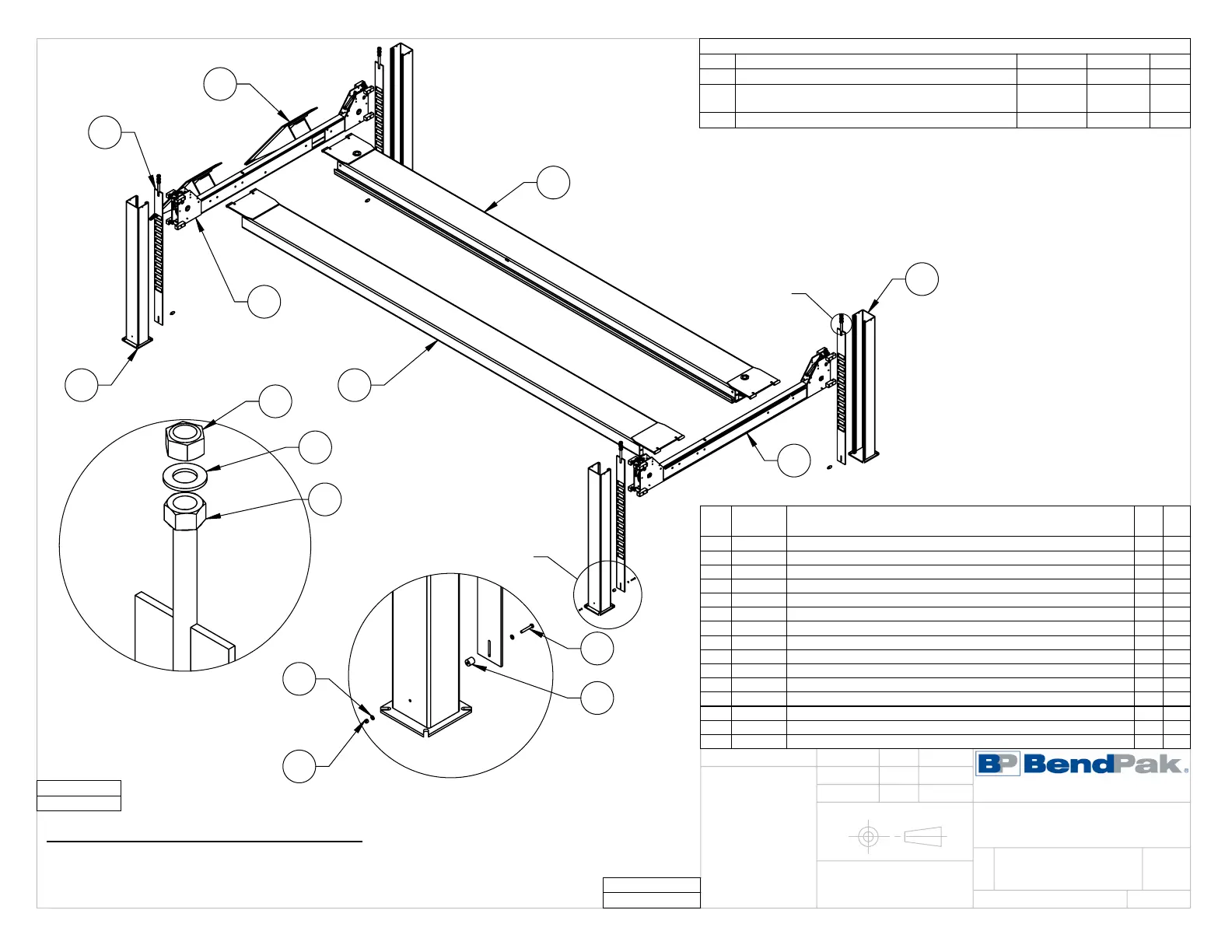

BendPak HDS-27X - 5245086; Sheet1; Drawing View1; Detail View A (1: 5)

DIMENSIONS ARE IN MM
☺
A
B
7 5
4
2
6
1
3
8
DETAIL A
SCALE 1 : 5
10
11
9
DETAIL B
SCALE 1 : 20
14
15
13
12
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5216168 HDS-18/27 CROSSTUBE ASSEMBLY, LARGE WINDOW 1 A
2 5216167 HDS-18/27 CROSSTUBE ASSEMBLY, SMALL WINDOW 1 A
3 5215161 HDS-18/27 EXTENDED DRIVE UP RAMP ASSEMBLY 2 K
4 5215157 HDS-27X POWER SIDE RAMP ASSEMBLY 1 X
5 5601440 HDS-27X OFF SIDE RAMP WELDMENT 1 B
6 5601143 HDS-18/27/40 POWER POST WELDMENT 1 B
7 5601141 HDS-18/27/40 POST WELDMENT 3 B
8 5600875 HDS-18/27 SAFETY LADDER WELDMENT 4 C
9 5535211 NUT M27 x 3.0 NL 4 -
10 5545103 WASHER M27 x 50mm 4 -
11 5535210 NUT M27 x 3.0 4 -
12 5530046 HHB M10 x 1.5 x 65mm 4 -
13 5746088 HDS-18/27 SPACER, SAFETY LADDER, 31mm LG 4 B
14 5535013 NUT M10 x 1.5 NL 4 -
15 5545341 WASHER M10 x Ø20 FLAT 8 -
NEXT ASSEMBLY
5260602
WHERE USED
HDS-27X
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
E UPDATED BOM REVISION 01/10/2022 TM 01378
F
REPLACED 5215891 WITH 5216168, 5215890
WITH 5216167
05/23/2022 TM 01414
G UPDATED BOM REVISION 08/09/2022 TM 01436
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
CA
5245086
HDS-27X LIFT
SUPERSTRUCTURE
12/16/2019
DO NOT SCALE DRAWING
1:60
SCALE:
THIRD ANGLE PROJECTION
OR 08/16/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
FASTEN NUTS AND WASHERS TO SAFETY LADDERS IN 3.
ORDER SHOWN FOR SHIPMENT
NOTE: UNLESS OTHERWISE SPECIFIED .
