DIMENSIONS ARE IN MM
☺
1
3
2

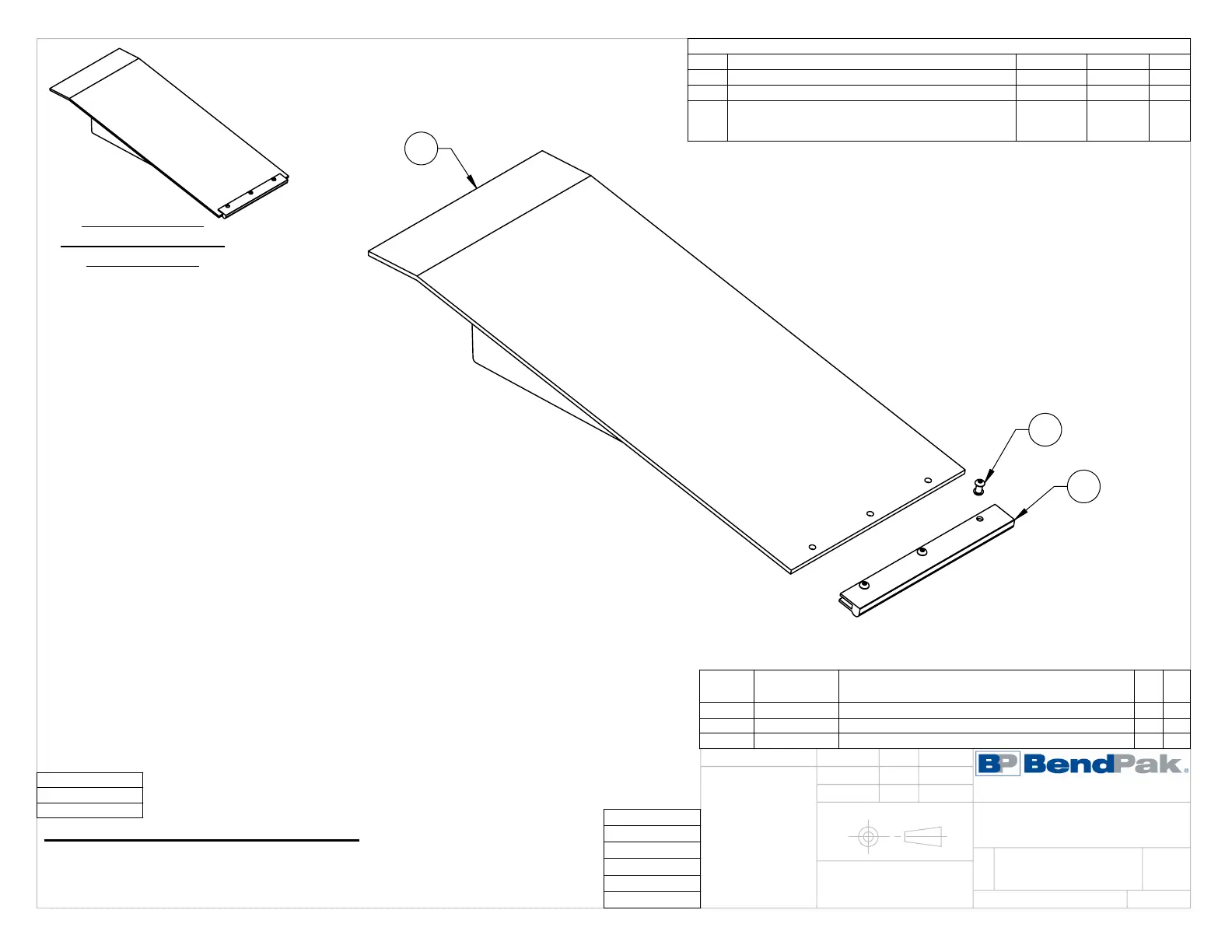

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
H
UPDATED BOM REVISIONS AND NEXT ASSEMBLY
06/14/2018
TS
00945
J
UPDATED BOM REVISION AND NEXT ASSEMBLIES
10/03/2019
TS
01120
K
REPLACED 5575663, WITH 5716088, REPLACED
5530012, AND 5530035 WITH 5530464, UPDATED
BOM REVISION
08/09/2022
TM
01436
ITEM NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5600196
HDS-18/27 EXTENDED DRIVE UP RAMP WELDMENT
1
K
2 5716088
HDS-18/27 APPROACH RAMP EDGE GUARD
1
A
3 5530464
BBSS M10 x 1.5 x 24mm
3
--
NEXT ASSEMBLY
5245086
5245087
5245088
5245089
5245090
WHERE USED
HDS-18 SERIES
HDS-27 SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5215161
HDS-18/27 EXTENDED
DRIVE UP RAMP ASSEMBLY
05/06/2009
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
OR
08/16/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT
2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
3.
ASSEMBLE ITEMS AS SHOWN
4.
