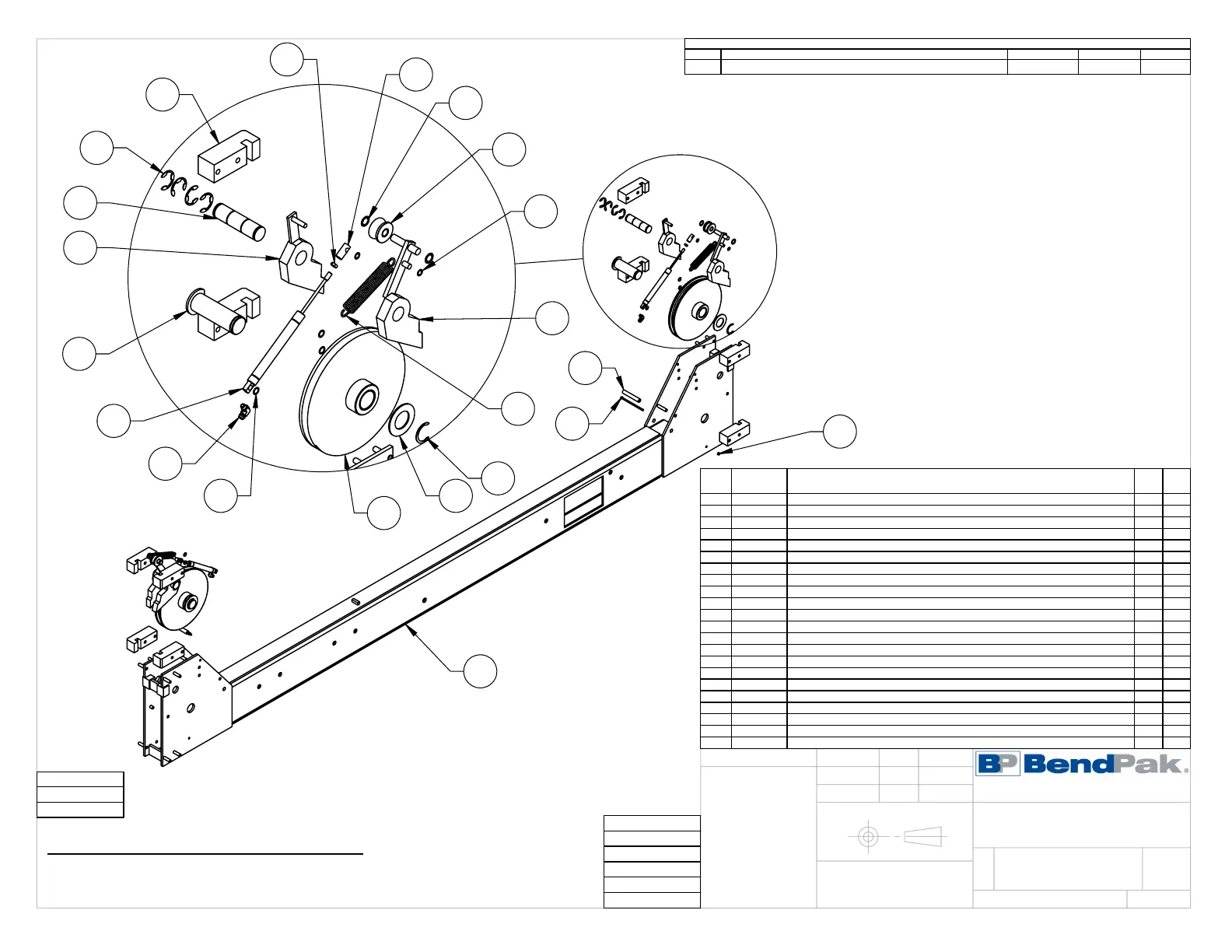

DIMENSIONS ARE IN MM
☺
1
20
21
22
DETAIL A
SCALE 1 : 10
13
5
7
9
17
18
12
3
8
15
19
2
14
11
16
4
6
10
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5601831
HDS-18/27 CROSSTUBE WELDMENT, LARGE WINDOW
1
A
2 5215166
HDS-18/27 SERIES CROSSTUBE SHEAVE ASSEMBLY
2
D
3 5215169
HDS-18/27 SAFETY ROLLER ASSEMBLY
2
D
4 5505124
HDS-18/27/40 CROSSTUBE SHEAVE SHAFT WELDMENT
2
G
5 5505125
HDS-18/27/40 SAFETY PIN
2
E
6 5716152
HDS-18/27 POLYETHYLENE SLIDE BLOCK
8
G
7 5210359
HDS-18/27/40 SAFETY WELDMENT #1
2
D
8 5210358
HDS-18/27/40 SAFETY WELDMENT #2
2
E
9 5502335
AIR CYLINDER, Ø.75 x 4.0" STROKE
2
-
10 5505030
PUSH-ON CLIP Ø10mm SS
4
-
11 5505031
ROTOR CLIP Ø12mm SS
6
-
12 5505033
PUSH-ON CLIP Ø16mm SS
4
-
13 5540002
E RING Ø1.375" OD TRUARC X5133-137
8
-
14 5540060
SPRING Ø29 x 178mm, SLACK SAFETY
2
A
15 5540112
SNAP RING; TRUARC 5103-175
2
-
16 5550087
FTG ELB -04 COMP x -02 NPT
2
-
17 5535101
3/8-16 HEX NUT JAM
2
-
18 5550376
HDS-18/27/40 ADAPTER, 1" AIR CYLINDER
2
D
19 5545108
WASHER M45 x 80 FLAT
2
-
20 5530317
HHB M6 x 1 x 136
2
-
21 5535357
NUT M6 x 1.0 NL
2
-
22 5755158
HD-18/27/40 CROSSTUBE SPACER Ø16 x Ø10 x 102
2
B
NEXT ASSEMBLY
5245086
5245087
5245088
5245089
5245090
WHERE USED
HDS-18 SERIES
HDS-27 SERIES
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5215891
05/02/2022
TM
01414
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM
5216168
HDS-18/27 CROSSTUBE
ASSEMBLY, LARGE WINDOW
05/02/2022
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
ASSEMBLE ITEMS AS SHOWN
3.
NOTE: UNLESS OTHERWISE SPECIFIED
.
