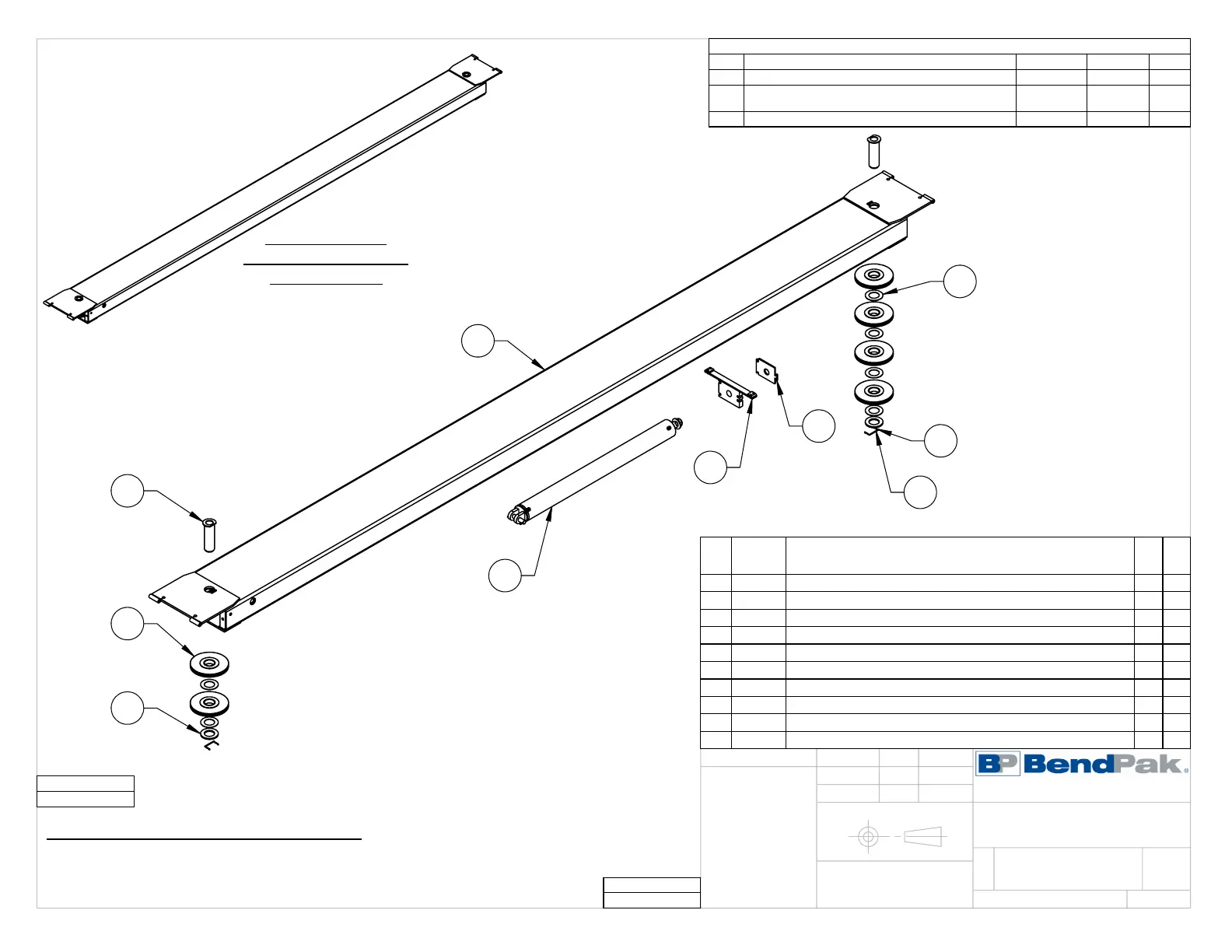

DIMENSIONS ARE IN MM
☺
3
1
8
10
4
2
5
7
6
9
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
V
UPDATED BOM REVISION
11/05/2020
CA
01227
W
REPLACED (1) 5620197 WITH 5620242,
UPDATED BOM REVISION
08/26/2021
CA
01322
X
UPDATED BOM REVISION
01/10/2022
TM
01378
WHERE USED
HDS-27X
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5600141
HDS-27X POWER SIDE RAMP WELDMENT
1
J
2 5215160
HDS-18E/27 SERIES RAMP SHEAVE ROLLER ASSEMBLY
6
D
3 5620242
HDS-18E/27 SHEAVE PIN WELDMENT
2
C
4 5716016
HDS-18E/27 SERIES SHEAVE SPACER
6
C
5 5746089
HDS-18/27/40 SERIES SHEAVE SHAFT PIN
2
D
6 5755113
HD-18/27 SPACER, RAMP SHEAVE
2
B
7 5505335
HAIR PIN 3/32” x 1 5/8”
4
-
8 5215159
HDS-18/27 SERIES CYLINDER FLANGE ARM ASSEMBLY
1
H
9 5502161
PULL CYLINDER ASSEMBLY Ø5.0 x 60
1
N
10 5731025
HDS-18/27 SERIES CABLE RETAINER PLATE
1
B
NEXT ASSEMBLY
5245086
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
X
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
GJZ
5215157
HDS-27X POWER SIDE
RAMP ASSEMBLY
10/21/2008
DO NOT SCALE DRAWING
1:35
SCALE:
THIRD ANGLE PROJECTION
OR
01/11/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
VERIFY CYLINDER PORTS ARE CAPPED OFF WITH 3/8" NPT STEEL PLUG
2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
3.
ASSEMBLE ITEMS AS SHOWN
4.
