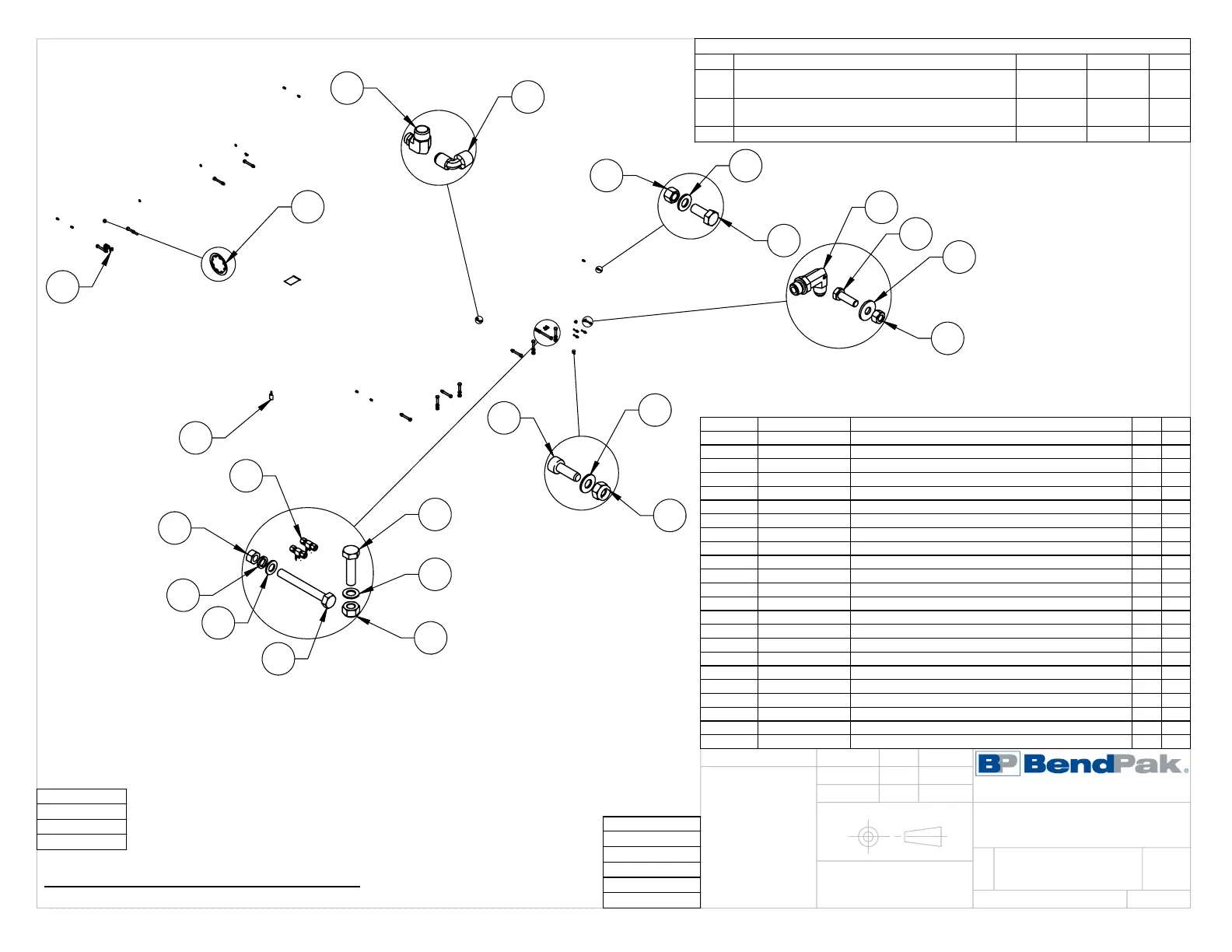

DIMENSIONS ARE IN MM
☺
22
23
DETAIL A
SCALE 1 : 5
2
DETAIL B
SCALE 1 : 5
20
18
19
DETAIL C
SCALE 1 : 5
6
10
3
7
DETAIL D
SCALE 1 : 10
4
21
11
12
9
8
5
16
DETAIL E
SCALE 1 : 5
17
1
DETAIL F
SCALE 1 : 2
14
15
13
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
F
UPDATED TITLE TO REFLECT WHERE USED,
UPDATED NEXT ASSEMBLY
05/15/2018
TS
00945
G
ADDED (4) 5530200,(4) 5545342,(4) 5545350,
(4) 5535106, 5550026 AND 5580012
12/13/2019
TM
01120
H
REMOVED 5550026
08/25/2021
CA
01322
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5550550
FTG ELB -06 JIC -06 NPT
1
--
2 5505032
ROTOR CLIP 18mm SS
4
--
3 5535001
NUT M8 x 1.25 NL
4
--
4 5530743
HHB M20 x 2.5 x 80
4
--
5 5530200
HHB M18 x 2.5 x 150mm
8
--
6 5530010
HHB M8 x 1.25 x 25
4
--
7 5550183
FTG ELB -06 JIC -06L ORB
1
--
8 5545342
WASHER M18 FLAT
8
--
9 5545350
WASHER M18 x 28 SL
8
--
10 5545340
WASHER M8 x24 FLAT
4
--
11 5535017
NUT M20 x 2.5 NL
4
--
12 5535106
HEX NUT M18 x 2.5
8
--
13 5535010
NUT M4 X 0.7 NL
2
--
14 5530008
SHCS M4 x 0.7 x 12 BOC
2
--
15 5545009
WASHER, Ø4.3 x Ø9mm x 0.8mm
2
--
16 5550395
FTG TEE -04 COMP x -04 COMP x -04 COMP
3
--
17 5550089
FTG ELB -04 COMP x -06 NPT
2
--
18 5545341
WASHER M10 x Ø20 FLAT
8
--
19 5530738
HHB M10 x 1.5 x 25
8
--
20 5535013
NUT M10 x 1.5 NL
8
--
21 5545343
WASHER, M20 FLAT
4
--
22 5545535
C WASHER SHIM FOR LIFTS
20
--
23 5580012
LIQUID PTFE THREAD SEALANT 50ml
1
--
NEXT ASSEMBLY
5250079
5250082
5250172
5250175
5250364
WHERE USED
HDS-18E
HDS-27 SERIES
HDS-40 SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
H
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5174600
HDS-18E/27/40
PARTS BAG
05/06/2009
DO NOT SCALE DRAWING
1:50
SCALE:
THIRD ANGLE PROJECTION
OR
09/15/2021
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
