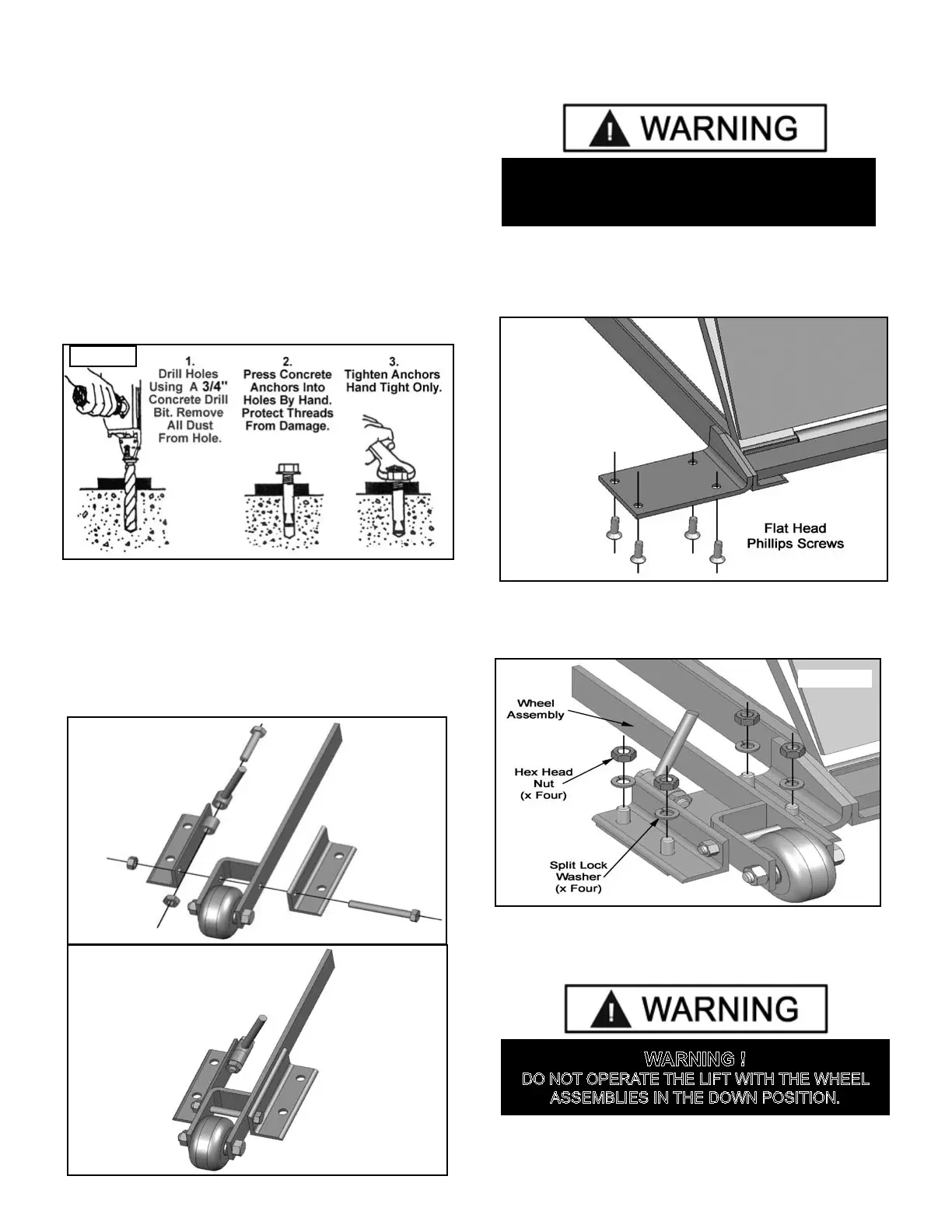

11
STEP 7
(Anchoring Lift, LR-60 Only)
1. Before anchoring lift to the floor, confirm the location
is satisfactory.
2. Using a 3/4” concrete bit, drill the floor using the
holes on the frame as a guide. (See Fig. 7.1)
3. Remove all excess dust from holes, then install the
anchor bolts. (See Fig. 7.1)
4. Tighten the anchor bolts to 25-30 ft.-lbs. using an
open end wrench only. DO NOT use an impact wrench to
tighten concrete anchors. (See Fig. 7.1)
STEP 8
(Installing Wheel Assemblies)
(FOR LR-60-P ONLY)
1. Assemble the two Wheel Assemblies as shown in Fig
8.1 and 8.2.
1. Using Hydraulic Jack or other lifting device, raise the
lift off the Ground approximately 4- 6”.
2. Install the eight Flat Head Phillips Screws (four per
side) up through the Flanges on the inside rails of the Lift.
(See Fig. 8.3)
3. Install the Wheel Assemblies as shown. Install Split
Lock Washers and tighten Hex Head Bolts.
(See Fig. 8.4)
4. Remove any stands / blocks. Lower Lift back on the
ground.
Fig. 7.1
Fig. 8.1
Fig. 8.2
WARNING !
Place lift on blocks or stands BEFORE
proceeding with any work under the lift.
Fig. 8.3
Fig. 8.4
WARNING !
DO NOT OPERATE THE LIFT WITH THE WHEEL
ASSEMBLIES IN THE DOWN POSITION.
