BendPak LR-60P - Assembly View; Specifications

8
QTY DESCRIPTION PART # CHECK
1 Main Frame Assembly -----------
1 Hydraulic Power Unit 5585094
1 Motor Stand 5700635
4 Lifting Blocks 1 1/2” 5300845
1 90* Fitting; 6801-04-06; (Power Unit) 5550103
1 Straight Fitting 2404-04-04; (Cylinder) 5550147
4
M8 x 1.25 x 20 Hex Head Bolts (Power Unit)
5530304
4
M8 x 1.25 Hex Head Nuts (Power Unit) 5535356
4 M8 Flat Washer (Power Unit) 5545340
1 Hydraulic Hose Assy. ( 6.35 x 3640mm) DS 143” 5570863
3 3/4” x 4” Wejit Anchors 5530455
1 Tow handle (LR-60P Only) 5210863
2 Wheel Assemblies (LR-60P Only) 5210907
LR-60P Shown
SPECIFICATIONS LR-60 LR-60-P
Lifting Capacity 6,000 Lbs. 6,000 Lbs.
Lifting Height 26” 26”
Lifting Time 36 Seconds 36 Seconds
Frame Dimension 81-1/2” x 18” 81-1/2” x 18”
Lift Pad Dimensions 18” x 32” 18” x 32”
Lowered Height 4” 4”
Safety System Mechanical Locks Mechanical Locks
Hydraulic Power Unit 110/220 Volt / 60HZ / 1 Phase 110/220 Volt / 60HZ / 1 Phase
Fluid Capacity 1-1/2 Gallons 1-1/2 Gallons

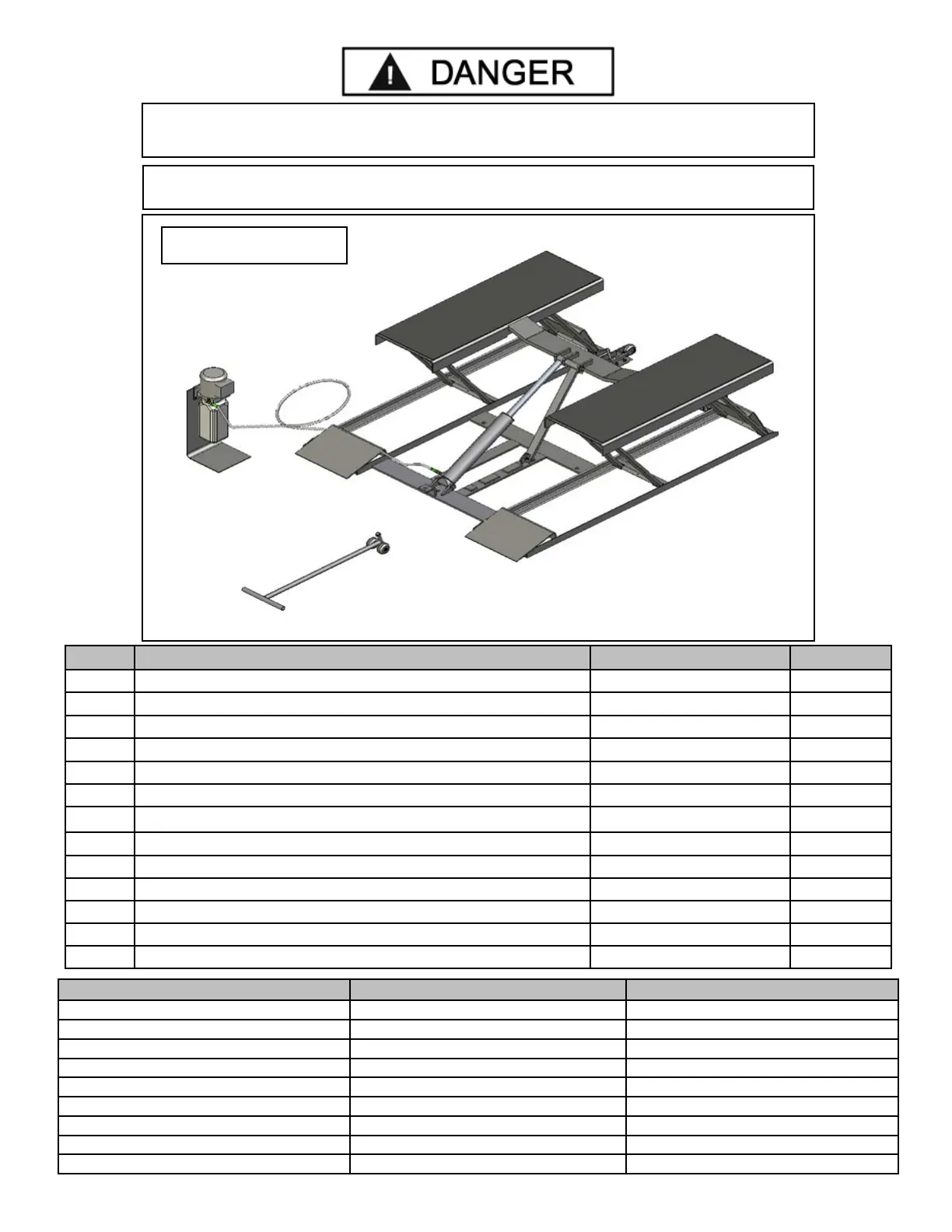

Assembly View
When removing the lift from packaging pay close
attention as the lift can slide and can cause injury.
PARTS INVENTORY
Be sure to take a complete inventory of parts prior to beginning installation.
