PL-12000DP Series Parking Lift 32 P/N 5900285 — Rev. A1 — February 2023

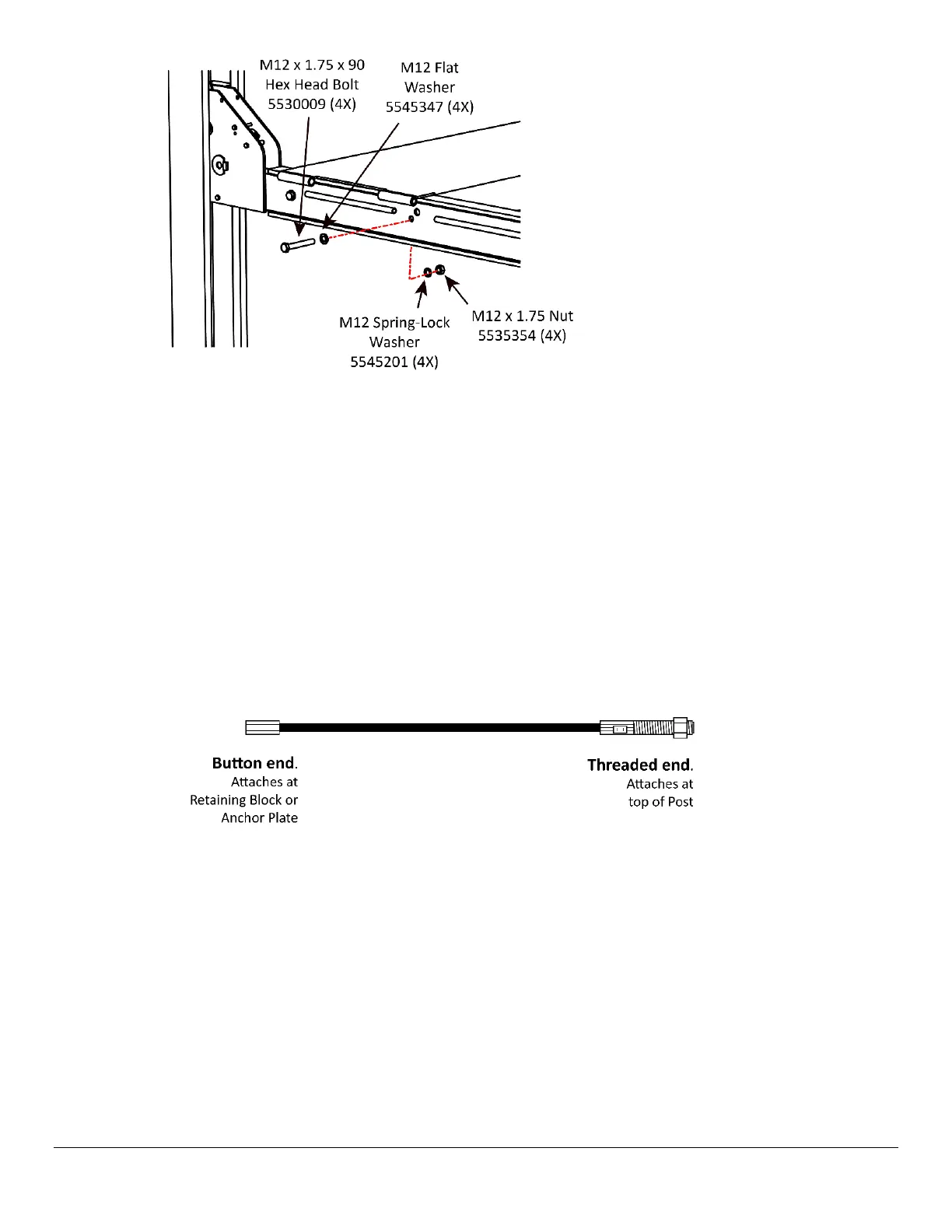

Front view. Not all components are shown.
6. Bolt the Offside Runway into place, using four more M12 Hex Head Bolts and Lock Washers.
7. Make sure the Primary Safety Locks are engaged.
Do not allow anyone under the Runways unless the Safety Locks are engaged.
Routing the Lifting Cables
Before routing the Lifting Cables on your Lift, understand the following:
• Each Platform uses four Lifting Cables. Therefore, all Cables are specific lengths and only allow
one correct connection and routing.
• All four Lifting Cables include both a Button-end and a Threaded-end. The Threaded end has a
label attached that identifies the Lift model that the specific Cable is designed for, the part number
(if needed), and the respective length (millimeters).
• The Threaded end of each Lifting Cable attaches to its paired Cable Sheave (or Sheaves) and then
is routed to a Post. There are two types of Sheaves. These are Cable Sheaves and Gusset
Sheaves.
• A Retaining Plate secures the Button ends of the Cables in place after all four Cables are installed.
Do not take the Retaining Plate off to install the Cables.
Instead, loosen it so that it
can slip to the Button end of the Cable into the correct slot.
• Cable Sheaves and Gusset Sheaves arrive installed but must be removed prior to installing the
Runways. These are installed as each Lifting Cable is routed.
• Each Platform has a set of Double Cable Sheaves in the Crosstube with Large Windows.
• The two Lifting Cables that share a Double Cable Sheave (Lifting Cables A and C, then Lifting
Cables B and D) are routed around the same time in order to reinstall the Double Cable Sheaves.
