• Each Crosstube Gusset has a Cable Lock Pin underneath the Gusset Sheave. Each Cable Lock
Pin needs to be removed when routing the Cable to its Post. Reinstall the Cable Lock Pin once the
Cable is in place.
• The Cable Lock Pin prevents the Cable from coming out; there is not enough space between the
bottom of the Gusset Sheave and the Cable Lock Pin for the Cable to slip out.
• In the following drawings, the Lifting Cables and Cable Sheaves are labeled A, B, C, and D. These
letters are
not
on the label on the Threaded end. Match the Cable letter with the provided length
information.

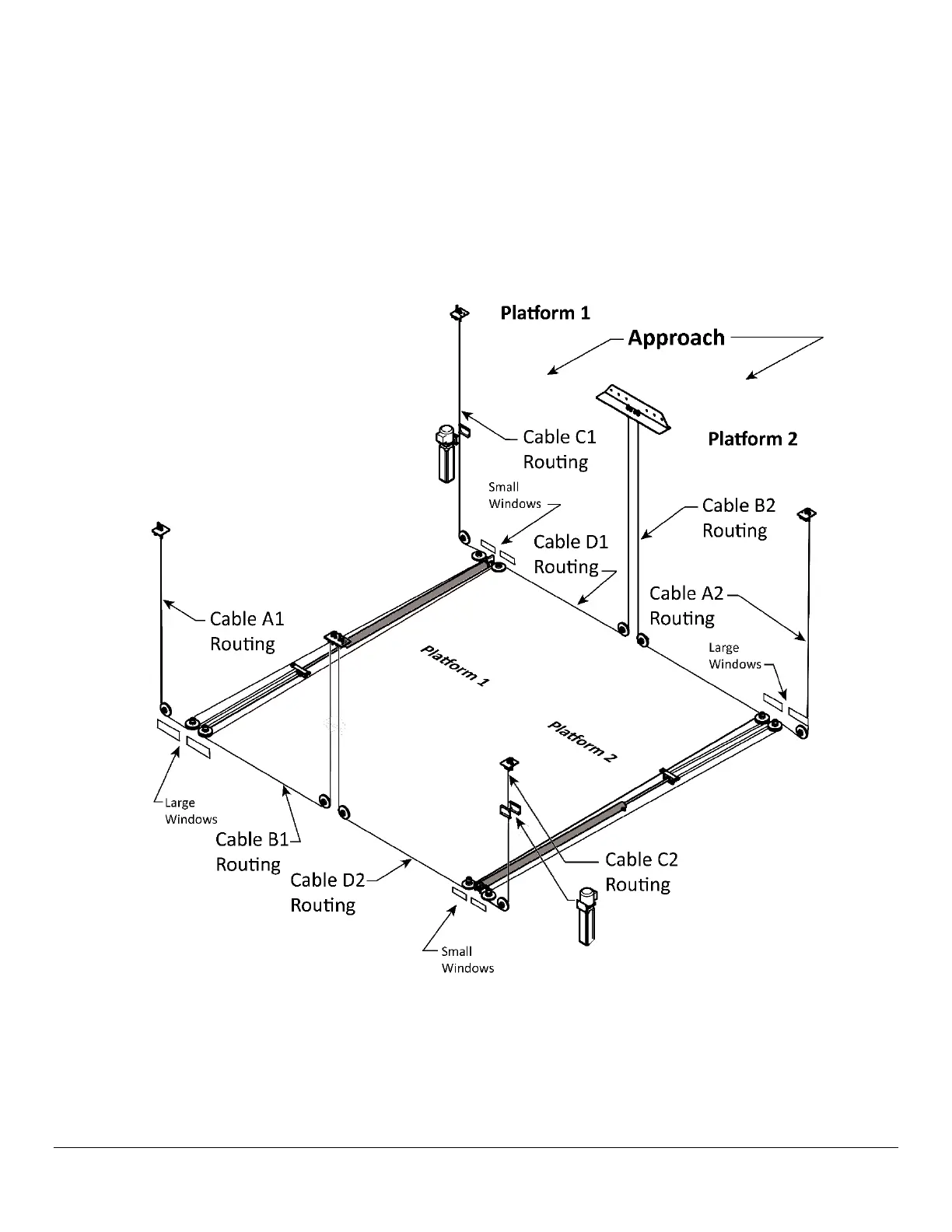

The following graphic details the cable routing and identifications for both Platforms (not all
components shown).
