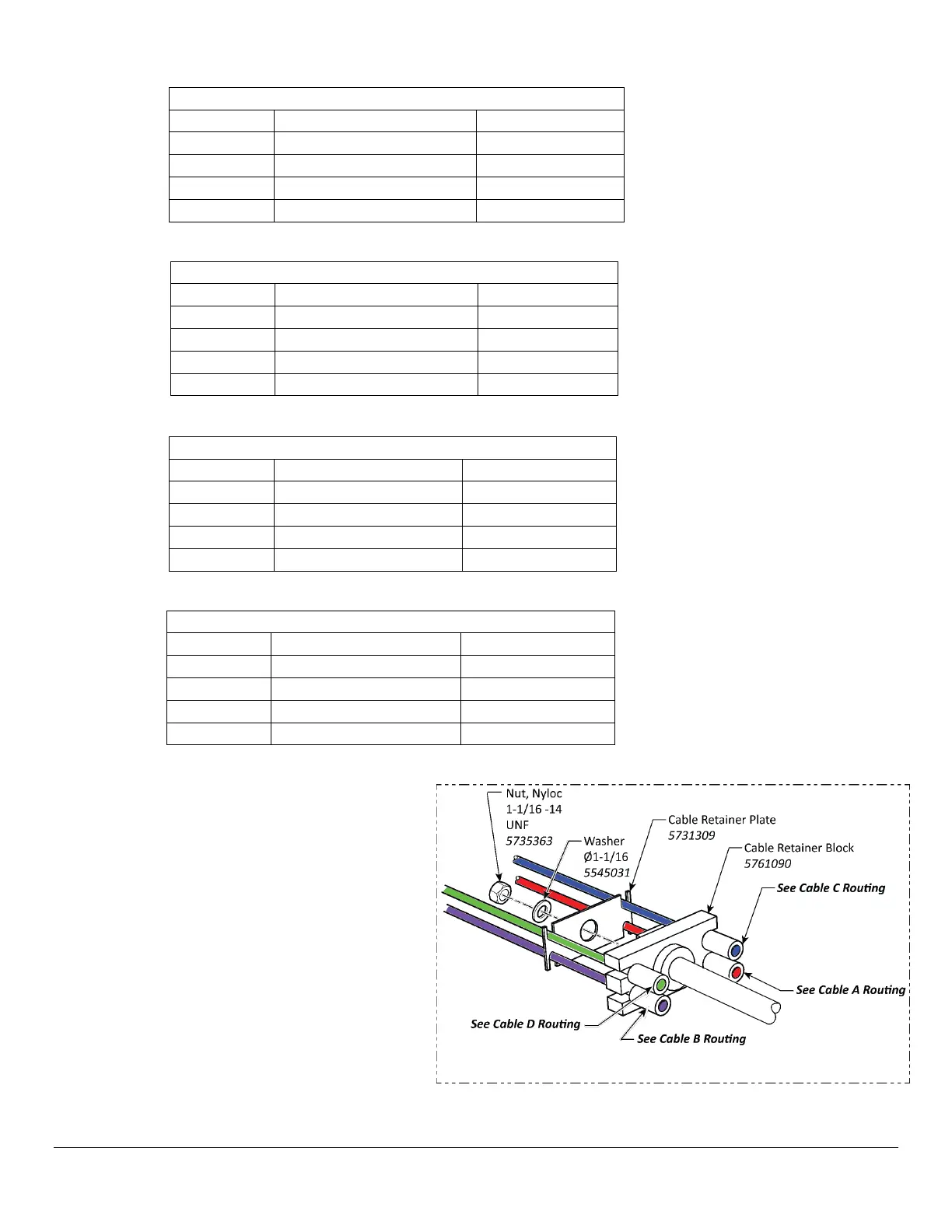

PL-12000DP Series Parking Lift 34 P/N 5900285Rev. A1 — February 2023
Lifting Cables for the PL-12000DP
Platform 1
Cable
Length
Cable A1
153.50 in. / 3,900 mm.
Cable B1
217.00 in. / 5,515 mm.
Cable C1
316.00 in. / 8,031 mm.
Cable D1
379.50 in. / 9,637 mm.
Platform 2
Cable
Length
Part Number
Cable A2
129.25 in. / 3,283 mm
5595713
Cable B2
192.50 in. / 4,892 mm
5595715
Cable C2
341.00 in. / 8,665 mm
5595717
Cable D2
404.00 in. / 10,257 mm
5595719
Lifting Cables for the PL-12000DPS
Platform 1
Cable
Length
Part Number
Cable A1
117.75 in. / 2,990 mm.
5595748
Cable B1
181.50 in. / 4,610 mm.
5595751
Cable C1
280.50 in. / 7,123 mm.
5595624
Cable D1
343.50 in. / 8,722 mm.
5595736
Platform 2
Cable
Length
Part Number
Cable A2
93.25 in. / 2,368 mm.
5595741
Cable B2
156.50 in. / 3,977 mm.
5595739
Cable C2
305.00 in. / 7,750 mm.
5595737
Cable D2
364.75 in. / 9,262 mm.
5595735
The Retaining Block holds the
Button Ends of the Cables in
place; once installed.
Do not
take the Cable Retaining
Plate or the Cable Retaining
Block off to install the
Cables
; instead, loosen it to
allow slipping the Button end of
the Cable into the correct slot.
