PL-12000DP Series Parking Lift 36 P/N 5900285 — Rev. A1 — February 2023

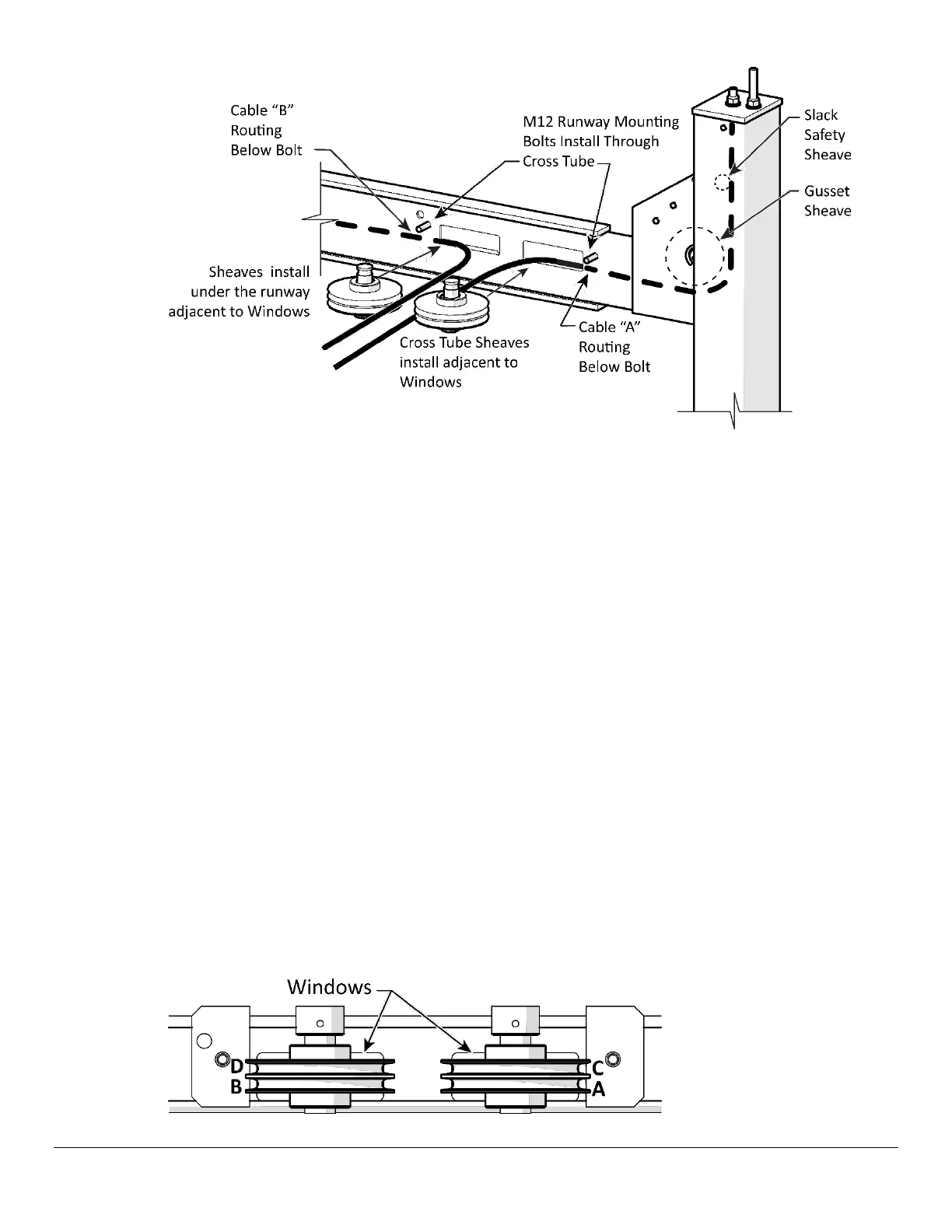

Do not scale. Some components removed for clarity.
5. With the Lifting Cable properly in place, lubricate the Sheave Pin with red lithium grease and
reinstall the Gusset Sheave and the Cable Lock Pin in Post A.
6. Make sure Lifting Cable A is correctly positioned: in between the Gusset Sheave and the Slack
Safety Sheave, with the Cable Lock Pin
under
it.
7. Push the Threaded End of Lifting Cable A up to and through the Top Cap (at the top of the Post)
and
hand tighten
it in place with the Nut and Washer removed earlier.
Hand tighten the Nut at this point so that there is little play in the cabling. Installer will adjust all four
Nuts later in the installation procedure.
8.
Switching to Lifting Cable C
, repeat Steps 1 through 7 for Lifting Cable C, starting at the
Small Window near the bottom of Post C (the Power Post).
9. Reinstall the Cable Sheave and then make sure Lifting Cable C is correctly positioned in the Cable
Sheave in the Small Window.
10. Under the Powerside Runway, move the rest of Lifting Cable C back towards the Crosstube with
Large Windows.
11. Push Lifting Cables A and C into the Large Window where the Double Cable Sheave goes and pull
the Button ends towards the Retaining Plate.
12. With the Cables in place in the Large Window, lubricate the Sheave Pins with red lithium grease
and reinstall the Double Cable Sheave.
Make sure Lifting Cable A rides in the bottom Sheave, and Cable C is in the top Sheave.
The following drawing shows how to route the Lifting Cables around the Double Cable Sheaves.
