PL-12000DP Series Parking Lift 44 P/N 5900285 — Rev. A1 — February 2023

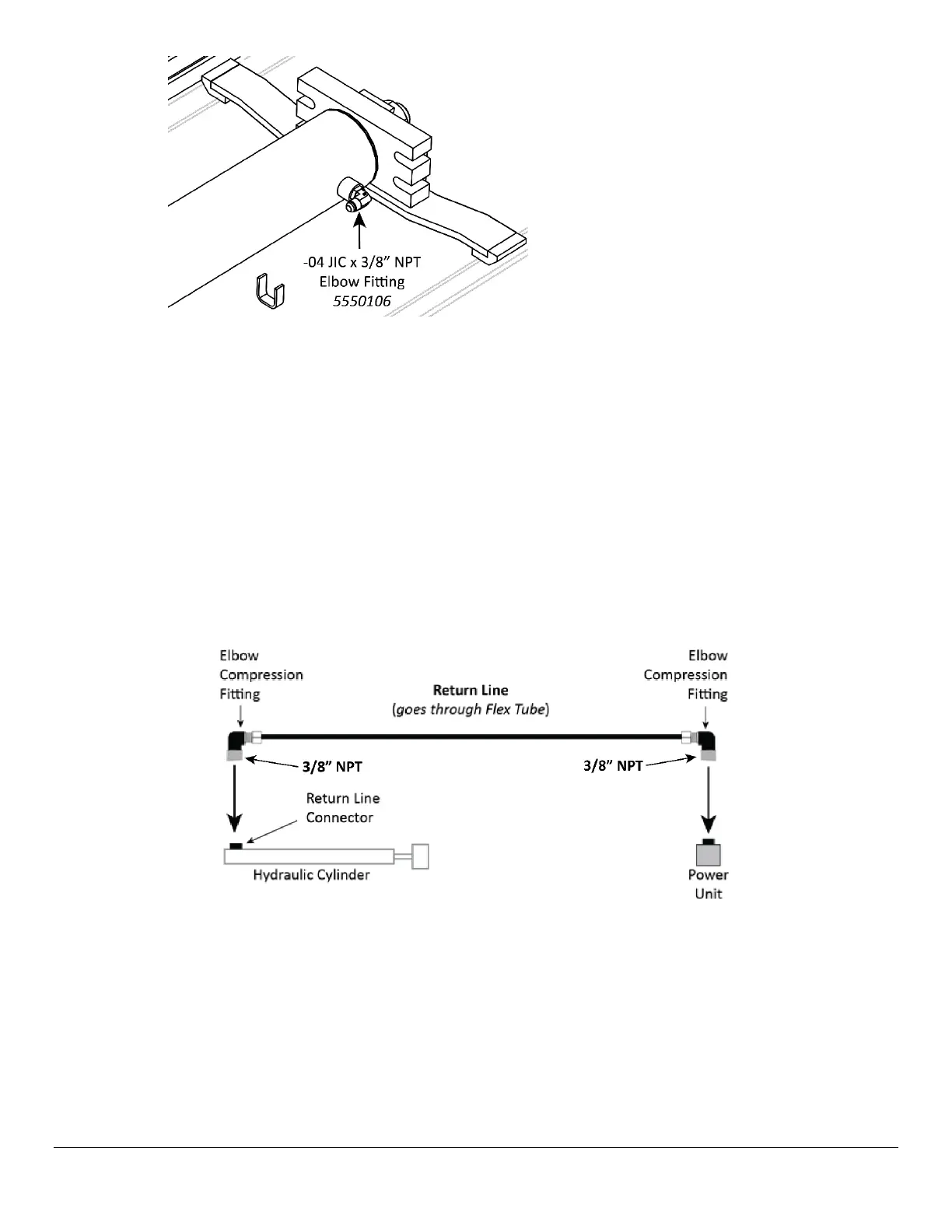

View is from underneath the Powerside Runway. Not all components are shown.
5. Attach the Straight end of the Hydraulic Hose to the JIC end and tighten it.
6. Take the Curved end of the Hydraulic Hose and, starting at the Hydraulic Cylinder, route the
Curved end through the Retaining Rings along the inside edge of the Runway and then through the
Flex Tube opening.
NOTICE Once completed, the Curved end should exit the Flex Tube opening near the Power Unit.
7. Leave the Curved end of the Hydraulic Hose leaving the Flex Tube opening for now.
Setting Up the Hydraulic Return Line
The Return Line routes excess Hydraulic Fluid from the Hydraulic Cylinder (attached opposite the Port
at the Piston Rod end) and transfers it back into the Fluid Reservoir on the Power Unit.
To assemble and install the Return Line, requires the following components:
• The Return Line. 5570795. The Return Line assembly will encompass a single piece of ¼ in.,
black, polyethylene Tubing with Elbow Compression Fittings on each end.
• (2X) COMP to NPT Elbow Fittings. 5550089. The COMP end connects the Return Line and
the NPT end connects to the Power Unit and the Hydraulic Cylinder.
