PL-12000DP Series Parking Lift 45 P/N 5900285 — Rev. A1 — February 2023
Important: The Return Line uses the same ¼ in., black, polyethylene Tubing as the Air Lines. Be
sure not to confuse the two; the Return Line and the Air Lines perform different
functions and
must
be kept separate from each other.

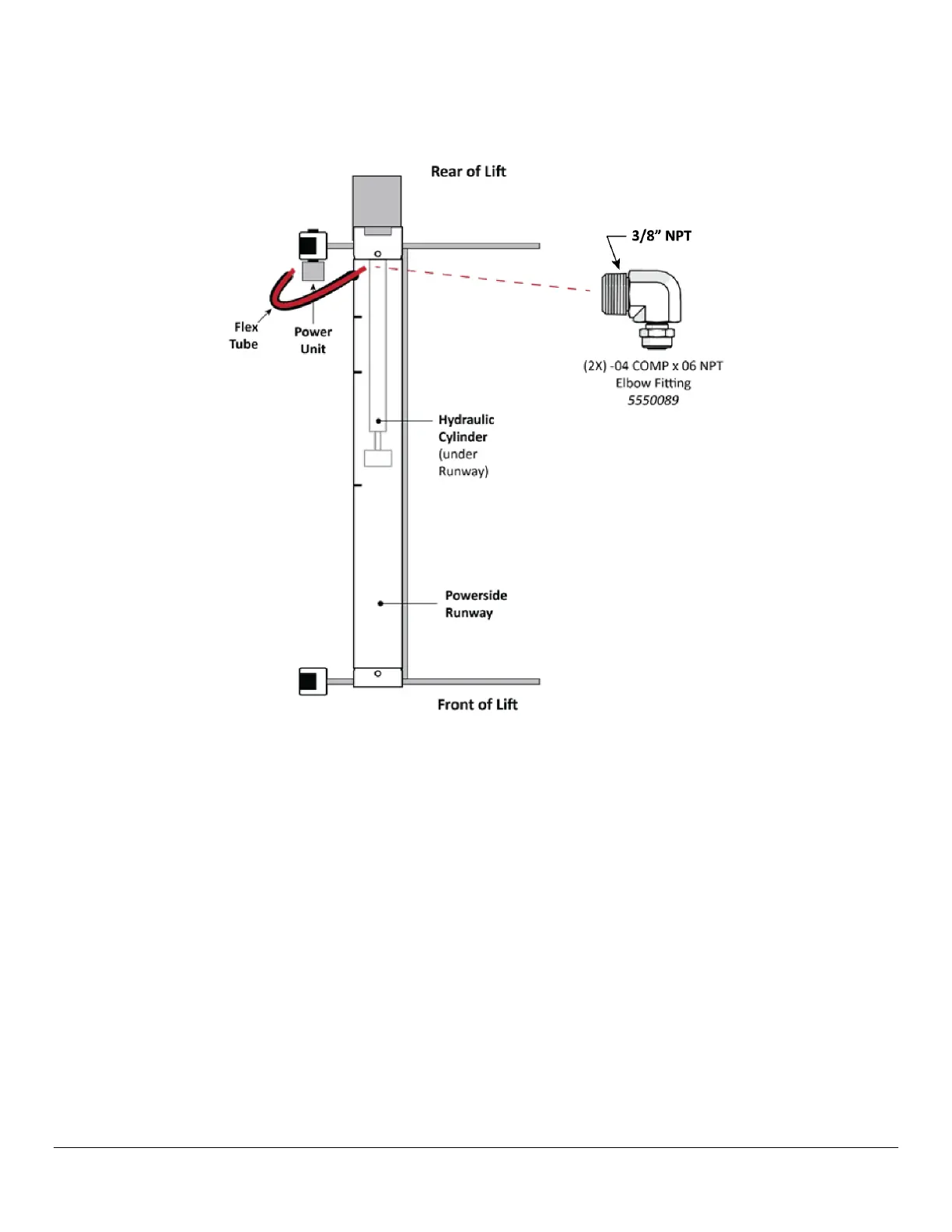

Drawing shows a top view of the Powerside Runway. Not drawn to scale. Not all components shown.
To make and install the Return Line:
1. Measure the distance from the Return Line Port on the Hydraulic Cylinder to the Return Line Port
on the Power Unit.
2. Cut a piece of Tubing to the measured length from the roll of Tubing that comes with the Lift.
Note: It is better to cut the Tubing a little too long rather than a little too short.
3. Route the Tubing from the Hydraulic Cylinder through the Flex Tube opening, and out next to
where the Power Unit will be installed.
4. Remove the Shipping Plug from the Return Line Port on the Hydraulic Cylinder, then tighten and
connect the Compression Elbow Fitting (5550089) into the Port where the Shipping Plug was.
5.
Note:
Install all Elbow Fittings so that they are correctly tightened and positioned (clocked) to allow
adjoining hose fittings to properly align.
