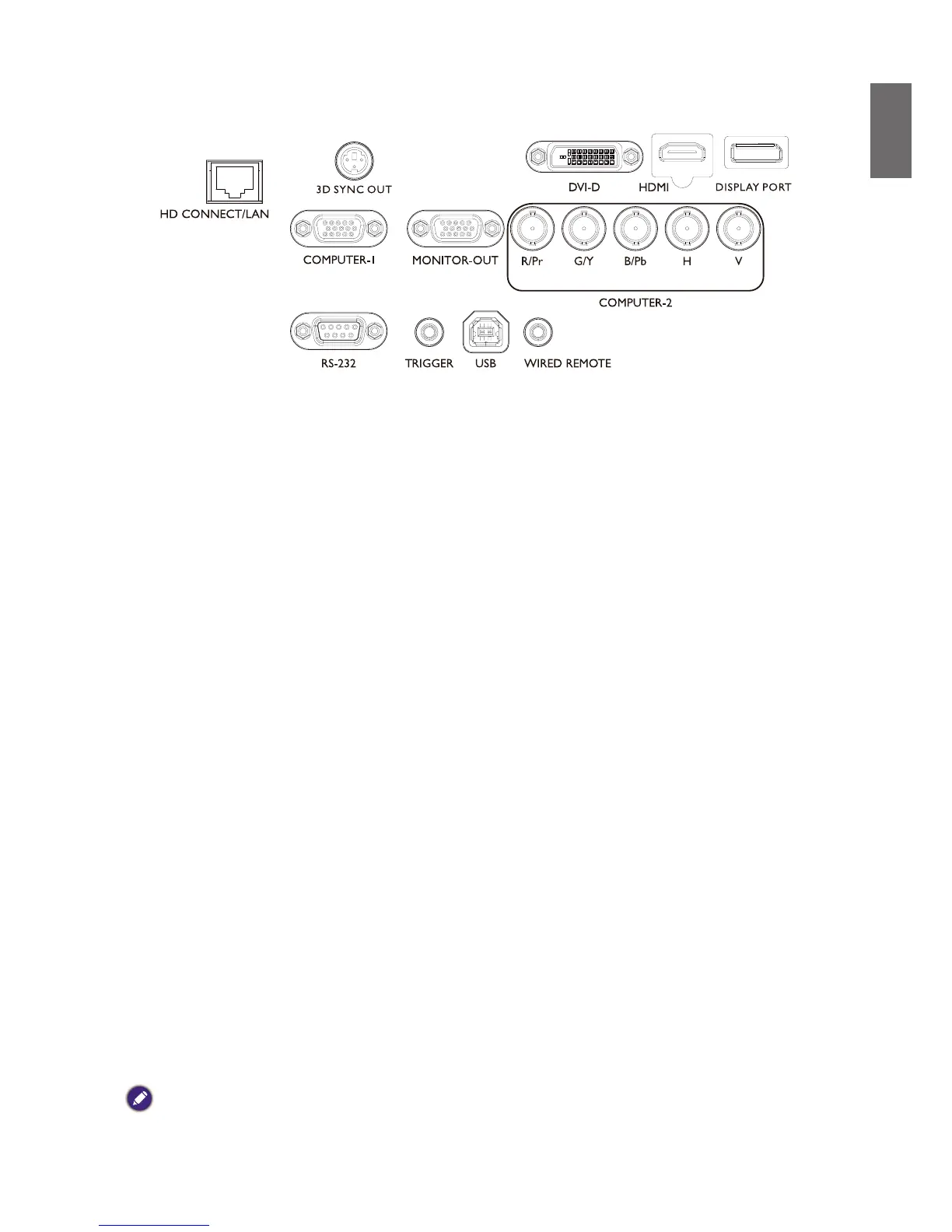

IO panel
• HD Connect/Lan
ForconnectiontoRJ45Cat5/Cat6Enthernetcabletoinputuncompressedhigh-denitionvideo
(HD), control signals.
• 3D Sync Out
Connection to 3D IR sync signal transmitter.
• DVI-D
Connection to DVI source.
• HDMI
Connection to HDMI source.
• DisplayPort
Connection to device or PC featuring DisplyPort.
• Copmuter-1
15-pin VGA port for connection to RGB, component HD source, or PC.
• Monitor Out
Connection to other display equipment for concurrent playback display.
• Computer-2(R/Pr, G/Y, B/Pb, H, V)
Connection to RGB or YPbPr/YCbCr output signal with BNC type input terminal.
• RS-232
Standard 9-pin D-sub interface for connection to PC control system and projector maintenance.
• TRIGGER
3.5mm mini earphone jack, employs 350mA display relay to provide 12(+/-1.5)V output and
short circuit protection.
• USB
Maintenance exclusive port for authorized maintenance personnel only.
• WIRE Remote
Connection to input Niles or Xantech compatible IR repeater system.
Caution:
Make sure the port is valid before inserting a wired remote controller. The remote controller may
be damaged in case of an invalid port, e.g. a wired remote controller is connected to trigger output.
