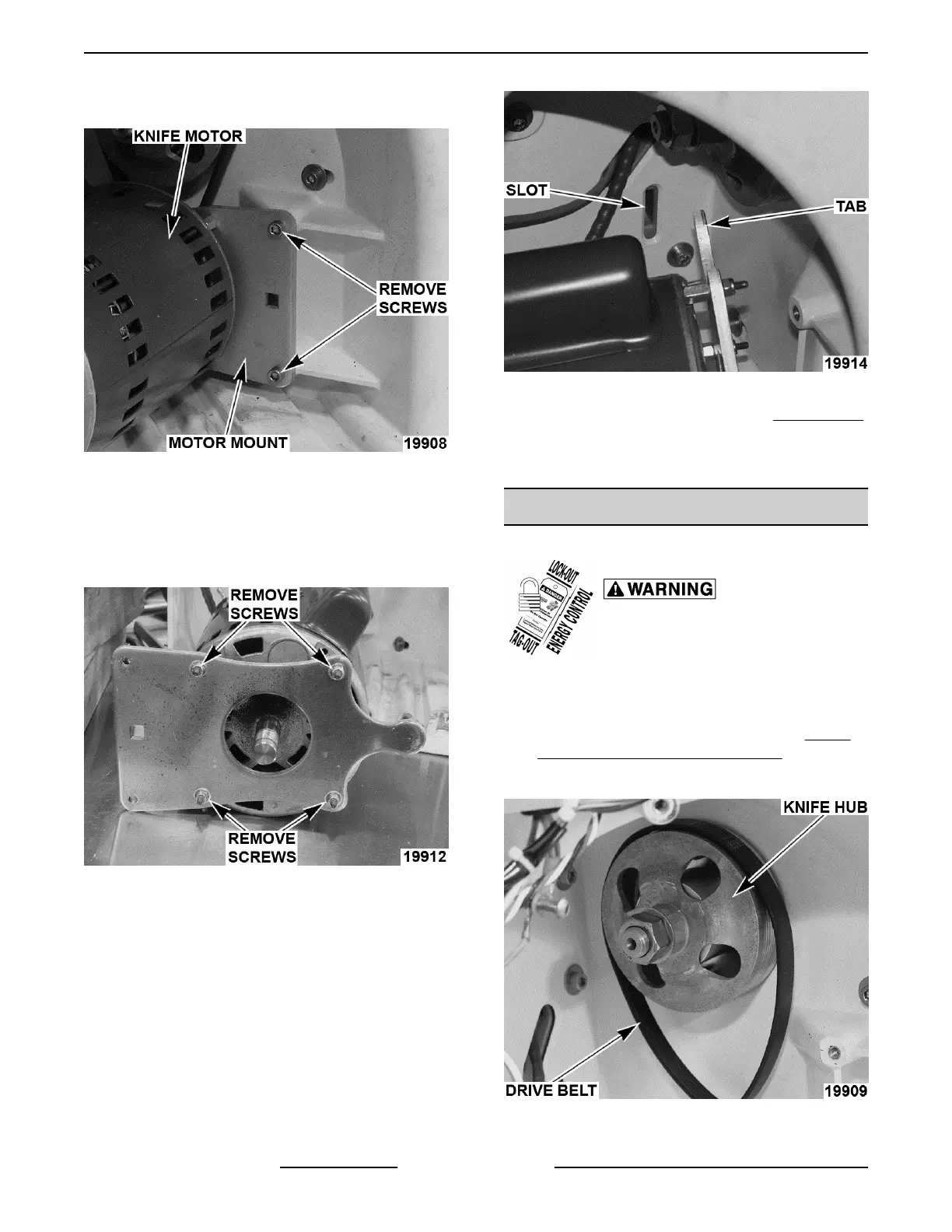

4. Remove screws securing motor and mount
assembly to slicer.
Fig. 41
5. Remove motor and mount assembly.
6. Remove screws securing mount to motor.
NOTE: Orientation of motor mount to motor capacitor
for reassembly/ installation.
Fig. 42
7. Remove mount from motor.
Motor and Mount Assembly Installation
1. Install motor mount to motor.
2. Install motor and mount assembly with drive belt
around motor shaft.
NOTE: Make sure tab on motor mount enters slot in
slicer base.
Fig. 43
3. Install drive belt as outlined under DRIVE BELT.
4. Connect motor lead wires to control board.
5. Check slicer for proper operation.
DRIVE BELT
Drive Belt Removal
Disconnect the electrical power to
the machine and follow lockout /
tagout procedures.
NOTE: Some knife hub assemblies are secured with
an e-clip instead of a nut.
1. Remove knife motor as outlined under KNIFE
MOTOR AND MOUNT ASSEMBLY .
2. Remove drive belt from knife hub.
Fig. 44
Drive Belt Installation
X13 SLICER - REMOVAL AND REPLACEMENT OF PARTS
F25332 Rev. A (0718) Page 18 of 36
