20

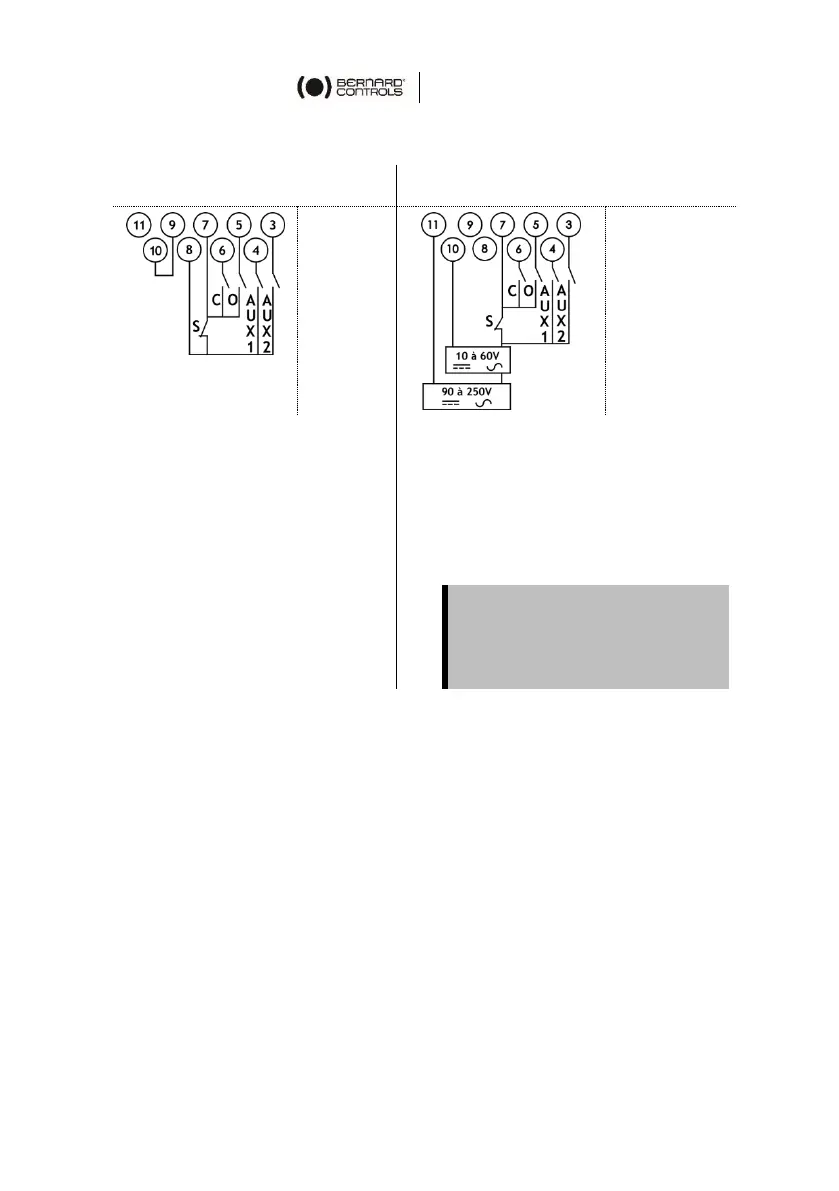

4.5.2 Auxiliary remote controls
Dry contact control
Voltage control
S - Stop
C - Close
O - Open
S - Stop
C - Close
O - Open
A jumper must be fitted
across customer terminal 9-
10.
Remote control can use either in AC
or DC voltage :
 Use terminal 10 for voltage
from 10 to 60V
 Use terminal 11 for voltage
from 90 to 250V
!
It is imperative to comply with
voltage ranges mentioned
above, otherwise component
will not function or will be
damaged.
