4.5 Remote controls
The AQ Logic remote control system can be operated using an
external or an internal voltage supply.
The input circuits are fully opto-isolated. The self-hold pulse
command system requires 4 connecting wires on the client terminal
strip: Common, STOP, OPEN and CLOSE. If the STOP push-button is
not used, do not connect the STOP wire, OPEN (or CLOSE) contact
must be maintained to operate the actuator.

These commands are self-holding (pulse commands) as a standard.
To remove self-holding, remove wire to terminal 7.

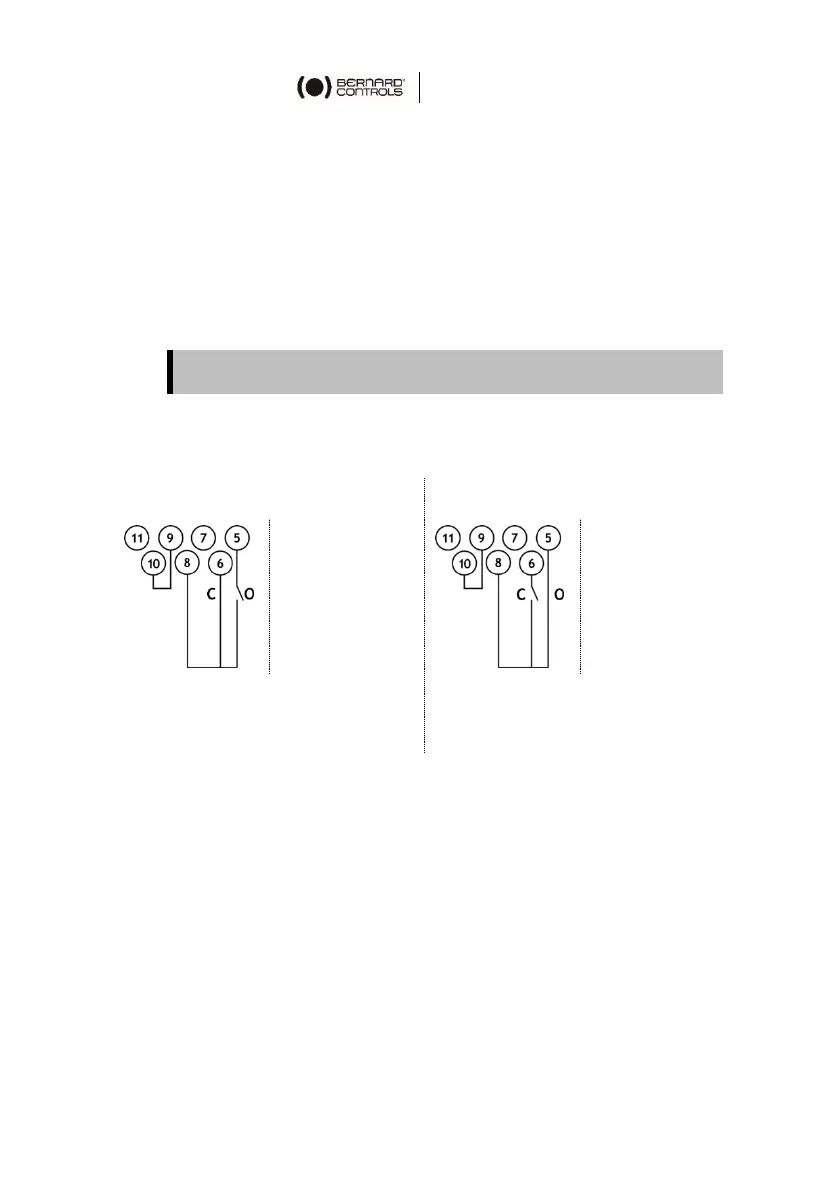

4.5.1 Single switch control
The actuator can be controlled via a single external switch.
Opening
Closing
O : Open
C : Close
O : Open
C : Close
 Switch closed: valve opens
 Switch open: valve closes
 Switch closed: valve closes
 Switch open: valve opens
 The actuator has to be configured for the priority type
required (open or close). See to open (see §5.8)
