4.2 Control modes
AQ logic can be controlled locally or remotely.
Mode is set using Control selector on the control
panel. It can be locked using a padlock located at
the bottom of control panel.
Modes are:
Local mode with control panel or Smartphone via Bluetooth®
connection
Remote mode
Forced local mode when in Remote mode using the Application
This mode requires first to be authorized, see §5.11
The 3 modes allow to read settings, but they can be modified in
Local mode only.

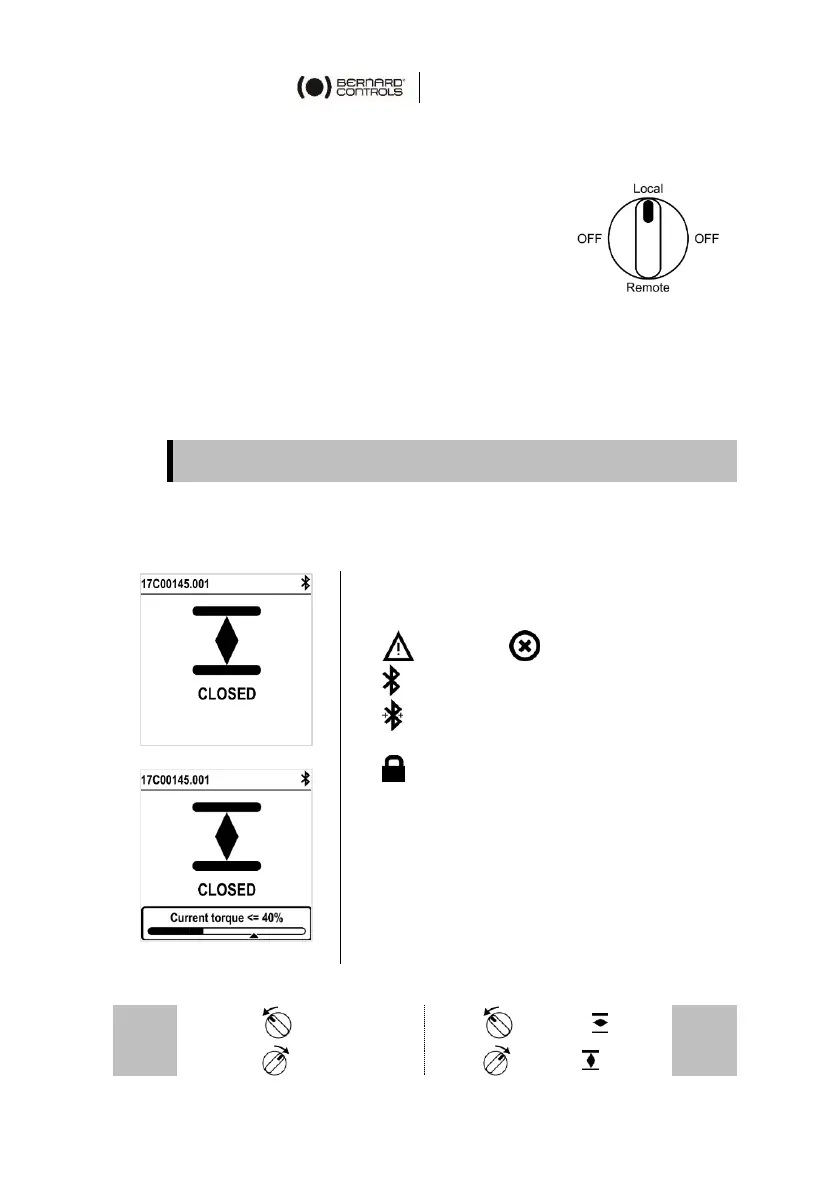

4.3 Local control with Control panel
4.3.1 Operation
Operation screen indicates…
Top: actuator id and status icons
: warning / : alarm
: Bluetooth® activated
: Bluetooth® activated with device
connected
: Local control inhibited
Center: current position of the valve,
either CLOSED, current percentage
between 0 and 100% depending on
the travel direction, or OPEN
Bottom (from AQ25): torque level
with a torque gauge and an arrow
marker to indicate torque limit set
Knobs use
