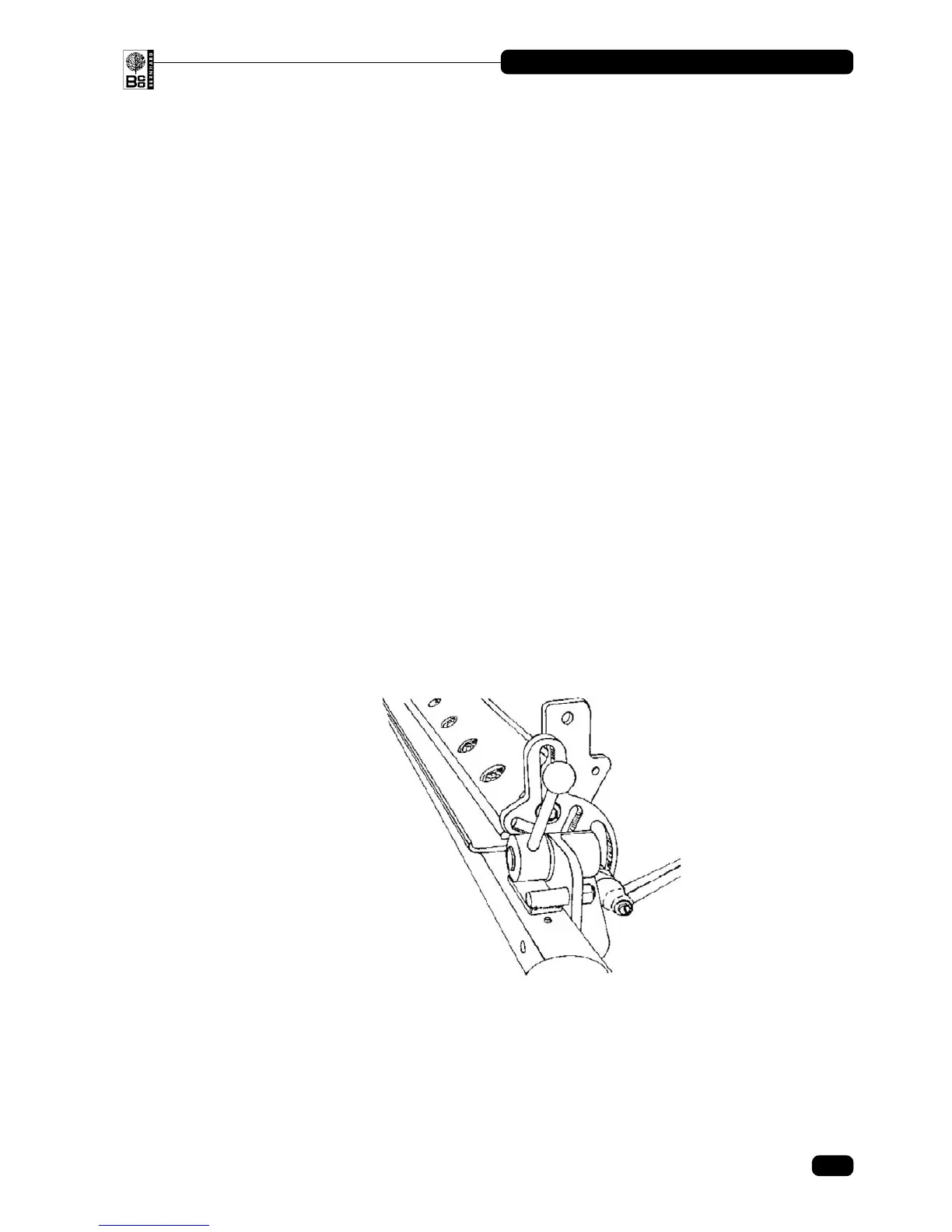

3.2.10 Quadrant Brackets
If using the quadrant brackets:
Loosen the ball lever of the left-hand sole plate bracket by pushing down, and slide the
assembly up to the left-hand end of the bedbar.
Slacken the quadrant locking lever and swing the quadrant until a bedbar xing hole aligns
with one of the slots.
Tighten the sole plate and quadrant and fasten the bedbar with a suitable bolt.
Repeat the procedure for the right hand bracket, ensuring that, when both ends are
tightened, the bedknife is still resting on the mounting bar.
(In order to minimize the possibility of distorting very light bedbars, it is advisable to t a
at washer between bedbar and mounting quadrant).
3.2.11 Rotate the two spring loaded alignment stops to that they retract and sit against the front of
the mounting bar (beneath the overhang of the bedknife).
When the grinding motor is started, the electromagnets will de-energize so that they do not
adversely affect the straightness of the bedknife or grind.
When the grinding motor is stopped, the electromagnets will re-energize, holding the
bedknife assembly so that it can be easily unbolted from the quadrant brackets.
3. Setting Up (Continued)
11
ANGLEMASTER • AM3000
© Bernhard and Company Limited
