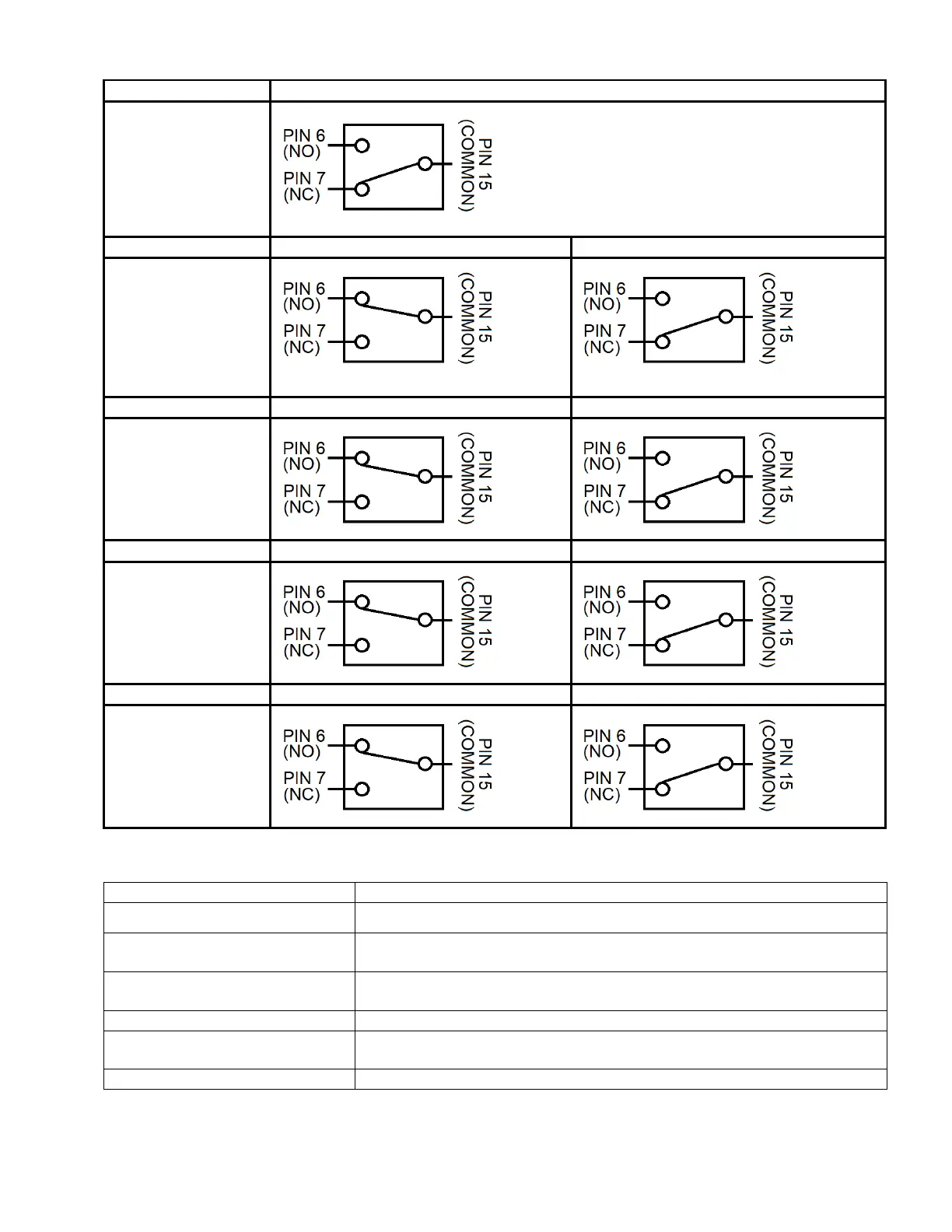

Parallel Relay states
Relay Mode
Relay Pin State on J19 Auxillary
Off
Power
Power On
Power Off
Print On
HV Enabled
HV Disabled
Warning
Warning Prompt
No warning Prompt
Fault
Fault Prompt
No fault Prompt
Relay Specification
Initial contact resistance, max.
Max. 50 mΩ (By voltage drop 6 V DC 1A)
Nominal switching capacity
2 A 30 V DC (resistive load)
Max. switching power
60 W, 125 VA (resistive load)
Max. switching voltage
220 V DC, 250 V AC
Max. carrying current
3 A
Min. switching capacity (Reference
value)
10µA 10mV DC
Nominal operating power
Single side stable (M type: 400 mW, S type: 200 mW);
