BestCode Next Series 8 Technical Manual October 2022 Page 264 of 290
Shaft Encoder Setup Guide
Determining the Minimum Width value
1. After mounting the shaft encoder to a true motion reference (regardless of the great ratio), the first step in
setting up the Printer for use with a shaft encoder is determining the Transport Frequency

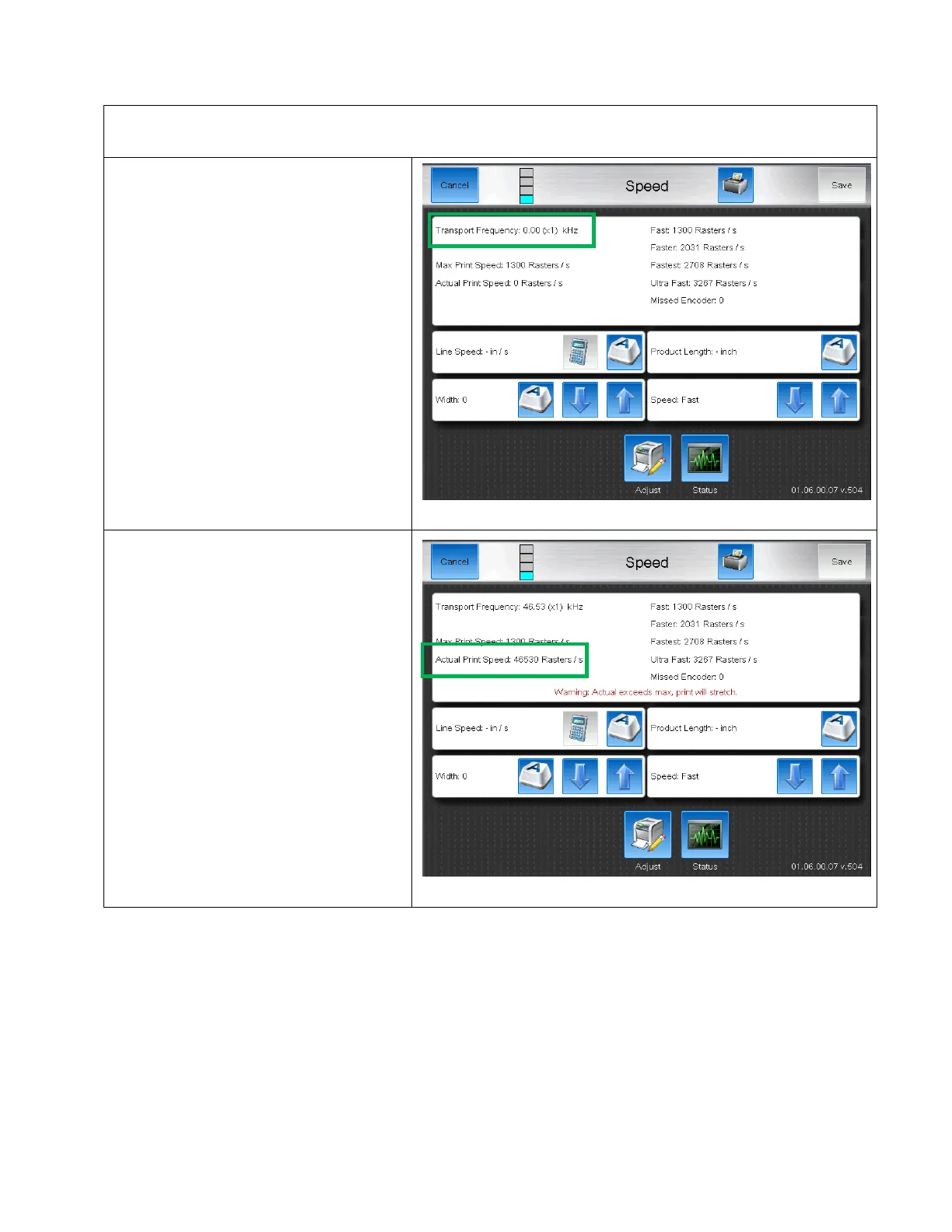

2. Transport Frequency can be viewed on
the Speed screen.
3. With the printer not jetting, and with
the Shaft Encoder mounted to the line,
operate the line at maximum speed.
For example, the image to the right
shows a measured transport frequency
of 46.53kHz (x1).
