BestCode NExT 82 - Single Sensor Speed Screen

BestCode Next Series 8 Technical Manual October 2022 Page 50 of 290

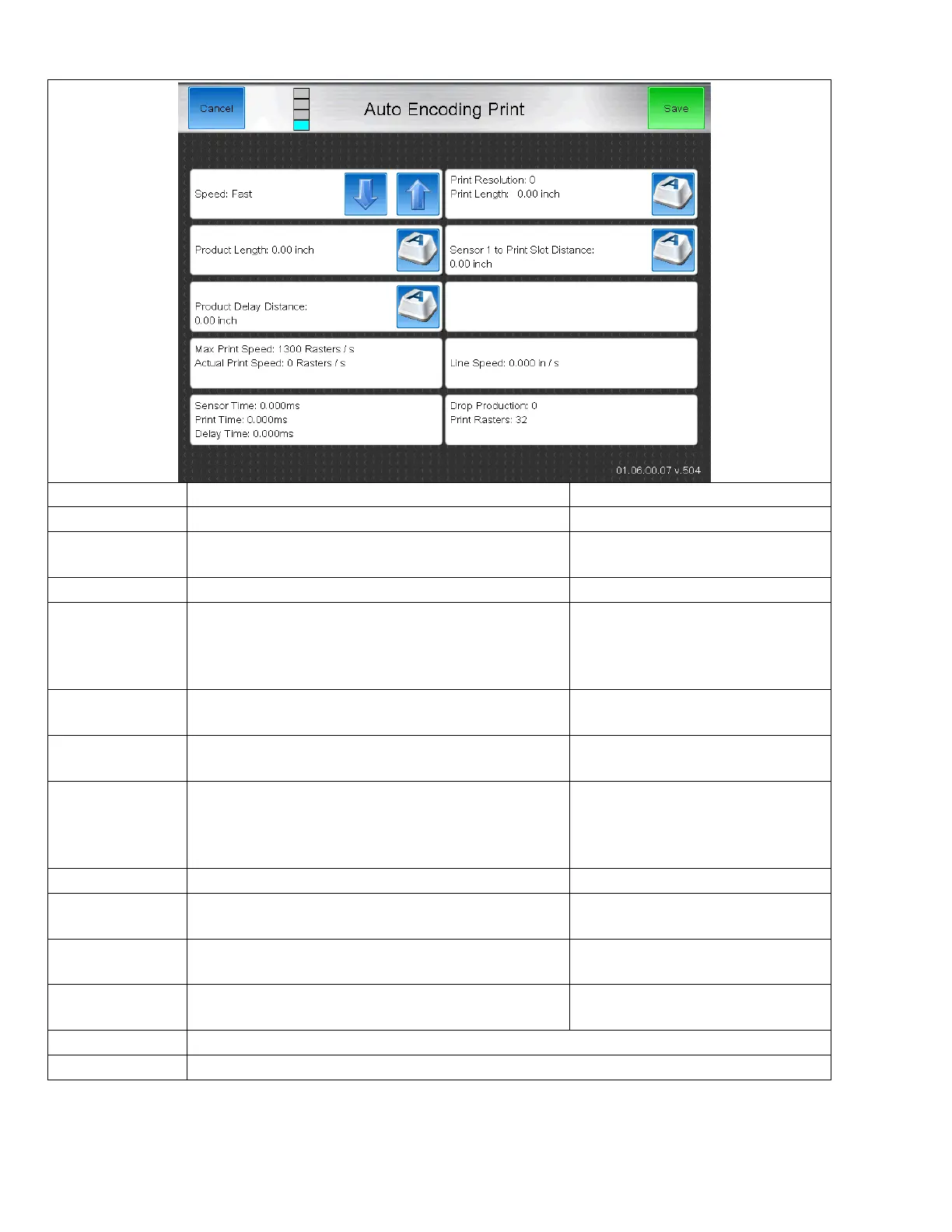

Single Sensor Speed Screen
Speed
Print Speed Setting
Fast, Faster, Fastest, UltraFast
Print Resolution
The number of Printed rasters per 1 inch.
30-120 (typical)
Print Length
Displays the length of the message based on the
provided Print Resolution
0.1 – 320 inches
Product Length
The length of the product to be coded.
0.05-50.00 inches
Sensor 1 to Print
Slot Distance
Distance between the Print Detect location and the
Slot where drops exit the printhead. Must be a
distance longer than the Product length and the
Product delay combined.
0.05-50.00 inches
Product Delay
Distance
The distance from the product edge to the beginning
of the code.
0.05-50.00 inches
Max Print Speed
The maximum print speed capacity for the selected
“Speed” setting (Fast, Faster, Fastest, UltraFast)
Varies by Template
Actual Print
Speed
The necessary Raster /s Print speed to meet the Print
Resolution requested.
If this value is Greater than the
Max Print Speed, the Speed Setting
must be increased (Fast => Faster,
etc)
Line Speed
Displays the calculated converyor line speed
0.000 – 9999.999 in/s
Sensor Time
The amount of time for the product to pass the Print
Sensor.
0.001ms to 10000 ms.
Print Time
The duration of the time while the printer was
applying the code.
-
Delay Time
The amount of delay time in milliseconds to achieve
the desired print location
-
Drop Production
Total number of drops used to generate the printing message
Print Rasters
Message Length in Rasters. Used for internal calculations
