2
OPERATION
18
GB
MAIN PARTS

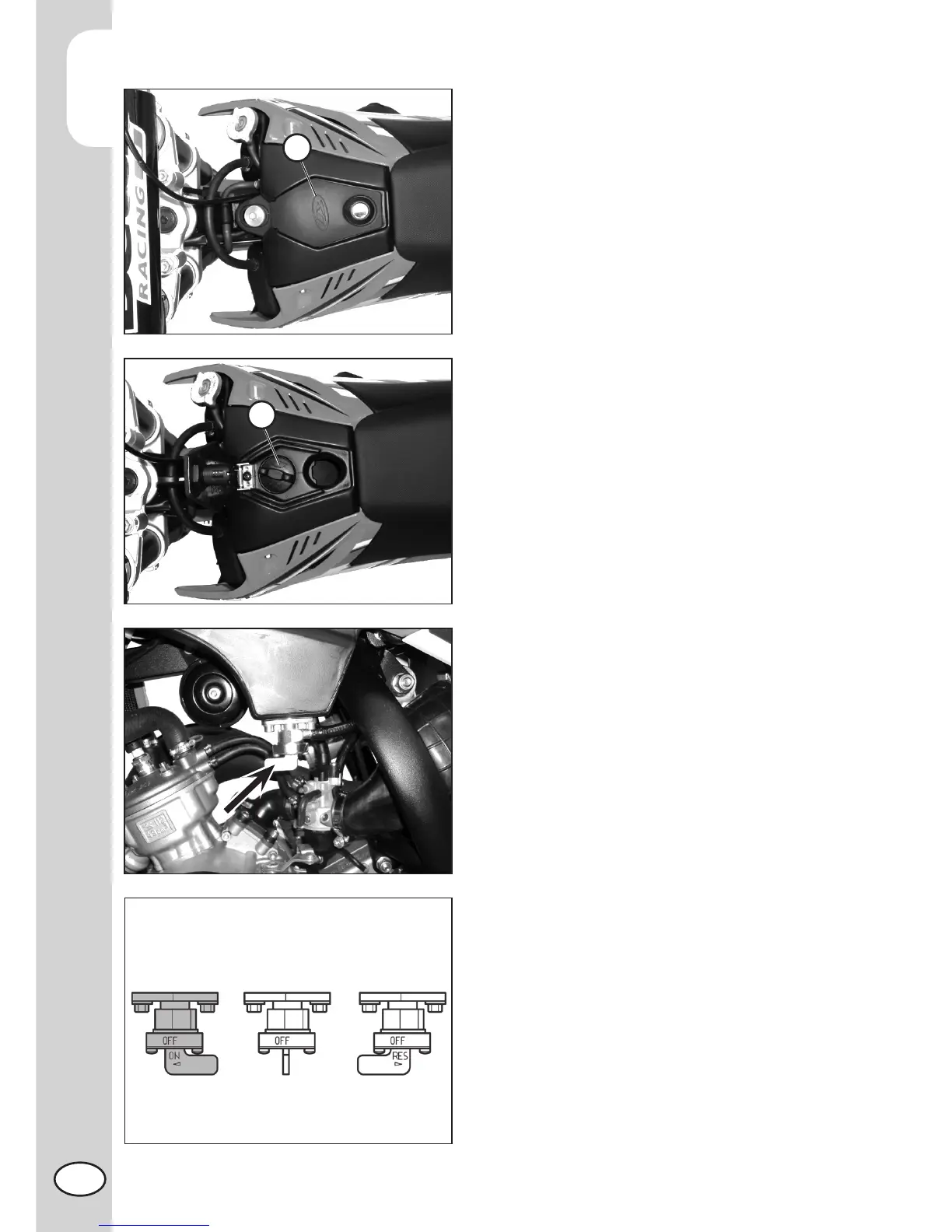

FUEL TANK CAP
The cover A must be unlocked with the ap-
propriate key and lifted in order to access
the fuel tank’s cap.
Remove cap B.
A
B
ON
RES
OFF
FUEL COCK
Fuel cock has three positions:
OFF: fuel supply closed. Fuel cannot pass
from the tank to the carburettor.
ON: fuel supply enabled. Fuel flows from
the tank to the carburettor. The tank empties
until it reaches the reserve level.
RES: reserve fuel supply. Fuel flows from
the tank to the carburettor and the tank
empties completely.
