ADJUSTMENTS
36
GB

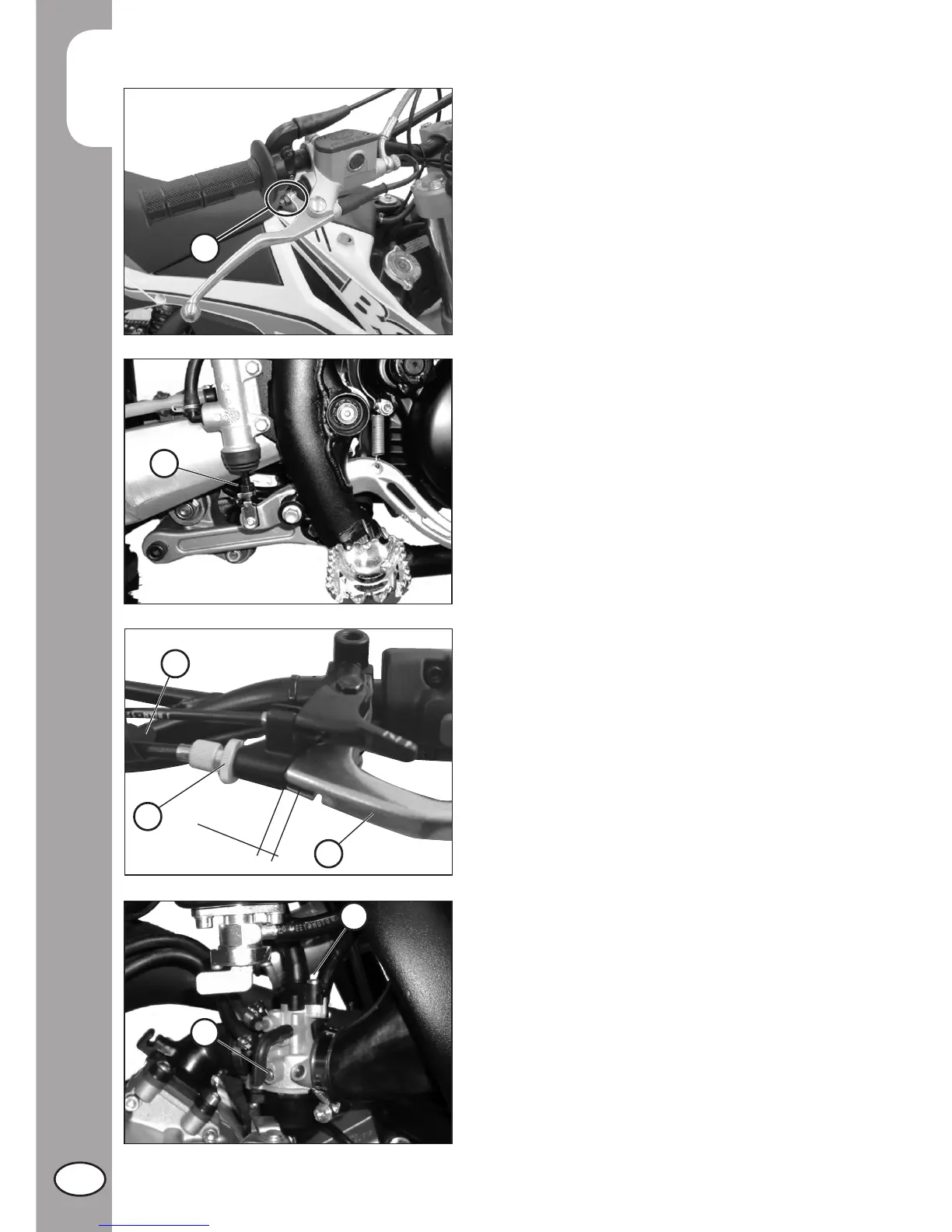

ADJUSTMENT OF CLUTCH
LEVER
Adjust the lever A by means of the reg-
ister B, lift rubber dust cover C and turn
adjuster B.
The lever must have 5 mm of idle stroke.
ADJUSTMENT OF IDLING
SPEED
In order to perform this operation correctly,
we advise you to do it when the engine
is hot, connecting an electric revolution
counter to the spark plug wire. Then use
a screwdriver on register screw A to
calibrate the minimum with 1900 R.P.M.
ADJUSTMENT OF BRAKES
FRONT BRAKE
The front brake is disk type with hydraulic
control.
You can adjust lever height by means of
the register A.
REAR BRAKE
The rear brake is disk type with hydraulic
control.
You may adjust pedal height by means of
register B.
A
B
5 mm
B
A
C
B
A
