4
CHECKS AND MAINTENANCE
49
GB
CHAIN
Checking the drive chain periodically to
ensure longer chain life. Always keep it
lubricated and clean of deposited dirt.
Take special care in preventing the lubri-
cant from coming into contact with the
rear tyre or brake disc, otherwise the tyre
grip and the action of the brake would be
greatly reduced, making it very difficult to
control the vehicle.

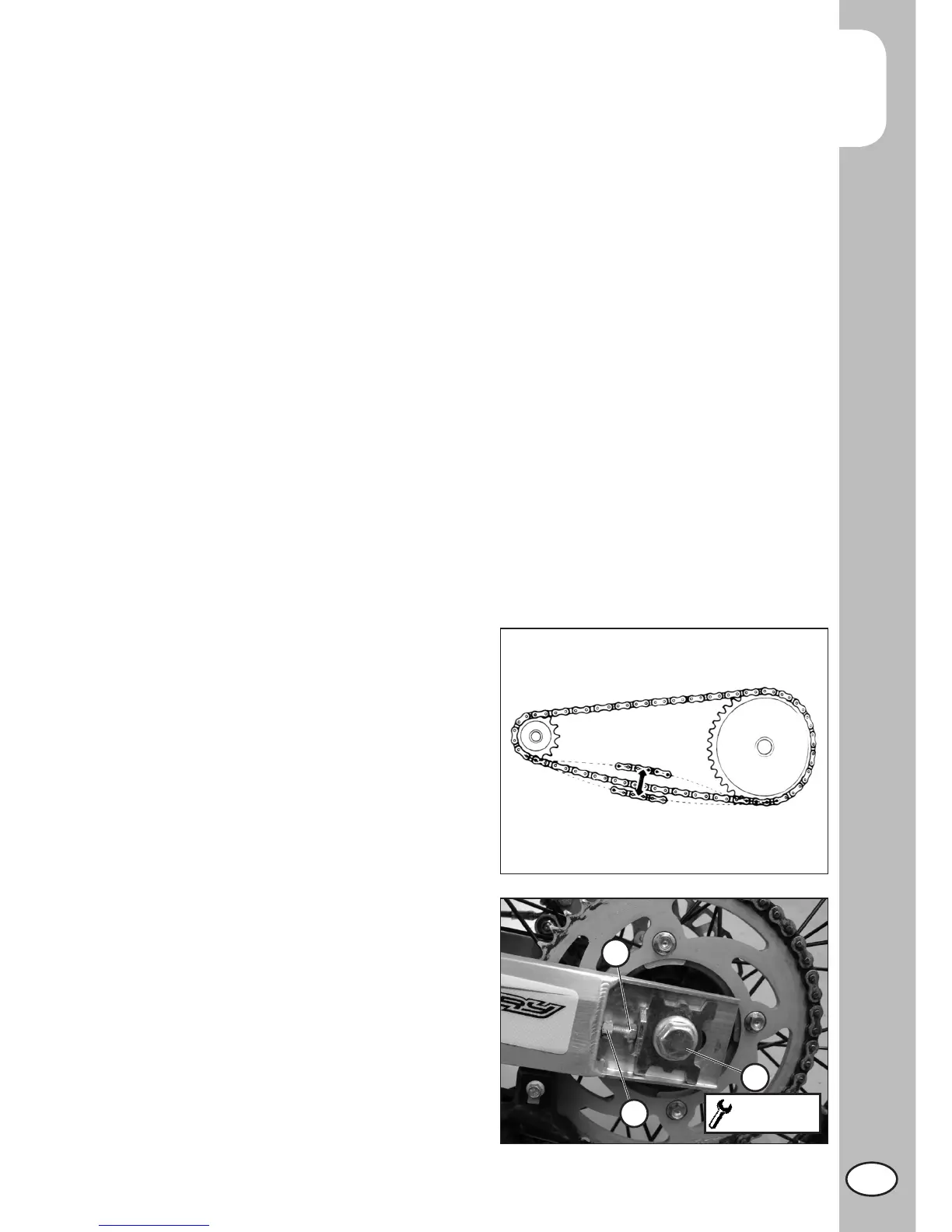

CHECK AND ADJUST
TIGHTENING CHAIN
Checking the drive chain periodically to
ensure longer chain life.
Always keep it lubricated and clean of
deposited dirt.
If play exceeds 20 mm tighten the chain
as follows:
• Loosen the pin 1.
• Loosen counternuts A on either side of the
fork.
• Turn adjusting screws B on either side until
the desired chain tension is obtained.
• Tighten counternuts A on either side of
the fork.
• Tighten the pin 1 to the torque indicated.
20 mm
B
A
C
100Nm
